Запчасти Case 1835C (9-58) - LIFT BRACKETS (09) - CHASSIS/ATTACHMENTS

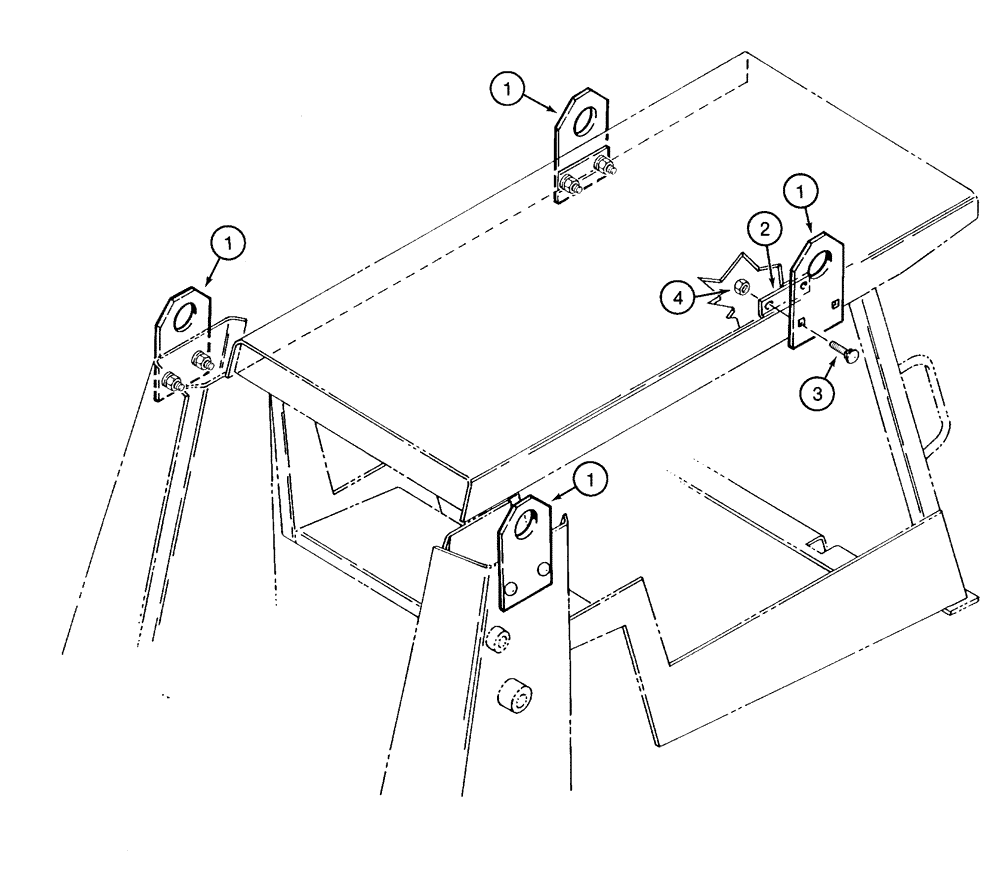

Схема запчастей Case 1835C - (9-58) - LIFT BRACKETS (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

D132975

LIFTING RING

BRACKET lift, 229 mm tall, Replaces: P/N H439135

4шт.

2

D132976

BAR

backup, front lift bracket

2шт.

Part of Lift Bracket Kit, P/N D102001

1шт.

3

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT carriage, 1/2 NC x 1-1/2 inch

8шт.

Part of Lift Bracket Kit, P/N D102001

1шт.

4

230-4218

LOCK NUT,1/2"-13, GA

NUT hex, self-locking, 1/2 inch NC

8шт.

Part of Lift Bracket Kit, P/N D102001

1шт.

D102001

SET

KIT lift bracket, field attachment, with instructions, order form Machinery Price List, Includes: Ref. 2, 3 and 4

1шт.

Выбрано товаров: 8
