Запчасти Case 1835C (9-54) - ROPS - P.I.N. JAF0037367 AND AFTER (09) - CHASSIS/ATTACHMENTS

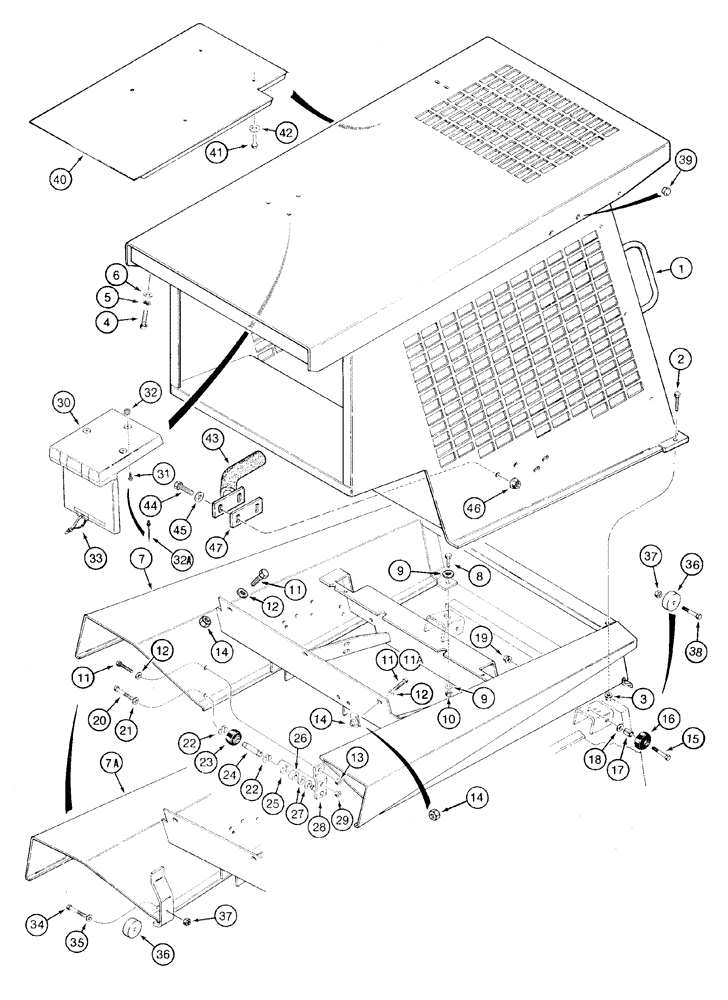

Схема запчастей Case 1835C - (9-54) - ROPS - P.I.N. JAF0037367 AND AFTER (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

H673312

FRAME ASSY

FRAME ROPS, used on models with dual seat bars, no longer available, order Ref. 1, P/N 132853A1

1шт.

1

132853A1

FRAME ASSY

FRAME ROPS, used on models with single and dual seat bars, Replaces: P/N H673312 frame, no longer available, order service kit Ref. 1, P/N 189620A1

1шт.

1

189620A1

KIT ROPS service, includes decals, painted grey, used on models with single and dual seat bars, Replaces: P/N H673312 frame, Replaces: P/N 132853A1 frame, order from Wholegoods

1шт.

2

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch

4шт.

3

231-5146

FLANGE NUT,3/8"-16

4шт.

4

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

6

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

flat, hardened, 17/32 x 1-1/4 x 3/16 inch

2шт.

7

H673550

BODY

POD ROPS frame, Serial Range: -JAF0037682

1шт.

7a

H674356

FRAME

POD ROPS frame, used on models dual seat bars, no longer available, order Ref. 7A, P/N133420A1 Pod, Serial Range: JAF0037682-JAF0130837

1шт.

7b

133420A1

FRAME

POD ROPS frame, used on models with single and dual seat bars, Serial Range: JAF0130838-JAF0150989

1шт.

7c

198510A2

FRAME

POD ROPS frame, not shown, Start Serial: JAF0150990

1шт.

8

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

9

195-533

WASHER,1/2", SAE

flat, 17/32 x 1-1/16 x 3/32 inch

2шт.

10

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

2шт.

11

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, 5/16 NC x 1 inch, if used

1шт.

11

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

2шт.

11a

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

1шт.

12

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

Replaces P/N H426775 11/32" x 11/16" x 1/16", HDN

5шт.

13

230-4215

NUT,5/16"-18, GA

NUT hex, self-locking, 5/16 inch NC

2шт.

14

H346650

NUT

U-type, 5/16 inch NC, if used

3шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC, if used

3шт.

15

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

16

D124083

ROLLER BEARING

ROLLER ROPS support, black rubber, Serial Range: -JAF0037682

2шт.

17

D139837

SPACER

roller, front

2шт.

18

H426775

WASHER

flat, special, hardened, used as a spacer

1шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

2шт.

20

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

hex, 5/16 NC x 2-1/2 inch

2шт.

21

H426775

WASHER

flat, special, hardened

2шт.

22

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

RING retaining

4шт.

23

H435300

WHEEL

ROLLER rear, upper

2шт.

24

H435394

SPACER

roller, rear, upper

2шт.

25

D143415

SNAP RING,0.50” ID, Klipring

RING retaining, rear roller, lower

2шт.

26

D124143

ROLLER

ROPS support, rear, lower

2шт.

27

496-81021

WASHER,0.53" ID x 1" OD x 0.18" Thk

flat, hardened, 17/32 x 1 x 3/16 inch

4шт.

28

H673073

BAR

BRACKET roller mounting, rear

2шт.

29

230-4215

NUT,5/16"-18, GA

NUT hex, self-locking, 5/16 inch NC

2шт.

30

R46464

CASE

BOX operators manual, Replaces: P/N R38893 box

1шт.

31

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

hex, 1/4 NC x 1 inch

3шт.

32

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

3шт.

32a

151-522

RIVET,Pop, 3/16" x .575"

break mandrel, 3/16 x 9/16 inch, used with Ref. 30, P/N R46464, if used

3шт.

33

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

34

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

2шт.

35

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

2шт.

36

H439107

ROLLER

ROPS support, white plastic, Replaces: P/N H437701 roller, Start Serial: JAF0037682

4шт.

37

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.

38

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

hex, 3/8 NC x 2-1/2 inch

2шт.

39

353-405

PLUG,Dome, .562" hole, Nylon

button, 9/16 inch, if used

2шт.

40

H438906

PANEL

HEADLINER ROPS, used on brown models

1шт.

40

179278A1

PANEL

HEADLINER ROPS, used on grey models

1шт.

In the A2 version, there are no bolts. Uses pressure sensitive adhesive.

1шт.

41

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

4шт.

42

D136108

WASHER

special, hardened

4шт.

H674454

SET

KIT service, armrest, with instruction sheet, Includes: Ref. 44 - 17

1шт.

43

NSS

NOT SOLD SEPARAT

ARMREST operator

2шт.

44

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

4шт.

45

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

46

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

4шт.

47

H437790

LARGE PLATE

PLATE mounting

2шт.
