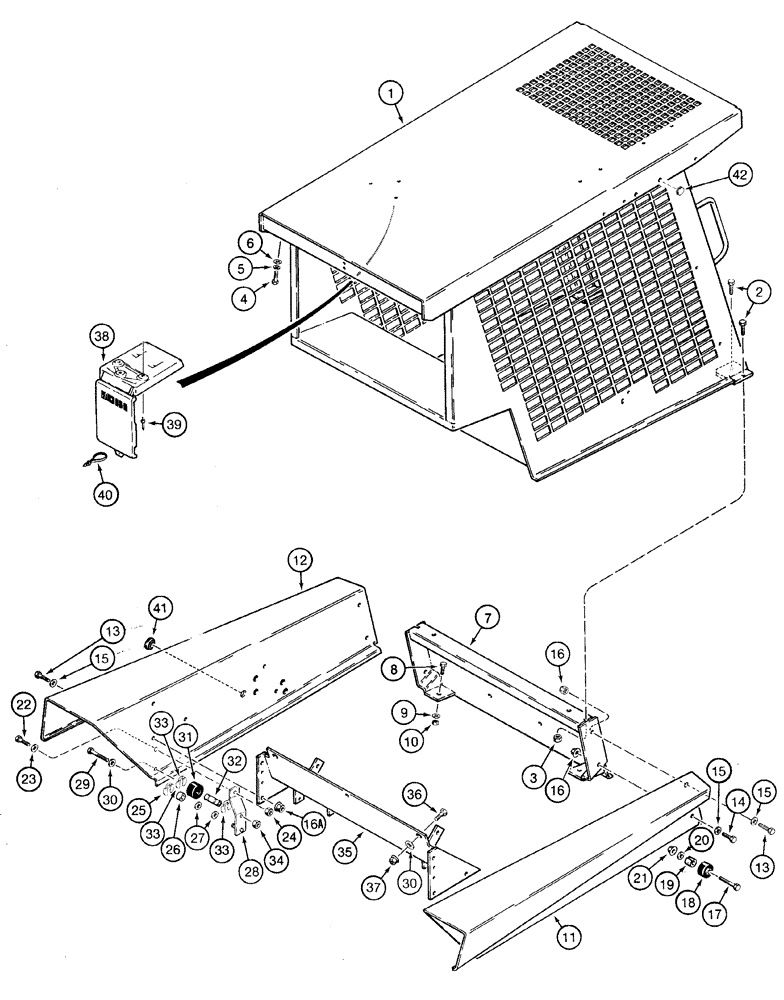

Запчасти Case 1835C (9-52) - ROPS - P.I.N. JAF0013535 THROUGH JAF0037366 (09) - CHASSIS/ATTACHMENTS

1

D139599

TOP

FRAME ROPS, no longer available, order ROPS service kit P/N 189620A1 from Wholegoods; Includes: decals painted grey, brown ROPS no longer available.

1шт.

2

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch

4шт.

3

231-5146

FLANGE NUT,3/8"-16

4шт.

4

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

6

195-533

WASHER,1/2", SAE

flat, 17/32 x 1-1/16 x 3/32 inch

2шт.

7

D133458

GUARD ASSY.

PANEL front support

1шт.

8

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

9

195-533

WASHER,1/2", SAE

flat, 17/32 x 1-1/16 x 3/32 inch

2шт.

10

231-1448

NUT,1/2"-13, GB

hex, self-locking, 1/2 inch NC

2шт.

11

H435494

FENDER ASSY.

FENDER right-hand

1шт.

12

H435493

FENDER ASSY.

FENDER left-hand

1шт.

13

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, 5/16 NC x 1 inch

9шт.

14

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

1шт.

15

H426775

WASHER

flat, special, hardened

10шт.

16

230-4215

NUT,5/16"-18, GA

NUT hex, self-locking, 5/16 inch NC

4шт.

16a

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

6шт.

17

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

hex, 5/16 NC x 2-1/2 inch

2шт.

18

D124083

ROLLER BEARING

ROLLER ROPS support, black rubber, front

2шт.

19

D139837

SPACER

roller, front

2шт.

20

H426775

WASHER

flat, special, hardened, used as spacer

1шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

2шт.

22

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, 5/16 NC x 1 inch

2шт.

23

H426775

WASHER

flat, special, hardened

2шт.

24

230-4215

NUT,5/16"-18, GA

NUT hex, self-locking, 5/16 inch NC

2шт.

25

D143415

SNAP RING,0.50” ID, Klipring

RING retaining, rear roller, lower, Replaces: P/N D95095 ring

2шт.

26

D124143

ROLLER

ROPS support, rear, lower

2шт.

27

496-81021

WASHER,0.53" ID x 1" OD x 0.18" Thk

flat, hardened, 17/32 x 1 x 3/16 inch

4шт.

28

H673073

BAR

BRACKET roller mounting, rear

2шт.

29

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

hex, 5/16 NC x 2-1/4 inch

2шт.

30

H426775

WASHER

flat, special, hardened

5шт.

31

D124529

SPACER,19.5mm ID x 35mm OD x 12mm Thk

brake shaft, rear upper

2шт.

32

H435394

SPACER

roller, rear upper

2шт.

33

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

RING retaining, rear roller, upper, Replaces: P/N D95097 ring

4шт.

34

230-4215

NUT,5/16"-18, GA

NUT hex, self-locking, 5/16 inch NC

2шт.

35

D127271

SUPPORT

seat

1шт.

36

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, 5/16 NC x 1 inch

3шт.

37

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

3шт.

38

R46464

CASE

BOX operators manual

1шт.

39

151-522

RIVET,Pop, 3/16" x .575"

break mandrel, 3/16 x 9/16 inch

3шт.

40

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

41

205-104

HOLE PLUG BUTTON,1"

BUTTON, HOLE PLUG, if used 1"

1шт.

42

353-405

PLUG,Dome, .562" hole, Nylon

button, 9/16 inch, if used

1шт.
