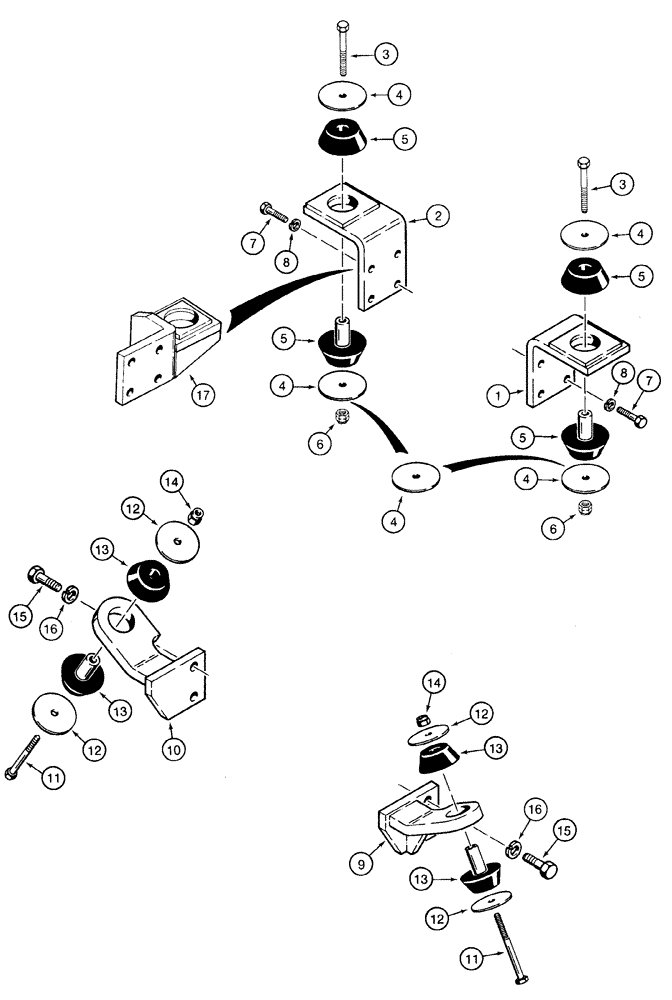

Запчасти Case 1835C (2-14) - ENGINE MOUNTING (02) - ENGINE

1

D138427

BRACKET

engine mount, right-hand front, Serial Range: -JAF0037367

1шт.

2

D138428

BRACKET

engine mount, left-hand front, Serial Range: -JAF0037367

1шт.

3

28418R1

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 8

hex, 3/8 NC x 3-3/4 inch, grade 8

2шт.

4

D138421

WASHER

flat, special, six is used on P.I.N. JAF0037367 and after, Start Serial: JAF0037367

4-6шт.

5

D134105

MOUNTING PARTS

INSULATOR rubber, engine mount, two-piece

2шт.

6

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch

8шт.

8

492-11038

LOCK WASHER,3/8"

8шт.

9

D133940

BRACKET

engine mount, right-hand rear

1шт.

10

D133941

BRACKET

engine mount, left-hand rear

1шт.

11

28418R1

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 8

hex, 3/8 NC x 3-3/4 inch, grade 8

2шт.

12

D138421

WASHER

flat, special

4шт.

13

D134105

MOUNTING PARTS

INSULATOR rubber, engine mount, two-piece

2шт.

14

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

15

614-14040

BOLT,Hex, M14 x 2 x 40mm, Cl 8.8, Full Thd

4шт.

16

492-11056

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

4шт.

17

H673462

BRACKET

engine mount, left-hand front, Start Serial: JAF0037367

1шт.

18

H673463

BRACKET

engine mount, right-hand front, Start Serial: JAF0037367

1шт.
