Запчасти Case 1835C (9-50) - ROPS - PRIOR TO P.I.N. JAF0013535 (09) - CHASSIS/ATTACHMENTS

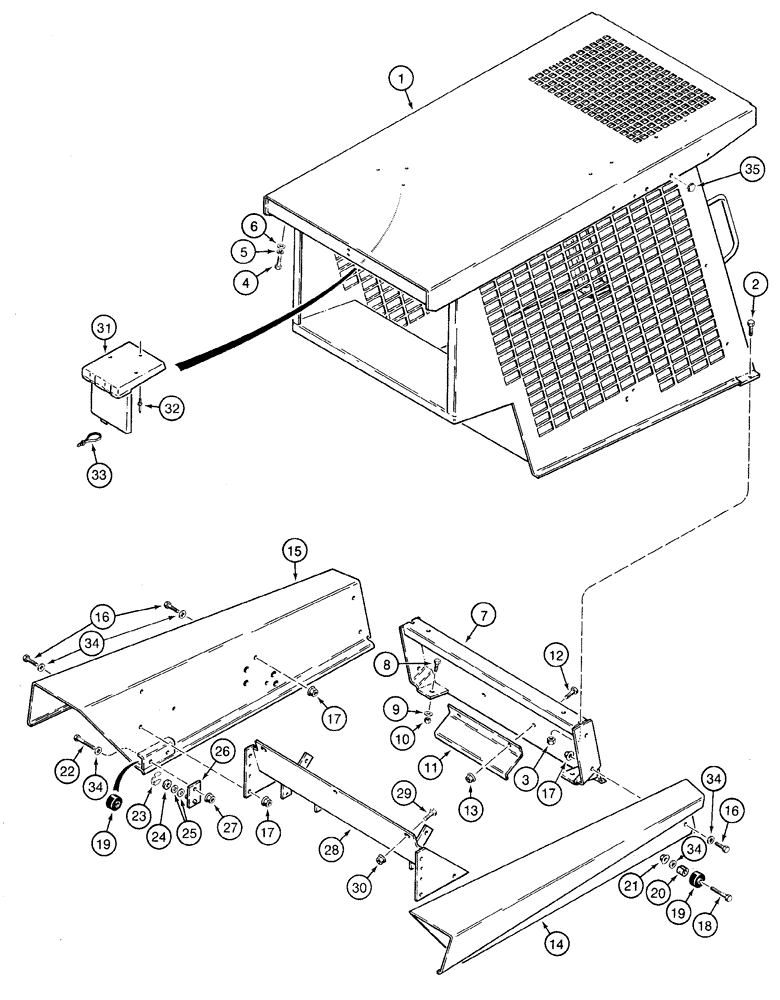

Схема запчастей Case 1835C - (9-50) - ROPS - PRIOR TO P.I.N. JAF0013535 (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

D139599

TOP

FRAME ROPS, no longer available, order Rops service kit P/N 189620A1 from Wholegoods; Includes: decals painted grey; brown Rops no longer available

1шт.

2

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch

4шт.

3

231-5146

FLANGE NUT,3/8"-16

4шт.

4

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

6

195-533

WASHER,1/2", SAE

flat, 17/32 x 1-1/16 x 3/32 inch

2шт.

7

D133458

GUARD ASSY.

PANEL front support

1шт.

8

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

9

195-533

WASHER,1/2", SAE

flat, 17/32 x 1-1/16 x 3/32 inch

2шт.

10

231-1448

NUT,1/2"-13, GB

hex, self-locking, 1/2 inch NC

2шт.

11

D126892

BRACKET

GUARD foot, if used, replacement floor plate includes welded-on guards, see Figure 9- 08, Ref. 2 or 3

1шт.

12

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, 5/16 NC x 1 inch, if used

2шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC, if used

2шт.

14

D128739

FENDER ASSY.

FENDER right-hand

1шт.

15

D128741

FENDER ASSY.

FENDER left-hand

1шт.

16

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

14шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

14шт.

18

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

hex, 5/16 NC x 2-1/2 inch

2шт.

19

D124083

ROLLER BEARING

ROLLER ROPS support, black rubber

4шт.

20

D139837

SPACER

roller, front

2шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

2шт.

22

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

23

D143415

SNAP RING,0.50” ID, Klipring

RING retaining, rear, Replaces: P/N D95095 ring

2шт.

24

D124143

ROLLER

ROPS support, rear

2шт.

25

496-81021

WASHER,0.53" ID x 1" OD x 0.18" Thk

flat, hardened, 17/32 x 1 x 3/16 inch

4шт.

26

D127871

STRIP

BLOCK roller, rear

2шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

2шт.

28

D127271

SUPPORT

seat

1шт.

29

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, 5/16 NC x 1 inch

3шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

3шт.

31

R46464

CASE

BOX operators manual

1шт.

32

151-522

RIVET,Pop, 3/16" x .575"

break mandrel, 3/16 x 9/16 inch

3шт.

33

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

34

H426775

WASHER

flat, special, hardened

16шт.

35

353-405

PLUG,Dome, .562" hole, Nylon

button, 9/16 inch, if used

2шт.

Выбрано товаров: 35
