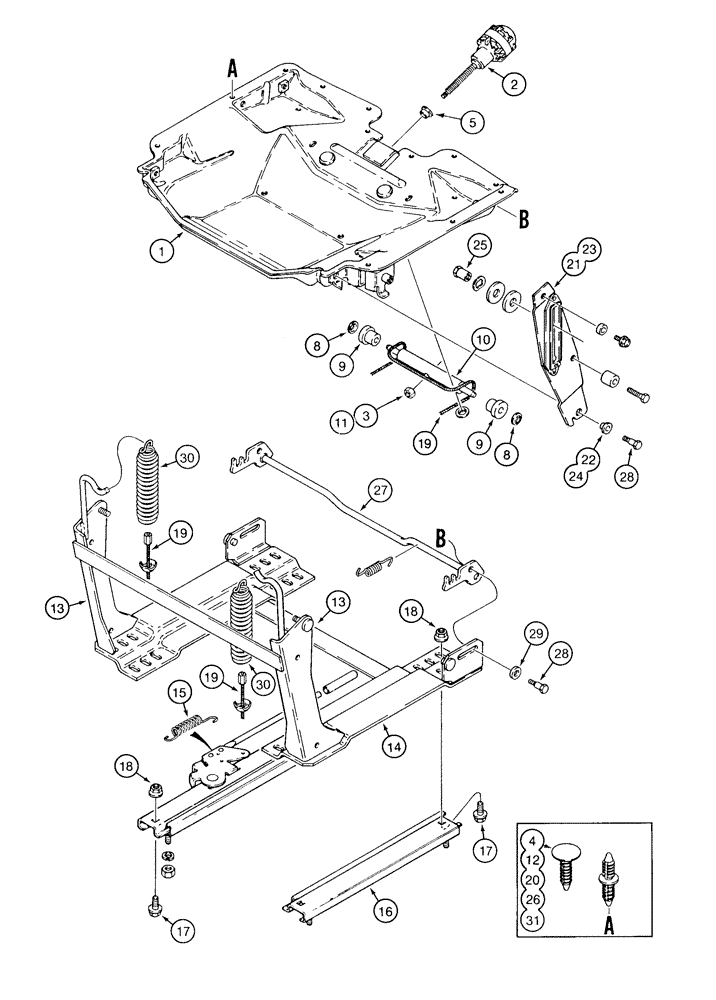

Запчасти Case 1835C (9-46) - DELUXE OPERATORS SEAT, BASE AND ADJUSTING PARTS (09) - CHASSIS/ATTACHMENTS

D129790

SEAT

ASSEMBLY, operators, deluxe, brown vinyl, also includes cushions and shell on Figure 9-44, Includes: Ref. 1 - 31

1шт.

178764A1

SEAT

ASSEMBLY, operators, deluxe, gray vinyl, also includes cushions and shell on Figure 9-44, Includes: Ref. 1 - 31

1шт.

N13704

PAN ASSY.

BASE ASSEMBLY, seat, Includes: Ref. 1

1шт.

1

NSS

NOT SOLD SEPARAT

BASE seat

1шт.

N13705

SET OF PARTS

KIT knob, with instruction sheet, Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

KNOB seat

1шт.

3

131-1280

JAM NUT,Jam, 1/4"-20

NUT hex, jam, self-locking, 1/4 inch NC

1шт.

4

N13703

CLIP,ELECTRICAL

CLIP backrest shell, retaining

2шт.

5

N9241

BUSHING

seat base

1шт.

8

131-435

PUSH-ON NUT,Push, 3/8"

NUT push-on type, 3/8 inch

2шт.

9

N8495

RETAINER

springs, seat adjuster

2шт.

N13730

SET OF PARTS

KIT shaft, cable support, with instruction sheet, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

SHAFT cable support

1шт.

11

131-1280

JAM NUT,Jam, 1/4"-20

NUT hex, jam, self-locking, 1/4 inch NC

1шт.

12

N13703

CLIP,ELECTRICAL

CLIP backrest shell, retaining

2шт.

N13700

FRAME ASSY

FRAME ASSEMBLY seat, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

FRAME seat

1шт.

14

D59695

SUPPORT

ADJUSTER seat, Replaces: P/N N13701 adjuster, Includes: Ref. 15 - 18

1шт.

15

L35503

SPRING

adjuster

1шт.

16

N13607

ADJUSTER

SLIDE seat

1шт.

17

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

4шт.

18

425-285

FLANGE NUT,Flg, 5/16"-18, G5

hex flange, 5/16 inch NC

4шт.

N13702

SET OF PARTS

KIT cable, with instruction sheet, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

CABLE tension, operator weight

1шт.

20

N13703

CLIP,ELECTRICAL

CLIP backrest shell, retaining

2шт.

N13725

SET OF PARTS

KIT backrest support, with instruction sheet, Includes: Ref. 21 - 26

1шт.

21

NSS

NOT SOLD SEPARAT

SUPPORT backrest, left-hand

1шт.

22

N13754

BUSHING

support

1шт.

23

NSS

NOT SOLD SEPARAT

SUPPORT backrest, right-hand

1шт.

24

N13754

BUSHING

support

1шт.

25

N13720

NUT

special

2шт.

26

N13703

CLIP,ELECTRICAL

CLIP backrest shell, retaining

2шт.

N13726

SET OF PARTS

KIT latch, backrest tilt, with instruction sheet, Includes: Ref. 27 - 29

1шт.

27

NSS

NOT SOLD SEPARAT

LATCH backrest tilt

1шт.

28

N13716

BOLT

BOLT shoulder, special

2шт.

29

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

2шт.

N13728

SET OF PARTS

KIT extension spring, with instruction sheet, Includes: Ref. 30 and 31

2шт.

30

NSS

NOT SOLD SEPARAT

SPRING extension

1шт.

31

N13703

CLIP,ELECTRICAL

CLIP backrest shell, retaining

1шт.
