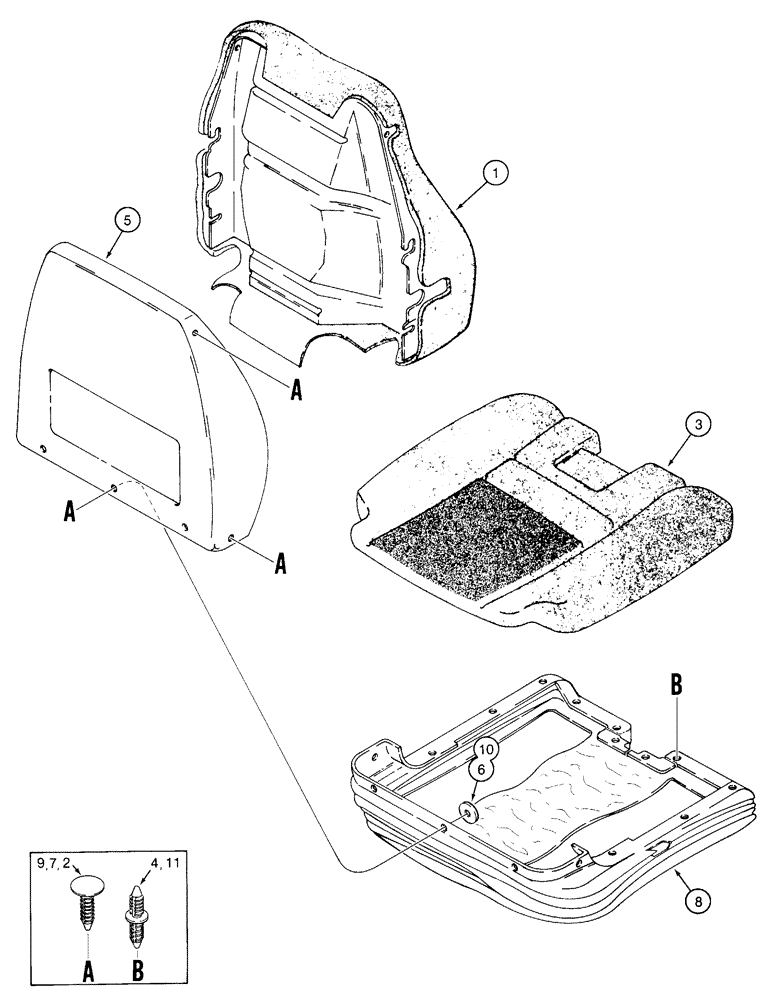

Запчасти Case 1835C (9-44) - DELUXE OPERATORS SEAT, CUSHIONS AND SHELL (09) - CHASSIS/ATTACHMENTS

D129790

SEAT

ASSEMBLY, operators, deluxe, brown vinyl, also includes mechanical parts on Figure 9-46 - 9-48, Includes: Ref. 1 - 11

1шт.

178764A1

SEAT

ASSEMBLY, operators, deluxe, gray vinyl, also includes mechanical parts on Figure 9-46 - 9-48, Includes: Ref. 1 - 11

1шт.

N13724

SET OF PARTS

KIT backrest cushion, brown, with instruction sheet, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

CUSHION backrest

1шт.

P/N 308307A1 Replaces: P/N 178764A1

1шт.

2

N13703

CLIP,ELECTRICAL

CLIP backrest shell, retaining

2шт.

N13723

SET OF PARTS

KIT seat cushion, brown, with instruction sheet, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

CUSHION seat

1шт.

4

N13712

CLIP,ELECTRICAL

CLIP rubber cover, retaining

12шт.

N13729

SET OF PARTS

KIT shell, backrest, with instruction sheet, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

SHELL backrest

1шт.

6

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

5шт.

7

N13703

CLIP,ELECTRICAL

CLIP backrest shell, retaining

7шт.

N13727

SET

KIT rubber cover, lower seat, with instruction sheet, Includes: Ref. 8 - 11

1шт.

8

NSS

NOT SOLD SEPARAT

COVER lower seat

1шт.

9

N13703

CLIP,ELECTRICAL

CLIP backrest shell, retaining

5шт.

10

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

5шт.

11

N13712

CLIP,ELECTRICAL

CLIP rubber cover, retaining

12шт.
