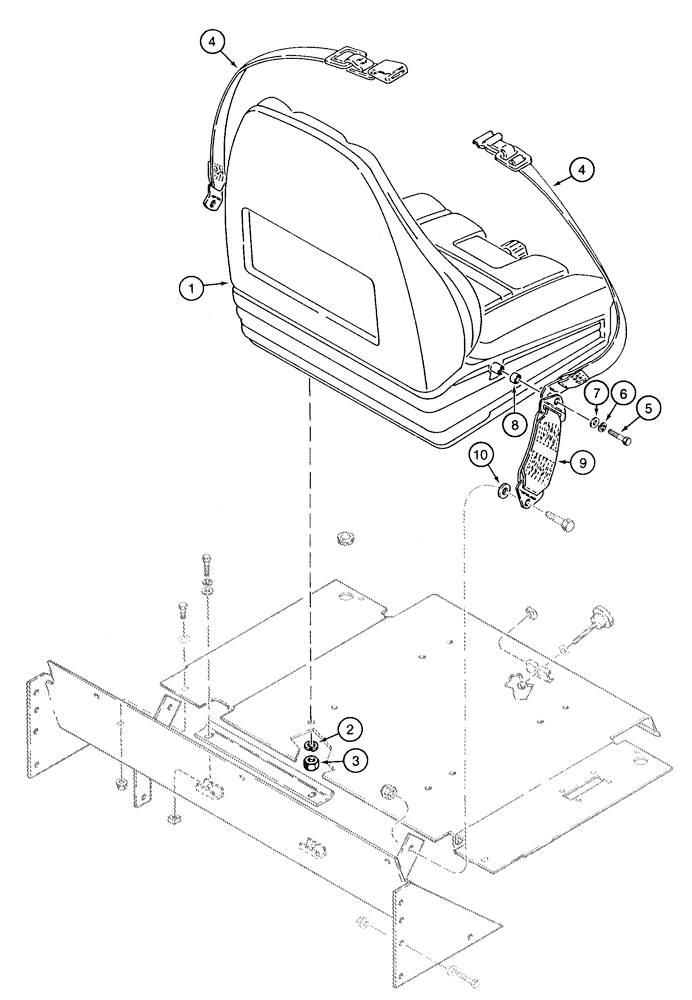

Запчасти Case 1835C (9-40) - DELUXE SEAT MOUNTING AND SEAT BELTS (09) - CHASSIS/ATTACHMENTS

1

D129790

SEAT

ASSEMBLY, operators, deluxe, brown vinyl, see Figure 9-44 - 9-48

1шт.

1

178764A1

SEAT

ASSEMBLY, operators, deluxe, gray vinyl, see Figure 9-44 - 9-48

1шт.

P/N 308307A1 Replaces: P/N 178764A1

1шт.

2

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

3

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

4

H438265

SAFETY BELT

SAFETY BELT, Non-retractable, 76 mm/3 inch wide

1шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch

2шт.

6

492-11038

LOCK WASHER,3/8"

2шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

2шт.

8

D34242

SPACER

seat, belt mounting

2шт.

9

D127382

SAFETY BELT

SAFETY BELT, Support to seat, 238 mm (9-3/8 inch) long

2шт.

10

495-21069

WASHER,5/8"

flat, 11/16 x 1-3/4 x 9/64 inch

2шт.
