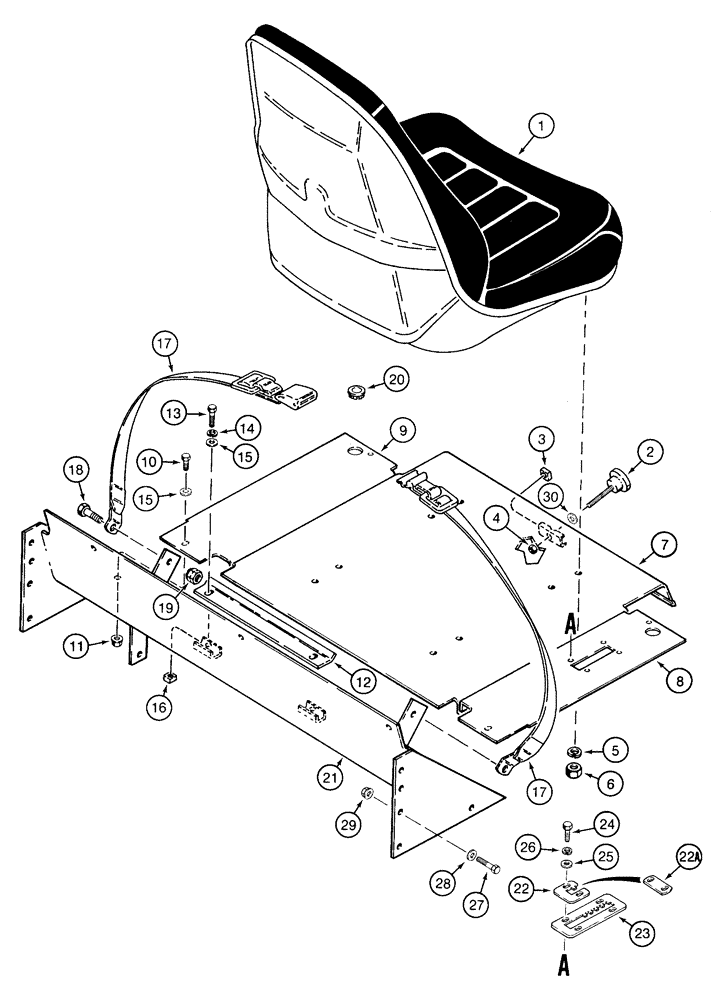

Запчасти Case 1835C (9-36) - STANDARD SEAT MOUNTING AND SEAT BELTS PRIOR TO P.I.N. JAF0037367 (09) - CHASSIS/ATTACHMENTS

1

D124515

SEAT ASSY.

SEAT ASSEMBLY, operators, brown vinyl, molded shell, see Figure 9-42

1шт.

1

178763A1

SEAT

ASSEMBLY, operators, gray vinyl, molded shell, see Figure 9-42

1шт.

2

D133068

KNOB

seat adjusting

1шт.

3

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

1шт.

4

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

5

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

6

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

7

H435514

PLATE

seat mounting, Replaces: P/N D133048 plate

1шт.

8

H672916

COVER ASSY

PANEL closure, right-hand

1шт.

9

D127315

COVER

PANEL closure, left-hand

1шт.

10

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

4шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

4шт.

12

D72913

CLIP

STRIP seat mounting

1шт.

13

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, 5/16 NC x 1 inch

2шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

15

H426775

WASHER

flat, special, hardened

4шт.

16

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

square, 5/16 inch NC

2шт.

17

D133868

SAFETY BELT ,2.00" W

If used 2.00" W

1шт.

17

H438265

SAFETY BELT

SAFETY BELT, Non-retractable, 76 mm/3 inch wide, If used

1шт.

18

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

19

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

2шт.

20

F64486

GROMMET

BUSHING snap, 3/4 inch ID

2шт.

21

D127271

SUPPORT

seat

1шт.

22

H435208

LARGE PLATE

PLATE throttle stop, models with gasoline engine

1шт.

22a

H435241

PLATE

throttle stop, models with diesel engine

1шт.

23

H435207

LARGE PLATE

PLATE throttle

1шт.

24

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

hex, 1/4 NC x 3/4 inch

4шт.

25

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

26

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

27

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, 5/16 NC x 1 inch

6шт.

28

H426775

WASHER

flat, special, hardened

6шт.

29

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

6шт.

30

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.
