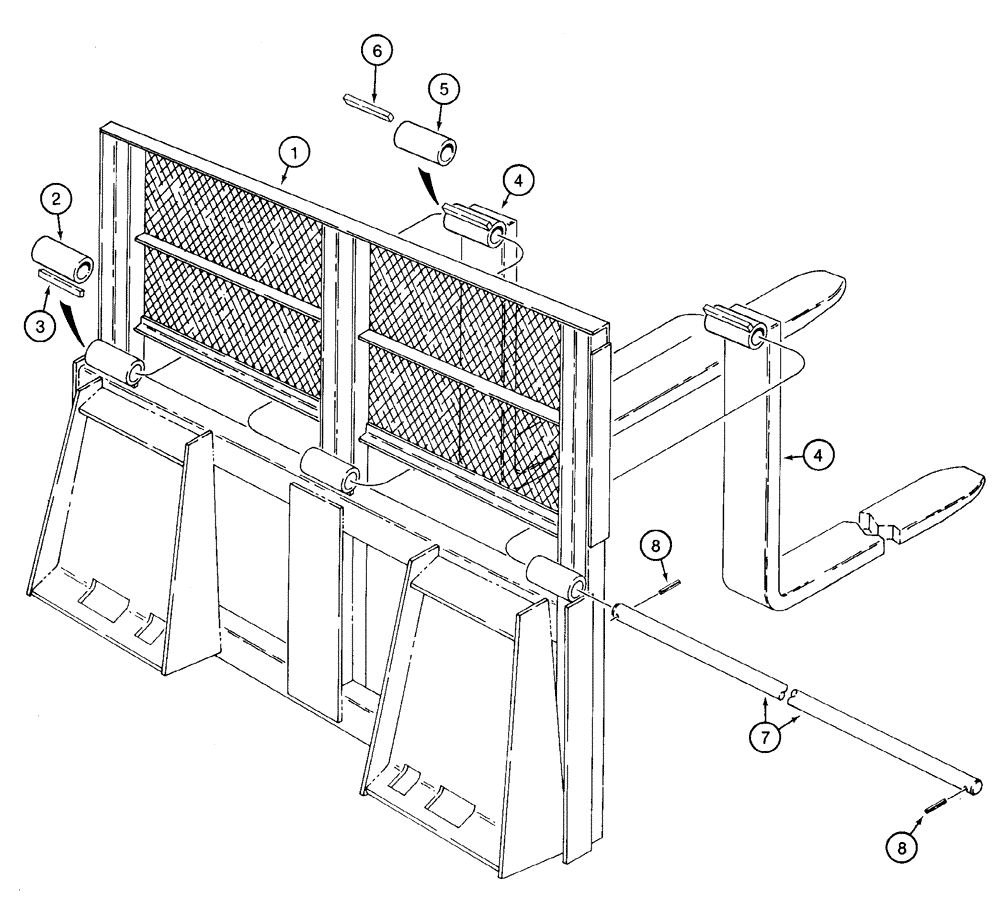

Запчасти Case 1835C (9-32) - PALLET FORK, BRICK GUARD AND FRAME - MODELS WITH CASE COUPLER (09) - CHASSIS/ATTACHMENTS

1

H673629

FRAME

pallet fork, 42 inch, with brick guard, Includes: Ref. 2 and 3

1шт.

2

T41518

BUSHING

fork mounting rod

3шт.

3

T40765

SPACER

, Serial Range: bushing-frame

3шт.

4

D77683

FORK

pallet, 36 inch, Includes: Ref. 5 and 6

2шт.

5

T41518

BUSHING

fork mounting rod

1шт.

6

H438017

STOP

SPACER fork bushing

1шт.

4

H673833

FORK

pallet, 42 inch, Includes: Ref. 5 and 6

2шт.

5

T41518

BUSHING

fork mounting rod

1шт.

6

H438017

STOP

SPACER fork bushing

1шт.

7

T41522

ROD

fork mounting

1шт.

8

38-11632

LOCK PIN,1/4" x 2", Slotted

PIN, LOCK, 1/4" x 2", Slotted

2шт.

9

251734A1

DECAL

capacity, pallet fork, not shown

1шт.
