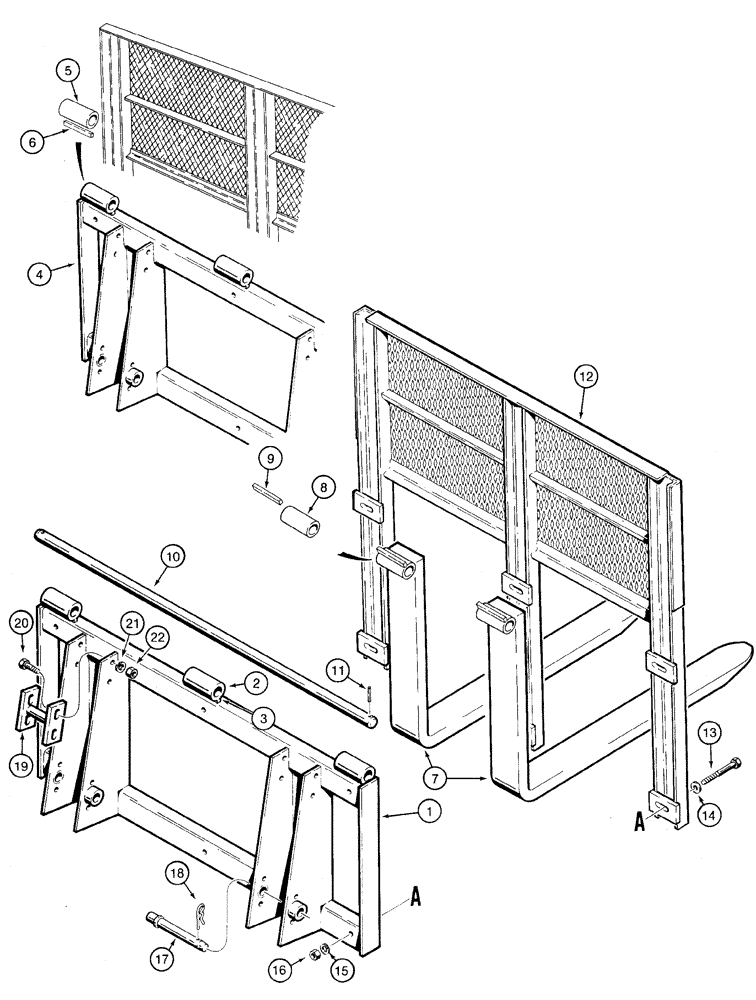

Запчасти Case 1835C (9-30) - PALLET FORK , BRICK GUARD, AND LOADER ATTACHMENT BAR (09) - CHASSIS/ATTACHMENTS

1

D61679

FRAME

pallet fork, 36 inch, without brick guard, Includes: Ref. 2 and 3

1шт.

2

T41518

BUSHING

fork mounting rod

3шт.

3

T40765

SPACER

, Serial Range: bushing-frame

3шт.

4

H673797

FRAME

pallet fork, 42 inch, with brick guard, Includes: Ref. 5 and 6

1шт.

5

T41518

BUSHING

fork mounting rod

3шт.

6

T40765

SPACER

, Serial Range: bushing-frame

3шт.

7

D77683

FORK

pallet, 36 inch, Includes: Ref. 8 and 9

2шт.

8

T41518

BUSHING

fork mounting rod

1шт.

9

H438017

STOP

SPACER fork bushing

1шт.

7

H673833

FORK

pallet, 42 inch, Includes: Ref. 8 and 9

2шт.

8

T41518

BUSHING

fork mounting rod

1шт.

9

H438017

STOP

SPACER fork bushing

1шт.

10

T41522

ROD

fork mounting

1шт.

11

38-11632

LOCK PIN,1/4" x 2", Slotted

PIN, LOCK, 1/4" x 2", Slotted

2шт.

12

REF

INSTRUCTION

GUARD brick, bolt on, machinery item, order from Machine Price List

1шт.

13

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

hex, 1/2 NC x 5 inch

6шт.

14

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 7/64 inch

6шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

16

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

17

D132172

PIN

lower, pallet fork frame to loader arm, loader attachment bar monting

2шт.

18

136-162

HAIR PIN COTTER,Int, 1/2" x .250"

PIN cotter, hair, 1/2 x 3-1/4 inch,loader attacment bar mounting

2шт.

19

D61308

PIN

BRACKET upper, loader attachment bar mounting

2шт.

20

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

hex, 1/2 NC x 1-1/4 inch, loader attachment bar mounting

8шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Loader attachment bar mounting 1/2"

8шт.

22

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Loader attachment bar mounting 1/2"-13, G5

8шт.

23

251734A1

DECAL

capacity, pallet fork, not shown, see Figure 9-62, loader attachment bar mounting

1шт.
