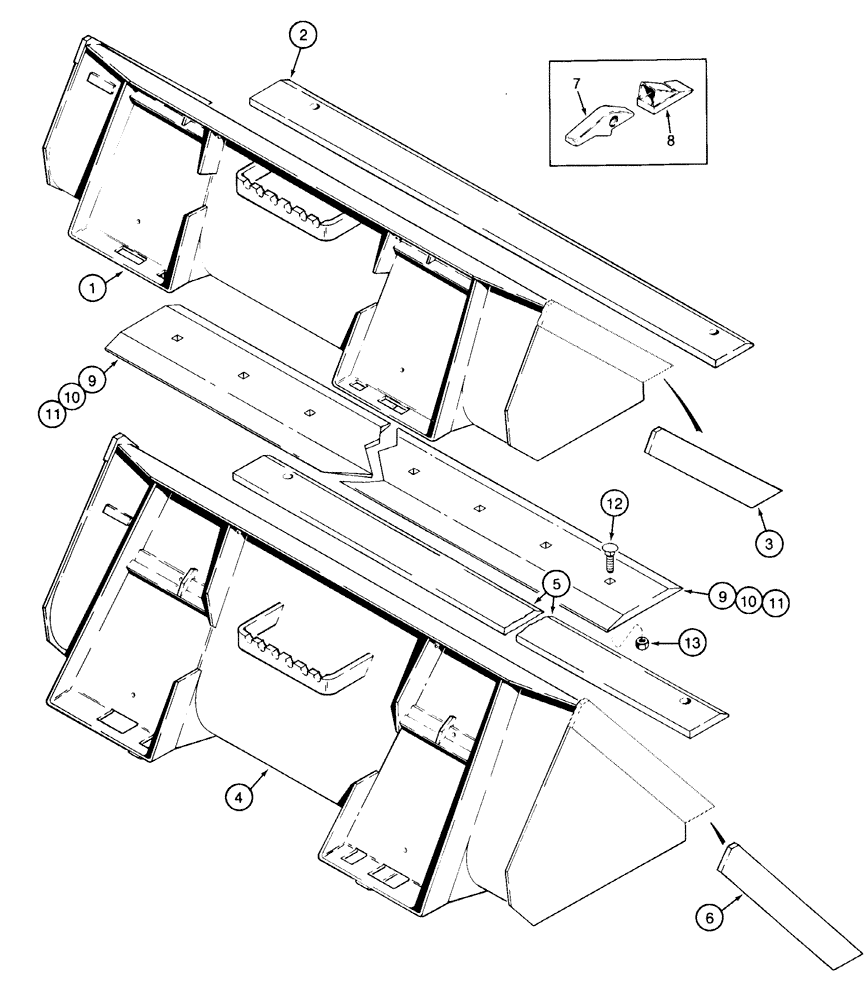

Запчасти Case 1835C (9-20) - BUCKETS 152 MM (6 INCH) STRAIGHT CUTTING EDGE AND SERRATED STEP (09) - CHASSIS/ATTACHMENTS

H674860

BUCKET

ASSEMBLY, dirt, 1372 mm/54 inch wide, order from Machinery Price List, Includes: 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET dirt, 1372 mm/54 inch wide

1шт.

2

H438890

EDGE, CUTTING

EDGE cutting, straight, 152 mm/6 inch wide, Dirt bucket

1шт.

3

H438259

EDGE

side cutting, Dirt bucket

2шт.

H674861

BUCKET

ASSEMBLY, dirt, 1600 mm/63 inch wide, order from Machinery Price List, Inlcudes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET dirt, 1600 mm/63 inch wide

1шт.

2

H438542

EDGE, CUTTING

EDGE cutting, straight, bucket, 152 mm/6 inch wide

1шт.

3

H438259

EDGE

side cutting, bucket

2шт.

H674884

BUCKET

ASSEMBLY, utility, 1372 mm/54 inch wide, order from Machinery Price List, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

BUCKET utility, 1372 mm/54 inch wide

1шт.

5

H438890

EDGE, CUTTING

EDGE cutting, straight, 152 mm/6 inch wide, Utility bucket

1шт.

6

H438927

EDGE

side cutting, Utility bucket

2шт.

H674885

BUCKET

ASSEMBLY, utility, 1600 mm/63 inch wide, order from Machinery Price List, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

BUCKET utility, 1600 mm/63 inch wide

1шт.

5

H438542

EDGE, CUTTING

EDGE utting, straight, 152 mm/6 inch wide, Utility bucket

1шт.

6

H438927

EDGE

side cutting, Utiliy bucket

2шт.

H674886

BUCKET

ASSEMBLY, utility, 1854 mm/73 inch wide, order from Machinery Price List, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

BUCKET utility, 1854 mm/73 inch wide

1шт.

5

H438919

EDGE, CUTTING

EDGE cutting, straight, 152 mm/6 inch wide, Utiliy bucket

1шт.

6

H438927

EDGE

side cutting, Utility bucket

2шт.

D127919

TOOTH

ASSEMBLY, bucket, used only on dirt buckets with a 152 mm/6 inch cutting edge, no longer available, order component parts, Includes: Ref. 7 and 8, Bucket teeth

8шт.

7

D127918

SHANK, BUCKET TOOTH

SHANK bucket tooth, for use with 6 inch cutting edge, Bucket teeth

1шт.

8

T41166

TOOTH

POINT tooth, Bucket teeth

1шт.

9

H439027

EDGE, CUTTING

EDGE cutting, bucket, 152 mm/6 inch wide, used with 1372 mm/54 inch buckets only, Includes: Ref. 9 - 13Optional bolt-on reversible cutting edges

1шт.

10

H439028

EDGE, CUTTING

EDGE cutting, bucket, 152 mm/6 inch wide, used with 1600 mm/63 inch buckets only, Optional bolt-on reversible cutting edges

1шт.

11

H439029

EDGE, CUTTING

EDGE cutting, bucket, 152 mm/6 inch wide, used with 1854 mm/73 inch buckets only, Optional bolt-on reversible cutting edges

1шт.

12

420-21036

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 8

BOLT plow, 5/8 NC x 2-1/4 inch, grade 8, Optional bolt-on reversible cutting edges

9-12шт.

13

329-1010

NUT,5/8"-11, G8

Optional bolt-on reversible cutting edges 5/8"-11, G8

9-12шт.
