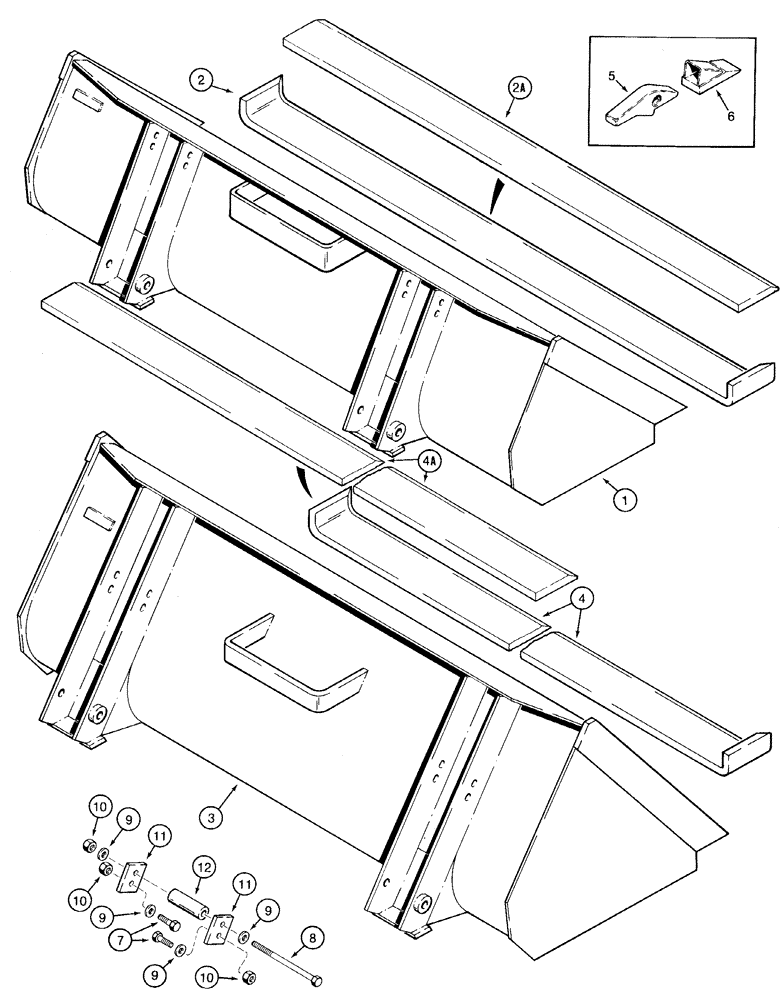

Запчасти Case 1835C (9-16) - BUCKETS 152 MM (6 INCH) CUTTING EDGE (09) - CHASSIS/ATTACHMENTS

H673612

BUCKET ASSEMBLY, dirt, 1372 mm/54 inch wide, order from Machinery Price List, Includes: Ref. 1 - 2A

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET dirt, 1372 mm/54 inch wide

1шт.

2

D126523

EDGE, CUTTING

EDGE cutting, formed, 152 mm/6 inch wide, if used, Dirt bucket

1шт.

2a

H438890

EDGE, CUTTING

EDGE cutting, straight, 152 mm/6 inch wide, if used, Dirt bucket

1шт.

H673613

BUCKET

ASSEMBLY, dirt, 1600 mm/63 inch wide, order from Machinery Price List, Includes: Ref. 1 - 2A

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET dirt, 1600 mm/63 inch wide

1шт.

2

D124797

EDGE, CUTTING

EDGE cutting, formed, 152 mm/6 inch wide, if used, Dirt bucket

1шт.

2a

H438542

EDGE, CUTTING

EDGE cutting, straight, 152 mm/6 inch wide, if used, Dirt bucket

1шт.

H673616

BUCKET ASSEMBLY, utility, 1372 mm/54 inch wide, order from Machinery Price List, Includes: Ref. 3 - 4A

1шт.

3

NSS

NOT SOLD SEPARAT

BUCKET utility, 1372 mm/54 inch wide

1шт.

4

D126523

EDGE, CUTTING

EDGE cutting, formed, 152 mm/6 inch wide, if used, Utility bucket

1шт.

4a

H438890

EDGE, CUTTING

EDGE cutting, straight, 152 mm/6 inch wide, if used, Utility bucket

1шт.

H673617

BUCKET ASSEMBLY, utility, 1600 mm/63 inch wide, order from Machinery Price List, Includes: Ref. 3 - 4A

1шт.

3

NSS

NOT SOLD SEPARAT

BUCKET utility, 1600 mm/63 inch wide

1шт.

4

D124797

EDGE, CUTTING

EDGE cutting, formed, 152 mm/6 inch wide, if used, Utility bucket

1шт.

4a

H438542

EDGE, CUTTING

EDGE cutting, straight, 152 mm/6 inch wide, if used, Utility bucket

1шт.

H673618

BUCKET ASSEMBLY, utility, 1854 mm/73 inch wide, order from Machinery Price List, Includes: Ref. 3 - 4

1шт.

3

NSS

NOT SOLD SEPARAT

BUCKET utility, 1854 mm/73 inch wide

1шт.

4

D125644

EDGE, CUTTING

EDGE cutting, formed, 152 mm/6 inch wide, if used, Utility bucket

1шт.

4a

H438919

EDGE, CUTTING

EDGE cutting, straight, 152 mm/6 inch wide, if used, Utility bucket

1шт.

D127919

TOOTH

ASSEMBLY, bucket, used only on dirt buckets with a 152 mm/6 inch cutting edge, no longer available, order component parts separately, Includes Ref. 5 and 6, Mounting parts, bucket teeth and bucket mounting parts

8шт.

5

D127918

SHANK, BUCKET TOOTH

SHANK bucket tooth, Tooth assembly and mounting parts

1шт.

6

T41166

TOOTH

POINT tooth, Tooth assembly and mounting parts

1шт.

7

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8, Tooth assembly and mounting parts

4шт.

8

426-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 8

hex, 5/8 NC x 6-1/2 inch, grade 8, Tooth assembly and mounting parts

2шт.

9

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER flat, special, hardened, Tooth assembly and mounting parts

8шт.

10

429-1010

NUT,5/8"-11, G8

Tooth assembly and mounting parts 5/8"-11, G8

8шт.

11

H436093

PLATE

BRACKET mounting, Tooth assembly and mounting parts

4шт.

12

H436092

PIN,25.4mm OD x 115.25mm L

SLEEVE bolt, Tooth assembly and mounting parts

2шт.
