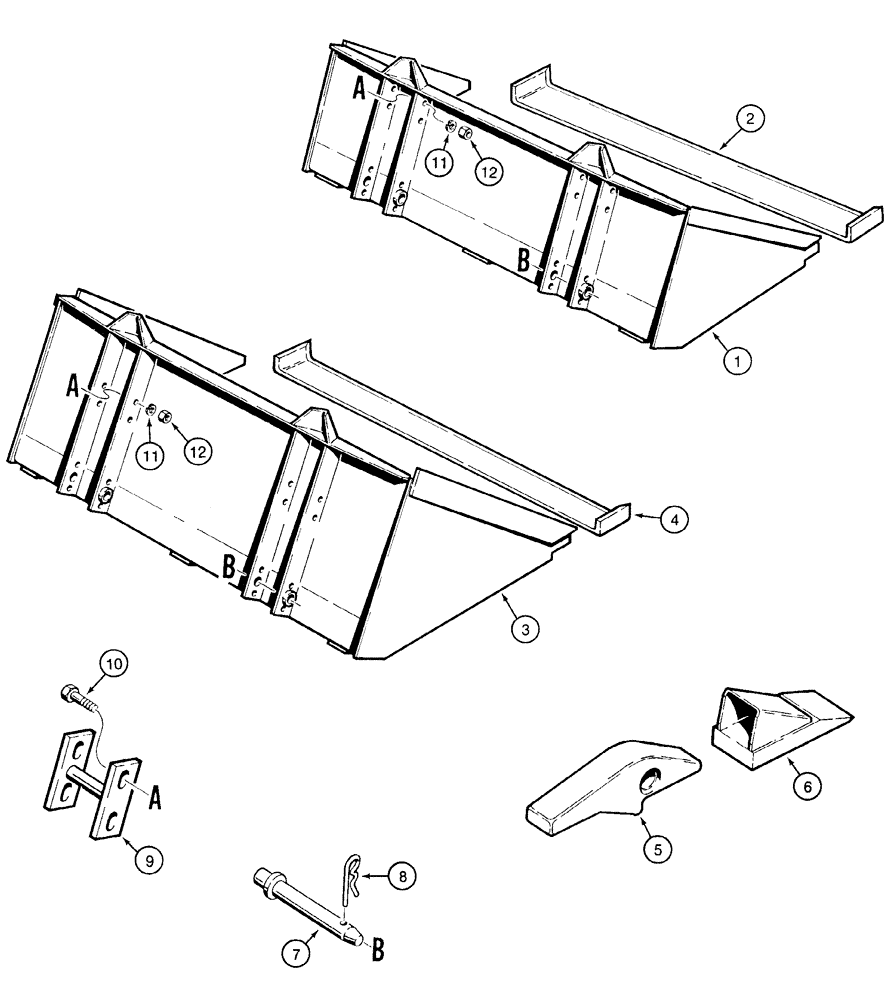

Запчасти Case 1835C (9-14) - BUCKETS 152 MM (6 INCH) CUTTING EDGE (09) - CHASSIS/ATTACHMENTS

D102694

BUCKET dirt, 1372 mm/54 inch wide, uses 152 mm/6 inch cutting edge, order from Machinery Price List

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET dirt, 1732 mm/54 inch wide

1шт.

2

D126523

EDGE, CUTTING

EDGE cutting, formed, bucket, 152 mm/6 inch wide, Dirt bucket

1шт.

D102695

BUCKET dirt, 1524 mm/60 inch wide, uses 152 mm/6 inch cutting edge, order from Machinery Price List

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET dirt, 1524 mm/60 inch wide

1шт.

2

D126566

EDGE

cutting, formed, bucket, 152 mm/6 inch wide, Dirt bucket

1шт.

D101562

BUCKET utility, 1524 mm/60 inch wide, uses 152 mm/6 inch cutting edge, order from Machinery Price List, utility bucket

1шт.

3

NSS

NOT SOLD SEPARAT

BUCKET utility, 1524 mm/60 inch wide, utility bucket

1шт.

4

D125853

EDGE

cutting, formed, bucket, 152 mm/6 inch wide, Utility buckets

1шт.

D127919

TOOTH

ASSEMBLY, bucket, used only on dirt buckets with a 152 mm/6 inch cutting edge, no longer available, order component parts separately, Bucket teeth

8шт.

5

D127918

SHANK, BUCKET TOOTH

SHANK bucket tooth, for use with 152 mm/6 inch cutting edge, bucket teeth

1шт.

6

T41166

TOOTH

POINT tooth, Bucket teeth

1шт.

7

D132172

PIN

lower, pallet fork frame to loader arm, Loader attachment bar mounting

2шт.

8

136-162

HAIR PIN COTTER,Int, 1/2" x .250"

PIN cotter, hair, 1/2 x 3-1/4 inch, loader attachment bar pin retaining, Loader attachment bar mounting

2шт.

9

D61308

PIN

BRACKET upper, Loader attachment bar mounting

2шт.

10

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

hex, 1/2 NC x 1-1/4 inch, Loader attachment bar mounting

8шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Loader attachment bar mounting 1/2"

8шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Loader attachment bar mounting 1/2"-13, G5

8шт.
