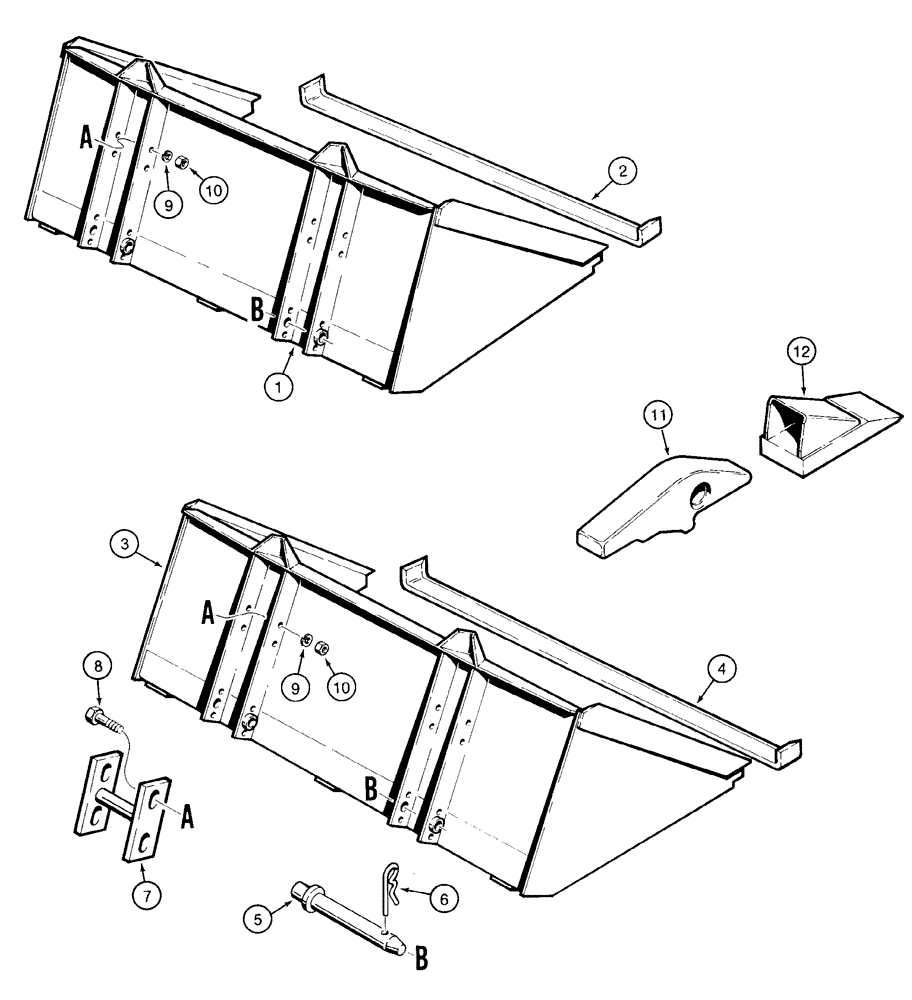

Запчасти Case 1835C (9-12) - BUCKETS 76 MM (3 INCH) CUTTING EDGE (09) - CHASSIS/ATTACHMENTS

D17285

X

BUCKET utility, 1372 mm/54 inch wide, uses 76 mm/3 inch cutting edge, order from Machinery Price List, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET utility, 1372 mm/54 inch wide

1шт.

2

D61271

EDGE, CUTTING

EDGE cutting, formed, Utility buckets

1шт.

D17284

X

BUCKET light material, 1676 mm/66 inch wide, uses 76 mm/3 inch cutting edge, order from Machinery Price List, Includes: Ref. 3 and 4, Utility buckets

1шт.

3

NSS

NOT SOLD SEPARAT

BUCKET light material, 1676 mm/66 inch wide, Utility buckets LIGHT MATERIAL BUCKET

1шт.

4

D61597

EDGE, CUTTING

EDGE cutting, formed, Utility buckets LIGHT MATERIAL BUCKET

1шт.

5

D132172

PIN

lower, pallet fork frame to loader arm, Loader attachement bar mounting

2шт.

6

136-162

HAIR PIN COTTER,Int, 1/2" x .250"

PIN cotter, hair, 1/2 x 3-1/4 inch, Loader attachement bar mounting

2шт.

7

D61308

PIN

BRACKET upper, Loader attachement bar mounting

2шт.

8

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

hex, 1/2 NC x 1-1/4 inch, Loader attachement bar mounting

8шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Loader attachment bar mounting 1/2"

8шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Loader attachment bar mounting 1/2"-13, G5

8шт.

11

T41165

TOOTH

SHANK tooth, for use with 76 mm/3 inch cutting edge, Bucket teeth

8шт.

12

T41166

TOOTH

POINT tooth, Bucket teeth

8шт.
