Запчасти Case 1835C (9-08) - FLOOR AND HEEL PLATES (09) - CHASSIS/ATTACHMENTS

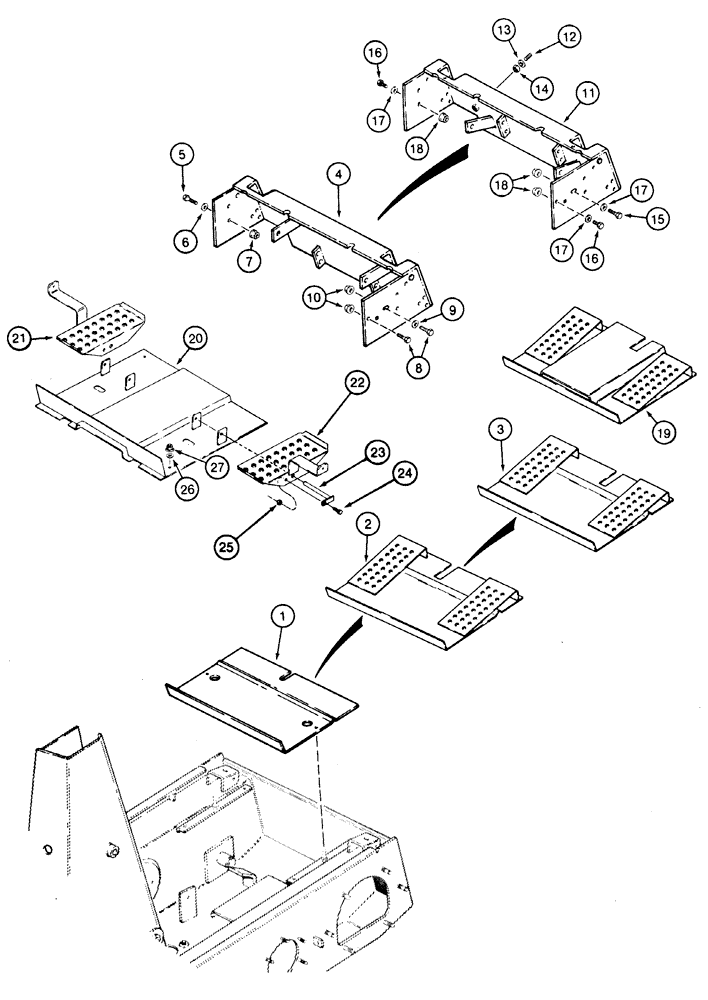

Схема запчастей Case 1835C - (9-08) - FLOOR AND HEEL PLATES (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

D139890

PLATE

floor, without welded-on foot rests, no longer used, service with P/N H673043 Ref. 2

1шт.

2

H673043

PLATE

floor, with welded-on foot rests, slot left of center, if used

1шт.

3

H673430

PLATE

floor, with welded-on foot rests, slot right of center, without raised center section, if used

1шт.

4

D134047

PLATE ASSY.

PLATE heel, used with P/N H672931 control arm, see Ref. 7, Figure 6-02 for arm

1шт.

5

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, 5/16 NC x 1 inch

8шт.

6

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

8шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

8шт.

8

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

9

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

1шт.

10

231-5146

FLANGE NUT,3/8"-16

2шт.

11

H673137

PLATE

heel, used with P/N H673190 and H673191 control arms; see Ref. 38 and 39, Figure 6-02 or Ref. 12 and 13, Figure 6-06 for arms

1шт.

12

83-33832

SET SCREW,Hex Soc, 3/8"-16 x 2"

SCREW set, hex socket headless, 3/8 NC x 2 inch, flat point

4шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

4шт.

14

425-146

JAM NUT,3/8" - 16, Gr 5

hex, jam, 3/8 inch NC

4шт.

15

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

1шт.

16

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, 5/16 NC x 1 inch

3шт.

17

H426775

WASHER

flat, special, hardened

4шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

4шт.

19

H674199

PLATE

floor, with raised center section, if used

1шт.

20

H673774

SHEET

PLATE floor, used on models with foot controls only

1шт.

21

H673783

PEDAL

foot control, left-hand

1шт.

22

H673772

PEDAL

foot control, right-hand

1шт.

23

H673771

PIN,12.7mm OD x 140mm L

pedal mounting

2шт.

24

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

hex, 1/4 NC x 3/4 inch

2шт.

25

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

26

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

4шт.

27

231-5146

FLANGE NUT,3/8"-16

4шт.
