Запчасти Case 1835C (9-06) - CHASSIS, P.I.N. JAF0130893 AND AFTER (09) - CHASSIS/ATTACHMENTS

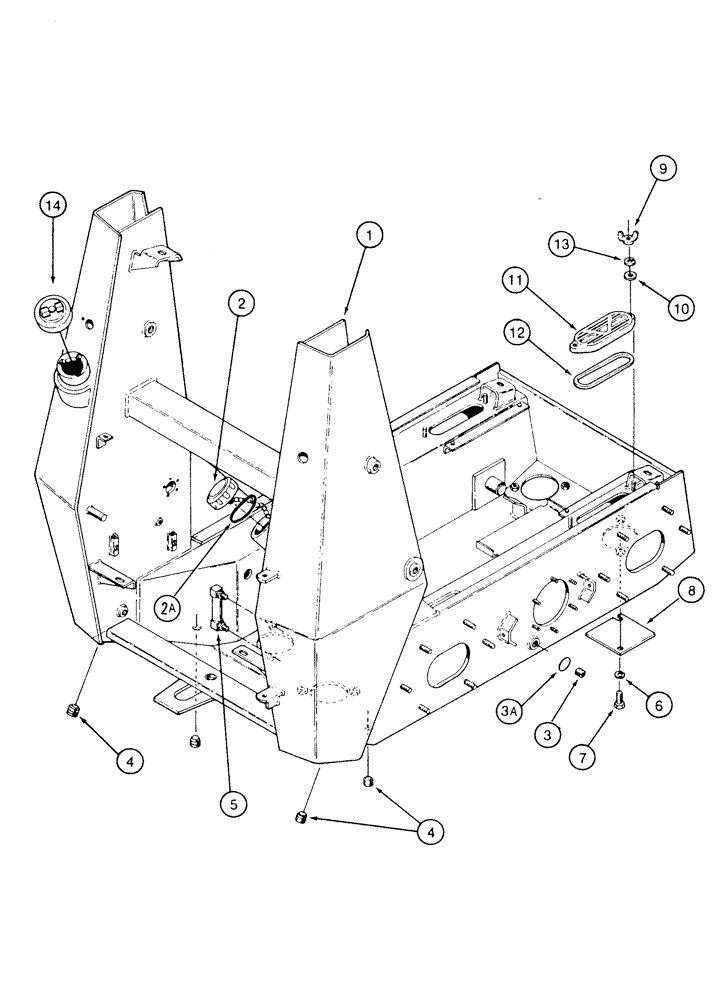

Схема запчастей Case 1835C - (9-06) - CHASSIS, P.I.N. JAF0130893 AND AFTER (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

141851A1

FRAME ASSY

CHASSIS Uni-Loader

1шт.

2

H674463

PLUG

CAP with filter, hydraulic tank, Includes: Ref. 2A

1шт.

2a

292259A1

SEAL

cap

1шт.

3

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 3A Hex Soc, 1 1/16"-12 ORB

2шт.

3a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

4

221-846

PLUG,Hex Soc, 1"-11 1/2

hex socket, 1 inch PT

4шт.

5

H435669

GAUGE

sight, hydraulic oil

1шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

7

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

hex, 1/2 NC x 1-1/4 inch

8шт.

8

H436914

LARGE PLATE

PLATE cover

4шт.

9

129-410

WING NUT,3/8"-16

NUT wing, 3/8 inch NC

8шт.

10

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

8шт.

11

103264A2

COVER

frame

4шт.

12

H438686

GASKET,323.4mm L

cover

4шт.

13

492-11038

LOCK WASHER,3/8"

8шт.

14

108925A1

FILLER CAP

CAP fuel, locking, includes two keys

1шт.

Выбрано товаров: 16
