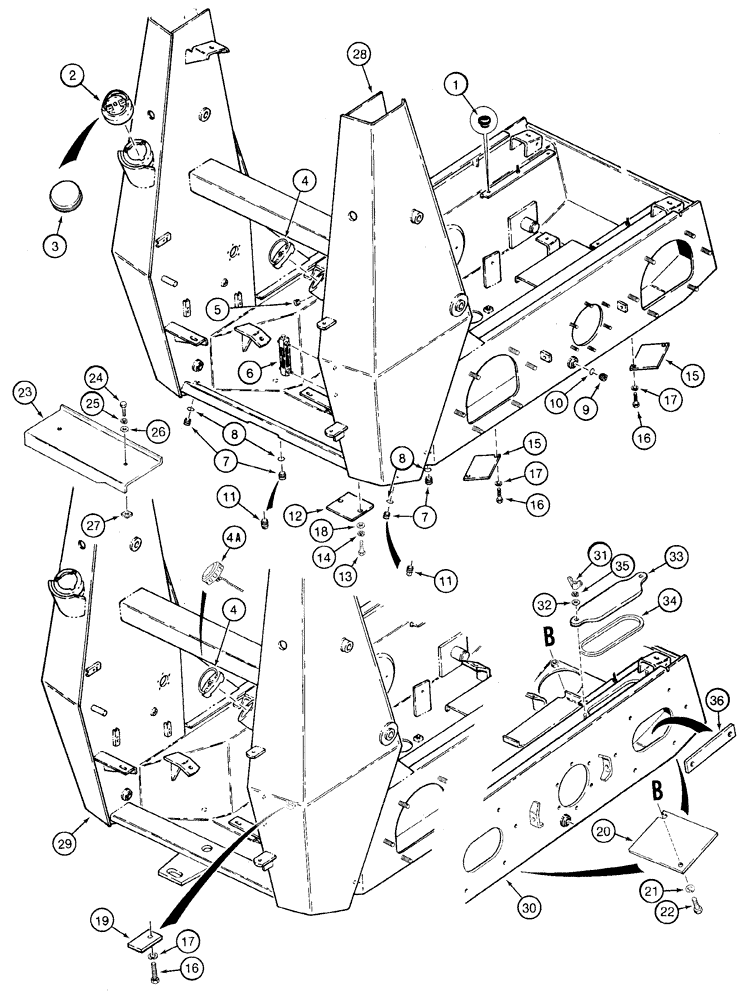

Запчасти Case 1835C (9-02) - CHASSIS, PRIOR TO P.I.N. JAF0130893 (09) - CHASSIS/ATTACHMENTS

1

A161780

BUMPER

rubber

4шт.

2

D135098

CAP

fuel, vented, with chain, diesel models only, if used

1шт.

2

D135097

CAP

fuel, vented, with chain, gasoline models only, if used, Serial Range: -JAF0037367

1шт.

3

D93757

CAP

fuel, gasoline models, Replaces: P/N A51390 cap, Start Serial: JAF0037367

1шт.

4

D93981

FILLER CAP

CAP without filter, pipe, hydraulic oil

1шт.

4a

257448A1

CAP

with filter, pipe, hydraulic, Replaces: P/N H674463 cap, Includes: Ref. 4B, Start Serial: JAF0037367

1шт.

4b

292259A1

SEAL

cap, not shown

1шт.

5

N8796

PLUG

BREATHER hydraulic oil fill tube, used with Ref. 4 cap only

1шт.

6

H435669

GAUGE

sight, hydraulic oil

1шт.

7

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

if used, Incl. Ref 8 Hex Soc, 1 5/16"-12 ORB

4шт.

8

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

9

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 10 Hex Soc, 1 1/16"-12 ORB

2шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

11

221-846

PLUG,Hex Soc, 1"-11 1/2

hex socket, 1 inch PT, if used

4шт.

12

D136959

PLATE

access, may have either two holes or a cutout slot and hole, Serial Range: -JAF0037595

1шт.

12

H437594

PLATE

access, may have either two holes or a cutout slot and hole, Serial Range: JAF0037595-JAF0037682

1шт.

13

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

hex, 1/2 NC x 1-1/4 inch

2шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

15

H435050

PLATE

cover, with two mounting holes

2шт.

16

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

hex, 1/2 NC x 1-1/4 inch

5шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

5шт.

18

496-21053

WASHER,17/32" x 1 1/16" x .134"

flat, hardened, 17/32 x 1-1/16 x 1/8 inch

2шт.

19

D138561

PLATE

cover, used with chassis Ref. 30, Figure 9-02, Serial Range: JAF0037367-JAF0037594

1шт.

20

H436914

LARGE PLATE

PLATE cover, with one hole and one notch, Start Serial: JAF0037595

4шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

22

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

hex, 1/2 NC x 1-1/4 inch, if used

8шт.

22

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

If used Hex, 1/2"-13 x 1 1/2", G5, Full Thd

8шт.

23

H673737

INSULATOR

PANEL noise

1шт.

24

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

25

492-11038

LOCK WASHER,3/8"

2шт.

26

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

2шт.

27

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

2шт.

28

H673389

FRAME

CHASSIS Uni-Loader, Replaces: P/N D128600 chassis, Serial Range: -JAF0037367

1шт.

For replacement pressed-in bolts for mounting bearing housings and axle hubs to chassis, see Figure 6-58, Ref. 13 and 22.

1шт.

29

182440A1

CHASSIS

Uni-Loader, Replaces: P/N H673374 chassis, Serial Range: JAF0037367-JAF0037910

1шт.

For replacement pressed-in bolts for mounting bearing housings and axle hubs to chassis, see Figure 6-58, Ref. 13 and 22.

1шт.

30

182435A1

CHASSIS

Uni-loader, Replaces: P/N 101849A1 chassis, Serial Range: JAF0037911-JAF0130892

1шт.

For replacement pressed-in bolts for mounting bearing housings and axle hubs to chassis, see Figure 6-58, Ref. 13 and 22.

1шт.

31

129-410

WING NUT,3/8"-16

NUT wing, 3/8 inch NC

8шт.

32

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

8шт.

33

103264A2

COVER

frame

4шт.

34

H438686

GASKET,323.4mm L

cover

4шт.

35

492-11038

LOCK WASHER,3/8"

8шт.

36

H438670

BAR

PLATE reinforcement, axle hub lower mounting bolt

4шт.

225036A1

SET OF PARTS

KIT hub, front frame

1шт.

225037A1

SET OF PARTS

KIT hub, rear frame

1шт.
