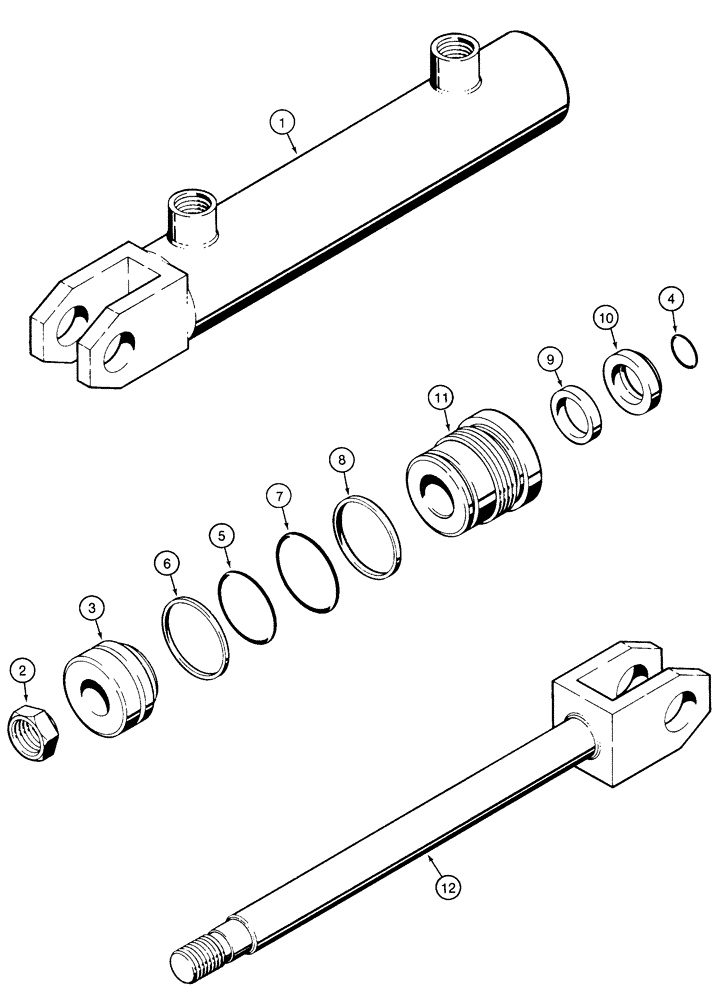

Запчасти Case 1835C (8-80) - GRAPPLE CYLINDER (08) - HYDRAULICS

D61075

CYLINDER

ASSEMBLY, 51/2 ID x 203 mm/8 inch stroke, grapple, Includes: Ref. 1 - 12

2шт.

1

D61010

TUBE

cylinder

1шт.

2

425-1512

JAM NUT,Jam, 3/4"-10, G5

hex, jam, 3/4 inch NF

1шт.

3

D60996

PISTON

cylinder

1шт.

4

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

-016, 70 Duro, .614" ID x .070" Thk, Piston rod

1шт.

Part of Seal Kit, P/N D61006

1шт.

5

238-5129

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

Piston -129, 70 Duro, 1.549" ID x .103" Thk

1шт.

Part of Seal Kit, P/N D61006

1шт.

6

D60995

RING

backup, piston O-ring

1шт.

Part of Seal Kit, P/N D61006

1шт.

7

238-5224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

Gland -224, 70 Duro, 1.734" ID x .139" Thk

1шт.

Part of Seal Kit, P/N D61006

1шт.

8

A185082

BACK-UP RING

RING backup, gland O-ring

1шт.

Part of Seal Kit, P/N D61006

1шт.

9

D60999

WIPER SEAL

SEAL U-cup, piston rod

1шт.

Part of Seal Kit, P/N D61006

1шт.

10

D60997

WIPER SEAL

WIPER piston rod, outer

1шт.

Part of Seal Kit, P/N D61006

1шт.

11

D61002

GLAND

cylinder

1шт.

12

D61011

ROD

piston, 25 mm/1 inch diameter

1шт.

D61006

GASKET KIT

KIT seal, Includes: Ref. 4 - 10

1шт.
