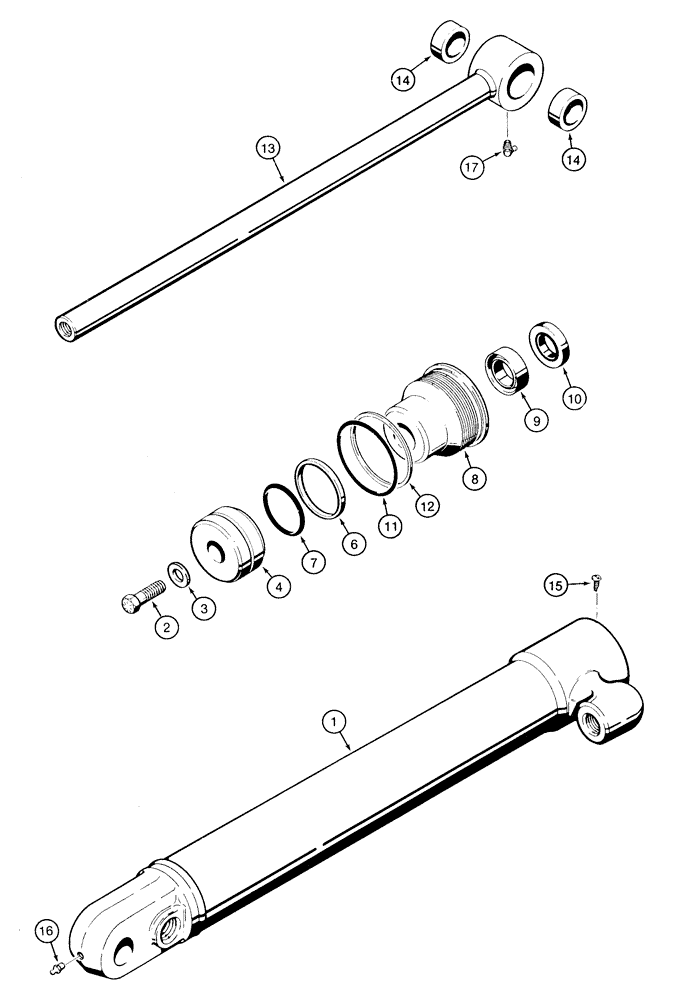

Запчасти Case 1835C (8-76) - LOADER BUCKET TILT CYLINDER, PRIOR TO P.I.N. JAF0130838 (08) - HYDRAULICS

G103407

CYLINDER

ASSEMBLY, 64/2-1/2 ID x 403 mm/15-7/8 inch stroke, bucket tilt, no longer available, order P/N 118110A1 cylinder assembly, see Figure 8-78 and 9-10 for mounting hardware, Includes: Ref. 1 - 17

2шт.

118110A1R

REMAN-HYD CYLINDER

1835C CASE UNI LOADER SKID STEER LOADER, PRIOR TO P.I.N. JAF0130838, ASSEMBLY, Reman for New PN G103407

2шт.

118110A1C

CORE-HYD CYLINDER

Return Number

2шт.

1

G103465

TUBE,63.5 mm DIA x 572.26 mm L

cylinder

1шт.

2

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

3

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, hardened, special

1шт.

4

G104098

PISTON

cylinder, single groove, no longer available, order P/N G33138 piston and G100714 ring, Ref. 4 and 5 on Figure 8-78

1шт.

6

G33140

RING,59.68mm ID x 64.26mm OD x 3.94mm Thk

SEAL piston

1шт.

Part of Seal Kit, P/N 128728A1

1шт.

7

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

1шт.

Part of Seal Kit, P/N 128728A1

1шт.

G103568

GLAND

ASSEMBLY, cylinder, no longer available, order P/N 125163A1 gland and 128728A1 kit, Includes: Ref. 8 - 12

1шт.

8

125163A1

CYLINDER END CAP

GLAND cylinder

1шт.

9

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

U-cup, piston rod, wide, with O-ring

1шт.

Part of Seal Kit, P/N 128728A1

1шт.

10

D95141

WIPER SEAL

WIPER piston rod, outer

1шт.

Part of Seal Kit, P/N 128728A1

1шт.

11

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

Gland -230, 70 Duro, 2.484" ID x .139" Thk

1шт.

Part of Seal Kit, P/N 128728A1

1шт.

12

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

backup, gland O-ring

1шт.

Part of Seal Kit, P/N 128728A1

1шт.

13

G103408

PISTON ROD

ROD piston, 32 mm/1-1/4 inch diameter, Includes: Ref. 14

1шт.

14

G35361

BUSHING,25.7mm ID x 31.82mm OD x 15.7mm L

rod

2шт.

15

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

1шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

128728A1

SEAL KIT

KIT seal, Includes: Ref. 6, 7 and 9 - 12; Replaces: P/N G109476 kit

1шт.
