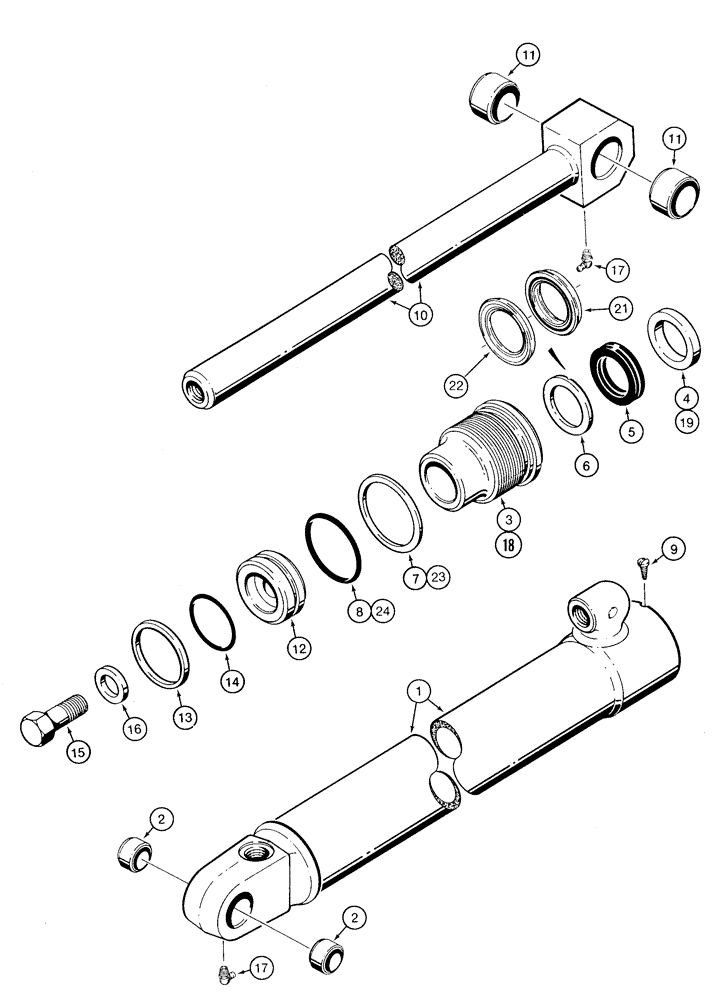

Запчасти Case 1835C (8-72) - LOADER LIFT CYLINDER USED ON MODELS PRIOR TO P.I.N. JAF0130838 (08) - HYDRAULICS

G110666

CYLINDER

ASSEMBLY, 64/2-1/2 ID x 679 mm/26-3/4 inch stroke, loader lift, right-hand and left-hand, no longer available, order P/N 117824A1 cylinder assembly, see Figure 8-74, and see Figure 9-10 for mounting hardware, Includes: Ref. 1 - 24

2шт.

1

G110667

TUBE,2.497" ID x 33.94" L

ASSEMBLY, cylinder, no longer available, order P/N 117824A1 cylinder assembly, see Figure 8-74, Includes: Ref. 2

1шт.

2

D34359

BUSHING,25.63mm ID x 34.92mm OD x 15.75mm L

tube

2шт.

G104008

GLAND

ASSEMBLY, cylinder, has smooth outer lip, no longer available, order Ref. 18, P/N 1542960C1 gland and P/N 128725A1 seal kit, Includes: Ref. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER piston rod

1шт.

Part of Seal Kit, P/N G109458

1шт.

5

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

U-cup, piston rod, wide, with O-ring

1шт.

Part of Seal Kit, P/N G109458

1шт.

6

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

piston rod, narrow

1шт.

Part of Seal Kit, P/N G109458

1шт.

7

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

backup, gland

1шт.

Part of Seal Kit, P/N G109458

1шт.

8

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

Gland -230, 70 Duro, 2.484" ID x .139" Thk

1шт.

Part of Seal Kit, P/N G109458

1шт.

9

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

10

128301A1

ROD

ASSEMBLY, piston, 38 mm/1-1/2 inch diameter, Replaces: P/N G106824 rod assembly, Includes: Ref. 11

1шт.

11

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

piston rod

2шт.

12

S220090

PISTON

cylinder, Replaces: P/N G104100 piston

1шт.

13

G33140

RING,59.68mm ID x 64.26mm OD x 3.94mm Thk

SEAL piston

1шт.

Part of Seal Kit, P/N G109458

1шт.

Part of Seal Kit, P/N 128725A1

1шт.

14

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

1шт.

Part of Seal Kit, P/N G109458

1шт.

Part of Seal Kit, P/N 128725A1

1шт.

15

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

16

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, hardened, special

1шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY, cylinder, Includes: Ref. 18 - 24

1шт.

18

1542960C1

GLAND

cylinder, has identification groove on outer lip

1шт.

19

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER piston rod

1шт.

Part of Seal Kit, P/N 128725A1

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL rod, order P/N 128725A1 kit below

1шт.

Part of Seal Kit, P/N 128725A1

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL buffer, order P/N 128725A1 kit below

1шт.

Part of Seal Kit, P/N 128725A1

1шт.

23

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

backup, gland O-ring

1шт.

Part of Seal Kit, P/N 128725A1

1шт.

24

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

Part of Seal Kit, P/N 128725A1

1шт.

G109458

GASKET KIT

KIT seal, Includes: Ref. 4 - 8, 13 and 14, no longer available, order individual parts as needed

1шт.

Part of Seal Kit, P/N 128725A1

1шт.

128725A1

SEAL KIT

KIT seal, Includes: Ref. 13, 14, 19 - 24; Replaces: P/N 1543255C1 kit, also includes O-ring, backup ring, and wear ring not used with this cylinder

1шт.
