Запчасти Case 1835C (8-70) - HYDRAULIC EQUIPMENT PUMP AND ADAPTING PARTS (08) - HYDRAULICS

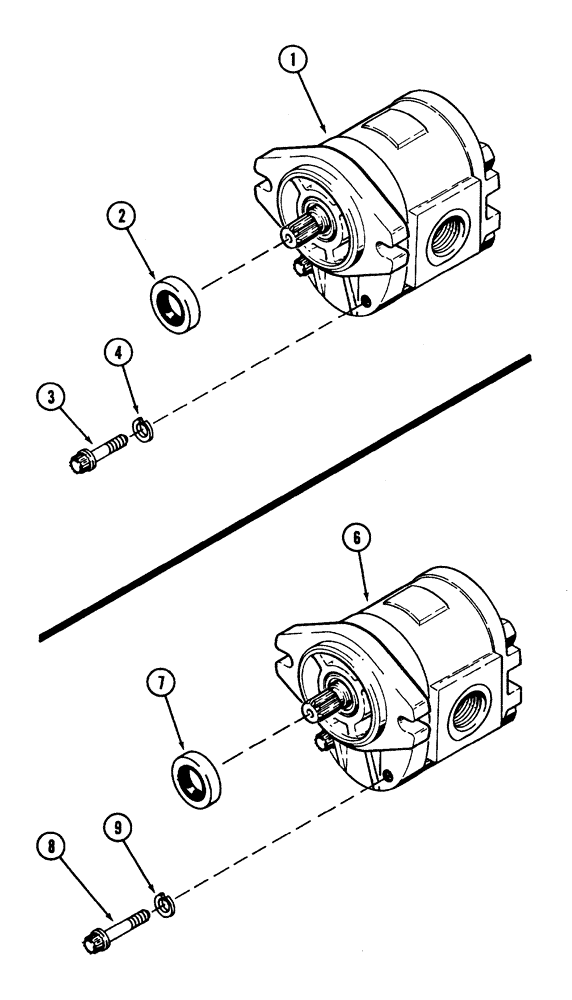

Схема запчастей Case 1835C - (8-70) - HYDRAULIC EQUIPMENT PUMP AND ADAPTING PARTS (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

103168A1

PUMP

ASSEMBLY, hydraulic equipment, identified with 11 splines, without ports in port end cover and with 4 housing bolts; no longer available, order P/N 132641A1 coupling and pump assembly Figure 8-68 , see Figure 8-38 for mounting hardware

1шт.

2

115114A1

SEAL

shaft, 20 x 32 x 7 mm

2шт.

3

115115A1

BOLT

special, 12-1.75 x 128 mm, class 10.9

4шт.

4

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

5

110483A1

SEAL KIT

KIT repair, seal, not shown, component parts not serviced seperately

1шт.

6

132642A1

PUMP

ASSEMBLY, hydraulic equipment, identified with 13 splines, without ports in port end cover and with 4 housing bolts, see Figure 8-40 for mounting hardware 132642A1 EQUIPMENT PUMP PIN JAF0130838 AND AFTER

1шт.

7

132966A1

SEAL

shaft, 22.2 x 34.9 x 4.6 mm 132642A1 EQUIPMENT PUMP PIN JAF0130838 AND AFTER

2шт.

8

139442A1

BOLT

hex, special, 12-1.75 x 106 mm, class 10.9 132642A1 EQUIPMENT PUMP PIN JAF0130838 AND AFTER

4шт.

9

892-11012

LOCK WASHER,M12

WASHER, LOCK, , 132642A1 Equipment Pump PIN JAF0130838 and after M12

4шт.

10

139443A1

SEAL KIT

KIT seal, not shown, component parts not serviced seperately 132642A1 EQUIPMENT PUMP PIN JAF0130838 AND AFTER

1шт.

Выбрано товаров: 10
