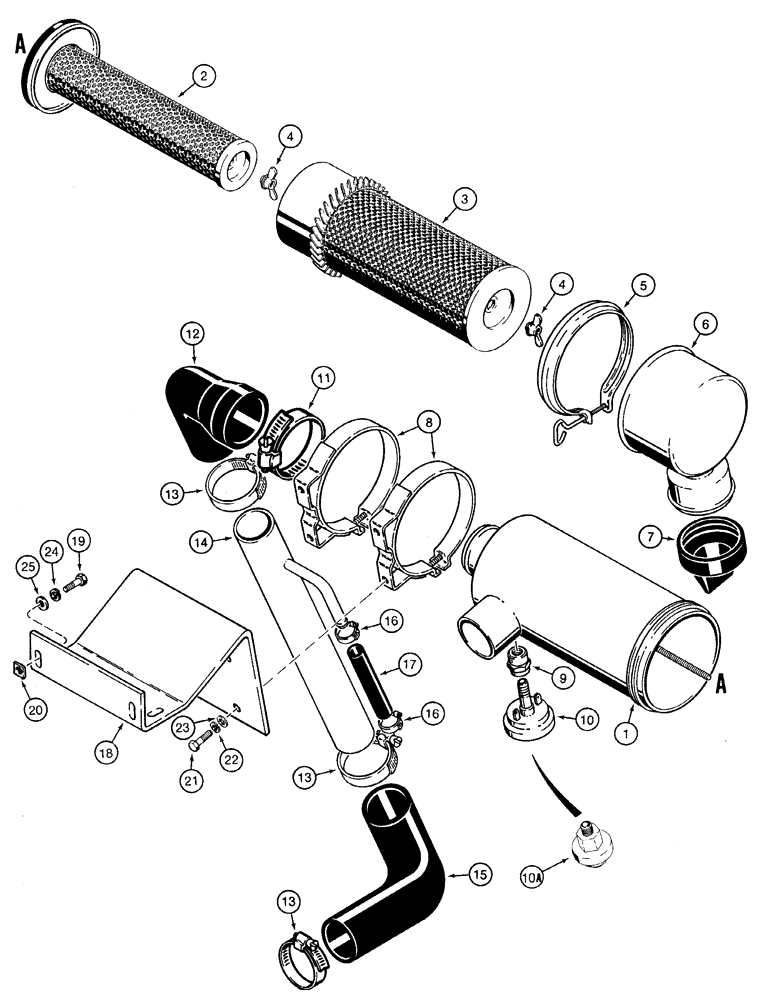

Запчасти Case 1835C (2-08) - AIR CLEANER AND MOUNTING, GASOLINE MODELS ONLY (02) - ENGINE

R39391

AIR CLEANER

CLEANER ASSEMBLY air, engine, Includes: Ref. 1 - 5, all 6's and all 7's

1шт.

1

NSS

NOT SOLD SEPARAT

BODY air cleaner

1шт.

2

D82775

AIR CLEANER

ELEMENT secondary

1шт.

3

S236468

AIR CLEANER

ELEMENT primary

1шт.

4

D78354

WING NUT

NUT wing

2шт.

5

52865DA

CLAMP

air cleaner, with hardware, Replaces: P/N G45712 clamp

1шт.

6

S113981

COVER

CAP air cleaner, no longer available, order P/N 121406A1 cap and P/N A184597 valve

1шт.

6

121406A1

COVER

CAP air cleaner

1шт.

7

S113982

CAP

VALVE dust, rubber, used with P/N S113981 cap

1шт.

7

A184597

VALVE POPPET,1.93" ID x 2.24" OD x 1.84" L

dust, used with P/N 121406A1 cap

1шт.

8

R41654

COLLAR CLAMP

CLAMP air cleaner mounting, includes hardware

2шт.

9

221-1335

COUPLING,Pipe, 1/8" NPT

Used with Ref 10, P/N L103131 only Pipe, 1/8" NPT

1шт.

10

L103131

INDICATOR

SENDER air filter restriction indicator, no longer available, order P/N 1983233C1 switch and remove Ref. 9, P/N 221-1335 coupling, Serial Range: -JAF0066223

1шт.

10a

1983233C1

RESTRICTION SWITCH

SWITCH restriction, air cleaner, Start Serial: JAF0066223

1шт.

11

214-1444

HOSE CLAMP,58.6mm - 82.5mm

CLAMP, HOSE, . Adjusting #44, 2.31/3.25 Type F Worm

1шт.

12

D128283

INTAKE AIR HOSE,50.80 mm ID, 63.50 mm ID, SAE J200

Air Cleaner, Upper 50.80 mm ID, 63.50 mm ID, SAE J200

1шт.

13

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

CLAMP, HOSE, , Adj #36, 1.81/2.75 Type F Worm

3шт.

14

D128281

SLEEVE

TUBE air cleaner hoses

1шт.

15

D128284

INTAKE AIR HOSE,50.80 mm ID, SAE J200

Air Cleaner, Lower 50.80 mm ID, SAE J200

1шт.

16

214-1408

HOSE CLAMP,11.2mm - 19.8mm

CLAMP, HOSE, , Adj. #08, 0.50/0.91 Type F Worm

2шт.

17

D128279

HOSE,12.7 mm ID x 100.00 mm, SAE 30R1

1шт.

18

D138041

BRACKET

air cleaner mounting, Serial Range: -JAF0037367

1шт.

18

H436198

BRACKET

air cleaner and hydraulic oil filter mounting, Start Serial: JAF0037367

1шт.

19

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

20

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

2шт.

21

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, 5/16 NC x 1 inch

4шт.

22

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

23

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

24

492-11038

LOCK WASHER,3/8"

2шт.

25

496-21041

WASHER,13/32" x 13/16" x .089", HDN

flat, hardened, 13/32 x 13/16 x 3/32"

2шт.
