Запчасти Case 1835C (8-66) - AUXILIARY CONTROL VALVE (08) - HYDRAULICS

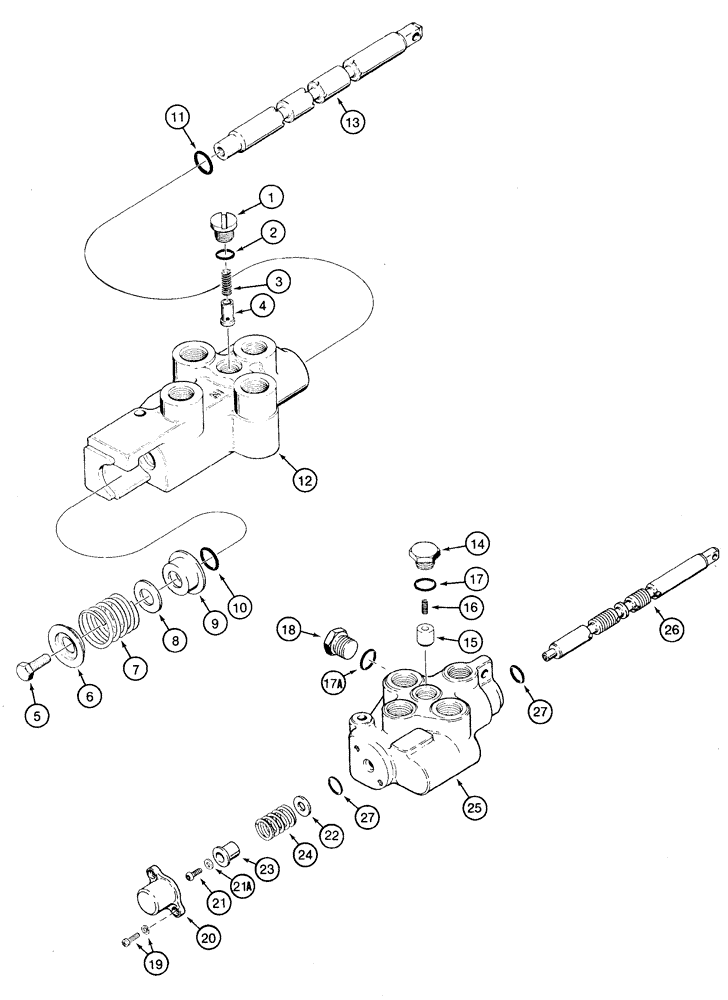

Схема запчастей Case 1835C - (8-66) - AUXILIARY CONTROL VALVE (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

D64670

VALVE

ASSEMBLY, auxiliary control, no longer available, order P/N H674465 valve for service, see Figure 8-64 for mounting hardware, Includes: Ref. 1 - 13

1шт.

H47506

PLUG

ASSEMBLY, load check valve, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

PLUG valve

1шт.

2

238-7112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

1шт.

3

FH730374

SPRING

load check valve

1шт.

4

FH730366

PLUNGER

POPPET load check valve

1шт.

5

H428292

SCREW,1/4" - 20 x 0.972"

BOLT hex, special

1шт.

6

F59116

WASHER

SEAT spring

1шт.

7

H220517

SPRING

spool

1шт.

8

H746164

WASHER

special, 4 mm/5/32 inch thick

1шт.

9

H52902

CAP

RETAINER spring

1шт.

10

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

Valve body, spool detent end -114, 70 Duro, .612" ID x .103" Thk

1шт.

11

F37887

O-RING

valve body, spool eye end

1шт.

12

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

13

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

H674465

VALVE

ASSEMBLY, auxiliary control, see Figure 8-62 and 8-64 for mounting hardware, Includes: Ref. P/N H673572 and 14 - 27

1шт.

142999A1

KIT

load check, Replaces: P/N H673572 kit, Includes: Ref. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

PLUG load check

1шт.

15

NSS

NOT SOLD SEPARAT

POPPET load check

1шт.

16

NSS

NOT SOLD SEPARAT

SPRING load check

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Load check plug

1шт.

17a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Power beyond plug

1шт.

18

H436435

PLUG

power beyond, if used

1шт.

18a

132547A1

PLUG

hex, power beyond, if used, not shown

1шт.

H674816

KIT

centering spring, Includes: Ref. 19 - 24

1шт.

19

NSS

NOT SOLD SEPARAT

SCREW includes lock washer, end cap

2шт.

20

N9528

CAP

bucket spool end

1шт.

21

62-7108

HEX SOC SCREW,Btn Hd, #10 - 32 x 1/2"

BOLT hex socket, No. 10 NF x 1/2 inch

1шт.

21a

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

22

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

23

N9529

SEAT

spring, spool

1шт.

24

N9539

TENSION SPRING

SPRING centering, spool

1шт.

25

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

26

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

27

H438030

O-RING

5/8 ID x 13/16 inch

2шт.

Выбрано товаров: 35
