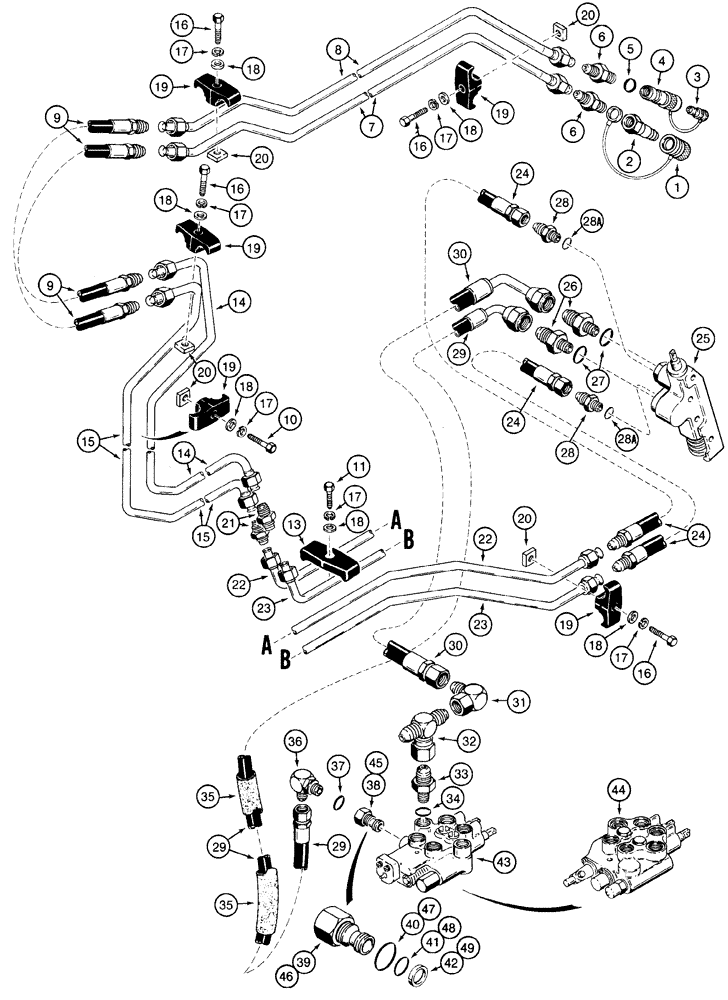

Запчасти Case 1835C (8-48) - AUXILIARY HYDRAULIC CIRCUIT, PRIOR TO P.I.N. JAF0037077 (08) - HYDRAULICS

1

T40759

PLUG

dust, disconnect

1шт.

2

1272770C2

COUPLING, BREAK AWAY

COUPLING quick disconnect, male

1шт.

3

T40274

CAP

PLUG dust, disconnect

1шт.

4

H436396

COUPLING

COUPLER self sealing, female, Includes: Ref. 5

1шт.

5

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

Quick disconnect -210, 70 Duro, .734" ID x .139" Thk

1шт.

6

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER straight, 7/8-14 flare x 1/2 inch PT

2шт.

7

D139660

TUBE

lower, to quick disconnect

1шт.

8

D139658

TUBE

upper, to quick disconnect

1шт.

9

D126740

HOSE,12.7mm ID x 850mm L, SAE 100R2

850 mm/33-1/2 inch long, intermediate

2шт.

10

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

hex, 3/8 NC x 2-1/2 inch

1шт.

11

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

1шт.

13

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

plastic, crossover tubes

1шт.

14

D139812

TUBE

crossover, to intermediate hose, return to outlet port of control valve

1шт.

15

D139814

TUBE

crossover, to intermediate hose, supply, from power beyond sleeve

1шт.

16

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

4шт.

17

492-11038

LOCK WASHER,3/8"

6шт.

18

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

6шт.

19

D120613

CLAMP,20mm ID

tube, spacer type

5шт.

20

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

5шт.

21

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR straight, 7/8-14 inch flare

2шт.

22

D139810

TUBE

crossover, upper, return to outlet port of control valve

1шт.

23

D139808

TUBE

crossover, lower, supply, from power beyond sleeve

1шт.

24

H244913

HYDRAULIC HOSE,12.70 mm ID x 431.80 mm, SAE 100R2

At Auxillary Control Valve 12.70 mm ID x 431.80 mm, SAE 100R2

2шт.

25

REF

INSTRUCTION

VALVE ASSEMBLY, auxiliary control, for correct assembly and components see Figure 8-66

1шт.

26

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., 7/8-14 flare x 3/4-16 inch O-ring boss, Incl. Ref. 27

2шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

28

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, 1-1/16-12 flare x 7/8-14 inch O-ring boss, Includes: Ref. 28A

2шт.

28a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

29

D139896

HOSE ASSY.

HOSE, 2083 mm/82 inch long, from control valve

1шт.

30

D139895

HOSE ASSY.

HOSE, 1740 mm/68-1/2 inch long, return, to control valve

1шт.

31

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

32

218-837

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

1-1/16-12 inch swivel branch x flare x flare

1шт.

33

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, 1-1/16-12 flare x 7/8-14 inch O-ring boss, Includes: Ref. 34

1шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

35

D139891

SLEEVE

GUARD hose, if used

1шт.

36

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8-14 inch flare x adjusting O-ring boss, 90°, Incl. Ref. 37

1шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

38

D61608

SLEEVE

ADAPTER ASSEMBLY, power beyond, used with Ref. 43 valve only, Includes: Ref. 39 - 42

1шт.

39

NSS

NOT SOLD SEPARAT

SLEEVE power beyond

1шт.

40

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

Large -116, 70 Duro, .737" ID x .103" Thk

1шт.

41

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

-016, 70 Duro, .614" ID x .070" Thk, Small

1шт.

42

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

backup, sleeve

1шт.

43

D130068

VALVE

ASSEMBLY, loader control, see Figure 8-14, used with P/N D61608 sleeve, Ref. 38, no longer available, order P/N H674734 valve, Ref. 44

1шт.

44

H674734

VALVE

ASSEMBLY, loader control, see Figure 8-16, used with P/N H436154 power beyond adapter, Ref. 45

1шт.

45

H436154

FITTING,7/8" - 14

ADAPTER power beyond, used with Ref. 44 valve only, Includes: Ref. 46 - 49

1шт.

46

NSS

NOT SOLD SEPARAT

SLEEVE power beyond

1шт.

47

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

48

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

49

A52424

BACK-UP RING

RING backup, sleeve

1шт.
