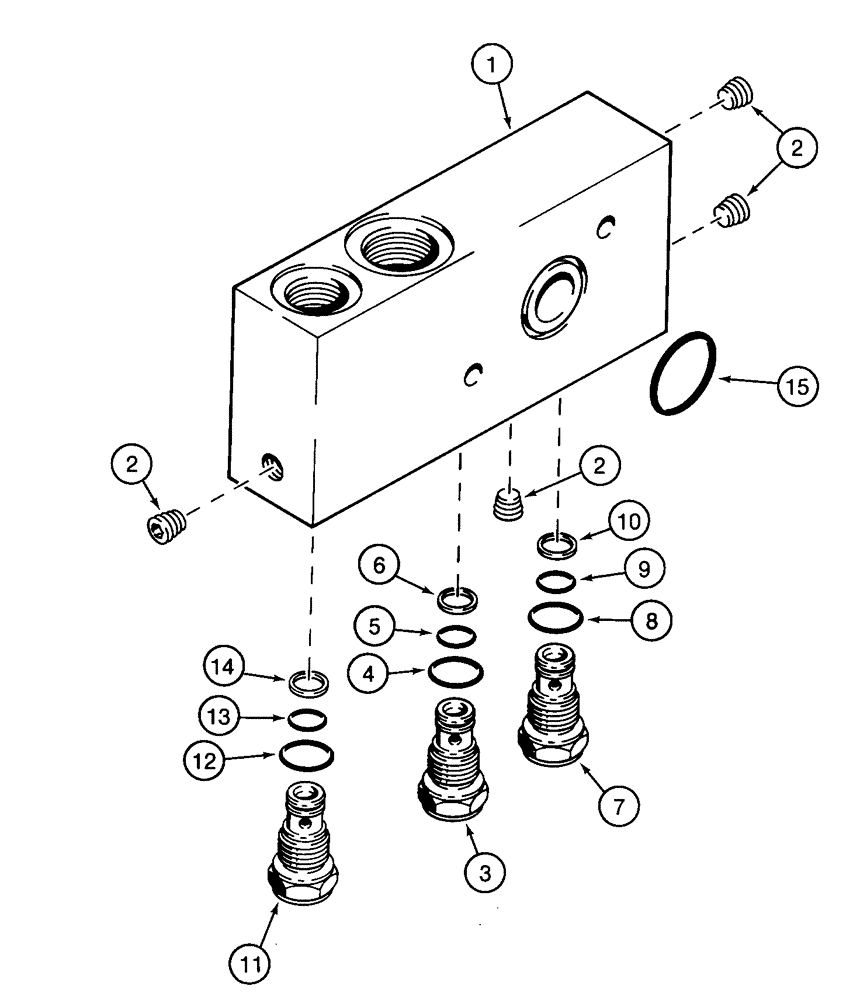

Запчасти Case 1835C (8-42) - CHECK VALVE MANIFOLD, PRIOR TO P.I.N. JAF0037879 (08) - HYDRAULICS

D137500

MANIFOLD

ASSEMBLY, check valve, hydrostatic circuit, manufactured by Waterman or Sterling, check name plate on manifold assembly for identification, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

BODY check valve manifold

1шт.

2

221-841

PLUG

hex socket, 1/4 inch PT, if used

4шт.

N14519

VALVE

ASSEMBLY, check, 5 psi, loader bucket circuit, used with manifold manufactured by Waterman, blue in color, Includes: Ref. 3 - 6

1шт.

100501A1

VALVE

ASSEMBLY, check, 5 psi, loader bucket circuit, used with manifold manufactured by Sterling, silver in color, Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

BODY check valve

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Outer

1шт.

5

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk, Inner, Used with manifold manufactured by Waterman

1шт.

5

K692161

O-RING,0.634" ID x 0.76" OD x 0.063"

small, inner, used with manifold manufactured by Sterling

1шт.

6

L30443

BACK-UP RING,0.547" ID x 0.049" Width

backup, inner, used with manifold manufactured by Waterman

1шт.

6

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

backup, inner, used with manifold manufactured by Sterling

1шт.

N14520

VALVE

ASSEMBLY, check, 15 psi, loader bucket circuit, used with manifold manufactured by Waterman, blue in color, Includes: Ref. 7 - 10

1шт.

100501A1

VALVE

ASSEMBLY, check, 5 psi, loader bucket circuit, used with manifold manufactured by Sterling, silver in color, Includes: Ref. 7 - 10

1шт.

7

NSS

NOT SOLD SEPARAT

BODY check valve

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Outer

1шт.

9

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk, Inner, Used with manifold manufactured by Waterman

1шт.

9

K692161

O-RING,0.634" ID x 0.76" OD x 0.063"

small, inner, used with manifold manufactured by Sterling

1шт.

10

L30443

BACK-UP RING,0.547" ID x 0.049" Width

backup, inner, used with manifold manufactured by Waterman

1шт.

10

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

backup, inner, used with manifold manufactured by Sterling

1шт.

D137500

MANIFOLD

ASSEMBLY, check valve, hydrostatic circuit, manufactured by Waterman or Sterling, check name plate on manifold assembly for identification, Includes: Ref. 10 - 15

1шт.

N14521

VALVE

ASSEMBLY, check, 50 psi, loader bucket circuit, used with manifold manufactured by Waterman, Includes: Ref. 11 - 15

1шт.

100502A1

VALVE

ASSEMBLY, check, 50 psi, loader bucket circuit, used with manifold manufactured by Sterling, Includes: Ref. 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

BODY check valve

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Outer

1шт.

13

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk, Inner, Used with manifold manufactured by Waterman

1шт.

13

K692161

O-RING,0.634" ID x 0.76" OD x 0.063"

small, inner, used with manifold manufactured by Sterling

1шт.

14

L30443

BACK-UP RING,0.547" ID x 0.049" Width

backup, inner, used with manifold manufactured by Waterman

1шт.

14

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

backup, inner, used with manifold manufactured by Sterling

1шт.

15

238-5219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

1шт.
