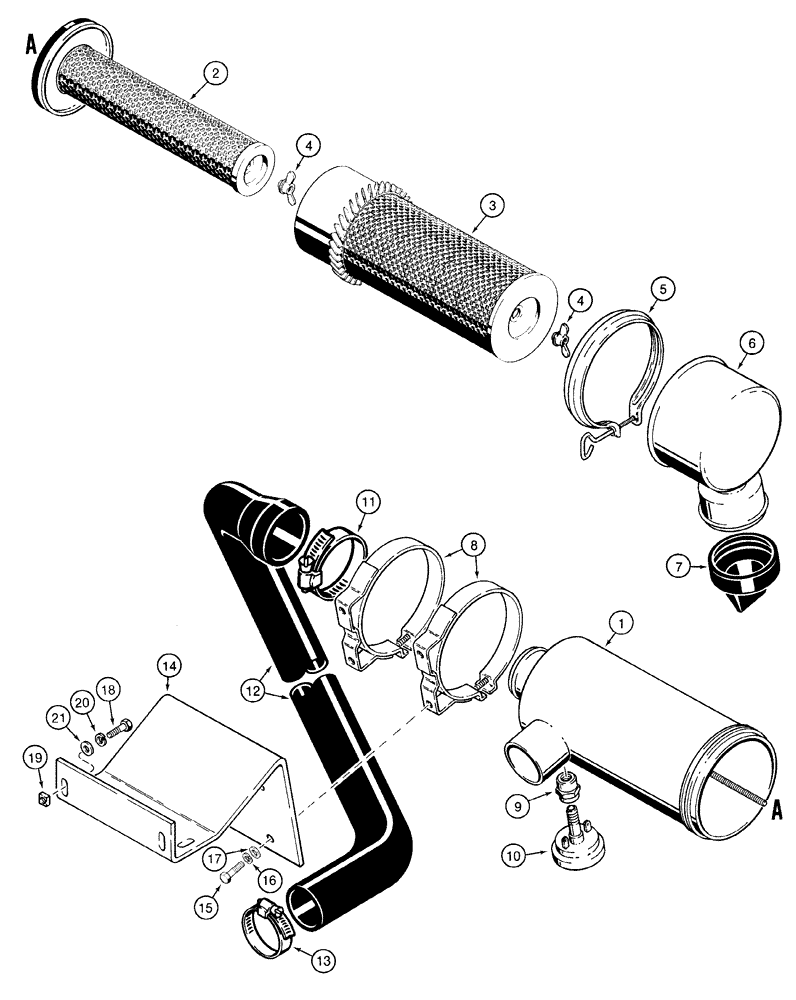

Запчасти Case 1835C (2-06) - AIR CLEANER AND MOUNTING, DIESEL MODELS ONLY (02) - ENGINE

R39391

AIR CLEANER

CLEANER ASSEMBLY air, engine, Includes: Ref. 1 - 5, all 6's and all 7's

1шт.

1

NSS

NOT SOLD SEPARAT

BODY air cleaner

1шт.

2

D82775

AIR CLEANER

ELEMENT secondary

1шт.

3

S236468

AIR CLEANER

ELEMENT primary

1шт.

4

D78354

WING NUT

NUT wing

2шт.

5

52865DA

CLAMP

air cleaner, with hardware, Replaces: P/N G45712 clamp

1шт.

6

S113981

COVER

CAP air cleaner, no longer available, order P/N 121406A1 cap and P/N A184597 valve

1шт.

6

121406A1

COVER

CAP air cleaner

1шт.

7

A184597

VALVE POPPET,1.93" ID x 2.24" OD x 1.84" L

dust, used with P/N 121406A1 cap

1шт.

7

S113982

CAP

VALVE dust, rubber, used with P/N S113981 cap

1шт.

8

R41654

COLLAR CLAMP

CLAMP air cleaner mounting, includes hardware

2шт.

9

221-1335

COUPLING,Pipe, 1/8" NPT

1шт.

10

L103131

INDICATOR

SENDER air filter restriction indicator, no longer available, order P/N 1983233C1 switch and remove Ref. 9 P/N 221-1335 coupling

1шт.

10

1983233C1

RESTRICTION SWITCH

SWITCH restriction, air cleaner, Replaces: P/N L103131

1шт.

11

214-1444

HOSE CLAMP,58.6mm - 82.5mm

CLAMP, HOSE, . Adjusting #44, 2.31/3.25 Type F Worm

1шт.

12

D126343

INTAKE AIR HOSE,50.80 mm ID, 63.50 mm ID, SAE J200

Air Cleaner 50.80 mm ID, 63.50 mm ID, SAE J200

1шт.

13

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

CLAMP, HOSE, , Adj #36, 1.81/2.75 Type F Worm

1шт.

14

D138041

BRACKET

air cleaner mounting

1шт.

15

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

16

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

17

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

18

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

19

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

2шт.

20

492-11038

LOCK WASHER,3/8"

if used 3/8"

2шт.

21

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16"), If used

2шт.
