Запчасти Case 1835C (8-34) - LOADER AND HYDROSTATIC DRIVE HYDRAULIC CIRCUIT (08) - HYDRAULICS

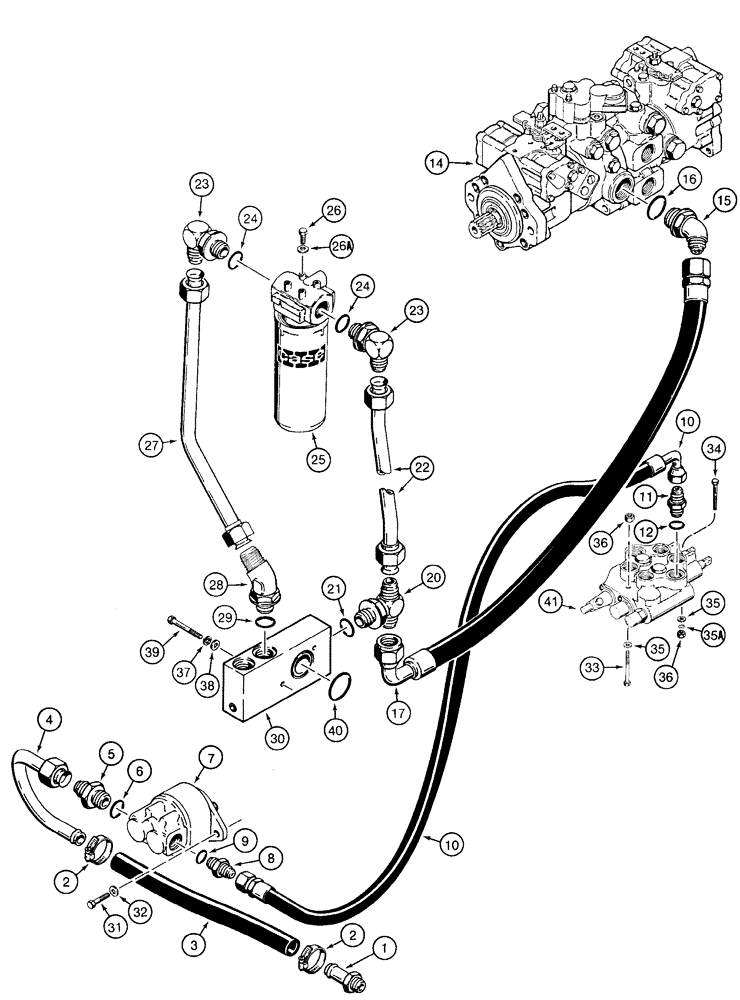

Схема запчастей Case 1835C - (8-34) - LOADER AND HYDROSTATIC DRIVE HYDRAULIC CIRCUIT (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

217-156

FITTING,1" Hose Barb x 1" Male NPTF

ADAPTER straight, 1 inch stem end x PT

1шт.

2

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj., Hydraulic tank hose #16, 0.81/1.50 Type F Worm

2шт.

3

D124619

HOSE,25.4 mm ID x 525.00 mm, SAE 100R3

Cut from P/N S118383X Bulk Hose 25.4 mm ID x 525.00 mm, SAE 100R3

1шт.

4

D126506

TUBE

at hydraulic equipment pump

1шт.

5

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 6

1шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-11/64 ID x 7/64 inch wide

1шт.

7

D126505

PUMP

ASSEMBLY, hydraulic equipment, see Figure 8-68, no longer available, order 132641A1 coupling, Ref. 4 on Figure 8-68 and P/N 132642A1 pump assembly, see Figure 8-70

1шт.

8

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x O-ring boss

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

10

D134380

HOSE ASSY.,15.88mm ID x 850mm L

HOSE, 900 mm/35-7/16 inch long, hydraulic equipment pump to loader control valve

1шт.

11

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x O-ring boss

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

14

REF

INSTRUCTION

PUMP ASSEMBLY, tandem, see Figure 6-24 - 6-42

1шт.

15

218-5525

ELBOW,45 Degree, 1 5/16"-12 x 1 5/8"-12, 37 Degree

1-5/16-12 flare x 1-5/8-12 inch adjusting O-ring, 45°, Includes: Ref. 16

1шт.

16

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

17

H436153

HOSE ASSY.

HOSE, 915 mm/36 inch long, to tandem pump

1шт.

20

218-5187

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

1-5/16-12 inch adjusting O-ring branch x flare x flare, Includes: Ref. 21

1шт.

21

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-11/64 ID x 7/64 inch wide

1шт.

22

H673547

TUBE,25.4 mm OD x 395, 79 mm L

tee to filter

1шт.

23

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adjusting O-ring boss, Incl. Ref. 24

2шт.

24

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-11/64 ID x 7/64 inch wide

1шт.

25

D125507

FILTER

ASSEMBLY, hydraulic oil, see Figure 8-46, see Figure 2-08 for mounting bracket, Start Serial: JAF0037367

1шт.

26

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

2шт.

26a

496-21041

WASHER,13/32" x 13/16" x .089", HDN

flat, hardened, 13/32 x 13/16 x 3/32"

2шт.

27

H673506

TUBE,25.4 mm OD x 361, 119.8 mm L

hydraulic oil filter to check valve manifold

1шт.

28

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

1-5/16-12 inch flare x adjusting O-ring boss, 45°, Includes: Ref. 29

1шт.

29

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-11/64 ID x 7/64 inch wide

1шт.

S118383X

LARGE HOSE

HOSE bulk, 25/1 x 38/1-1/2 x 4877 mm/192 inch long

1шт.

30

D137500

MANIFOLD

ASSEMBL, check valve, see Figure 8-42

1шт.

31

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

hex, full threads, 10-1.5 x 35 mm

2шт.

32

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 20 x 2 mm

2шт.

33

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

hex, 5/16 NC x 2-3/4 inch

1шт.

34

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

hex, 5/16 NC x 2-1/2 inch

1шт.

35

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

35a

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

WASHER, LOCK, , if used Ext Tooth, 5/16"

1шт.

36

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

37

492-11038

LOCK WASHER,3/8"

2шт.

38

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

2шт.

39

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

40

238-5219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

Manifold check valve -219, 70 Duro, 1.296" ID x .139" Thk

1шт.

41

REF

INSTRUCTION

VALVE ASSEMBLY, loader control, see Figure 8-16 - 8-22 for correct assembly and component parts

1шт.

Выбрано товаров: 41
