Запчасти Case 1835C (8-28) - LOADER AND HYDROSTATIC DRIVE HYDRAULIC CIRCUIT RETURN LINES TO CHECK VALVE MANIFOLD AND OIL COOLER (08) - HYDRAULICS

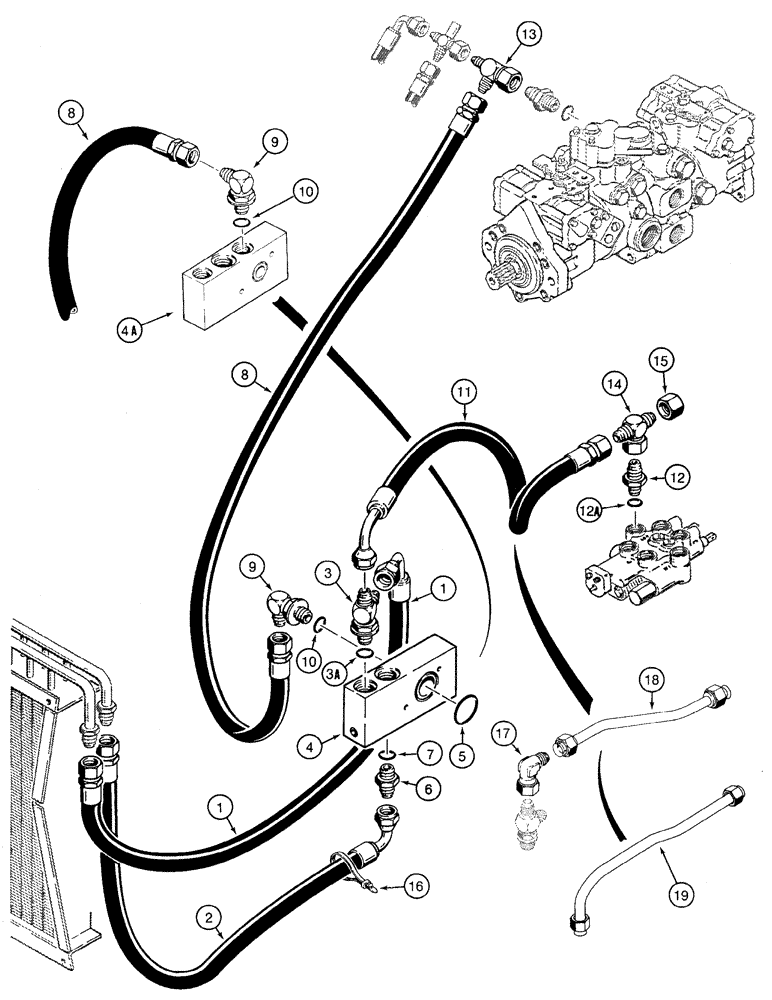

Схема запчастей Case 1835C - (8-28) - LOADER AND HYDROSTATIC DRIVE HYDRAULIC CIRCUIT RETURN LINES TO CHECK VALVE MANIFOLD AND OIL COOLER (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

D137610

HOSE ASSY.,19.05mm ID x 890mm L, SAE 100R3

HOSE, 890 mm/35 inch long, from oil cooler

1шт.

2

D137611

HOSE ASSY.

HOSE, 770 mm/30-5/16 inch long, to oil cooler, Serial Range: -JAF0037367

1шт.

2

D135863

HOSE,19.05mm ID x 750mm L, SAE 100R3

750 mm/29-1/2 inch long, to oil cooler, Start Serial: JAF0037367

1шт.

3

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1-1/16-12 inch flare branch x flare x adjusting O-ring boss, Includes: Ref. 3A

1шт.

3a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

4

D137500

MANIFOLD

ASSEMBLY, check valve, see Figure 8-42, Serial Range: -JAF0037879

1шт.

4a

104702A1

MANIFOLD

check valve, component parts not serviced separately, Start Serial: JAF0037879

1шт.

5

238-5219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

1шт.

6

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, 1-1/16-12 inch flare x O-ring boss

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

8

D134373

HOSE ASSY.,19.05mm ID x 1550mm L, SAE 100R1

HOSE, 1550 mm/61 inch long, manifold check valve to tandem pump, Serial Range: -JAF0037879

1шт.

8

D134373

HOSE ASSY.,19.05mm ID x 1550mm L, SAE 100R1

HOSE, 1550 mm/61 inch long, manifold check valve to tandem pump, Start Serial: JAF0118500

1шт.

8a

104703A1

HOSE ASSY.

HOSE, 1600 mm/63 inch long, manifold check valve to tandem pump, Serial Range: JAF0037879-JAF0118499

1шт.

9

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adjusting O-ring boss, Incl. Ref. 10

1шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

11

D137609

HOSE ASSY.

HOSE, 508 mm/20 inch long, loader control valve to manifold check valve, Serial Range: -JAF0037367

1шт.

12

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, 1-1/16-12 flare x 7/8-14 inch O-ring boss, Includes: Ref. 12A

1шт.

12a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

13

218-5488

TEE,37 Degree, 3/4"-16 x 1 1/16"-12, Fem Sw Run x 1 1/16"-12

1-1/16-12 flare branch x swivel x 3/4-16 inch flare, at tandem pump

1шт.

14

218-837

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

1-1/16-12 inch swivel branch x flare x flare, at loader control valve

1шт.

15

218-335

CAP,37 Degree, 1 1/16"-12

hex, 1-1/16-12 inch, used on models without auxiliary hydraulics

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

17

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

, Start Serial: JAF0037367

1шт.

18

H673505

TUBE,19.05 mm OD x 345, 127 mm L

loader control valve to manifold check valve, Serial Range: JAF0037367-JAF0037879

1шт.

19

113806A1

TUBE,19.05 mm OD, 369, 148 mm Length

loader control valve to manifold check valve

1шт.

Выбрано товаров: 25
