Запчасти Case 1835C (8-26) - HYDROSTATIC DRIVE HYDRAULIC CIRCUIT TANDEM PUMP TO DRIVE MOTORS (08) - HYDRAULICS

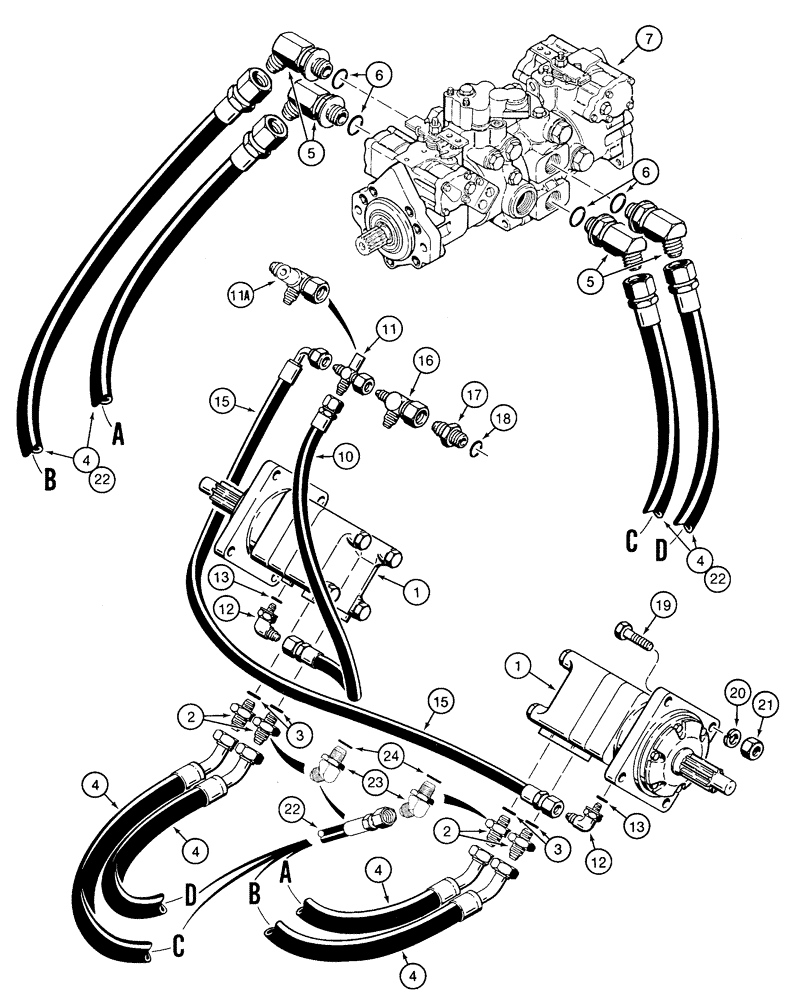

Схема запчастей Case 1835C - (8-26) - HYDROSTATIC DRIVE HYDRAULIC CIRCUIT TANDEM PUMP TO DRIVE MOTORS (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

MOTOR ASSEMBLY, hydraulic drive, see Figure 6-42, 6-46, 6-48 and 6-50

2шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, 1-1/16-12 inch flare x O-ring boss, used with Ref. 4 hose, Incl. Ref. 3

4шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

4

D125526

HOSE ASSY.

HOSE, 1100 mm/43-5/16 inch long, used with Ref. 2 adapter, no longer available, order P/N H435736 hose and 218-5138 elbow

4шт.

5

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

1-5/16-12 inch flare x adjusting O-ring boss, 45°, Includes: Ref. 6

4шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-11/64 ID x 7/64 inch wide

1шт.

7

REF

INSTRUCTION

PUMP ASSEMBLY, tandem, see Figure 6-24 - 6-42

1шт.

10

H195750

HYDRAULIC HOSE,9.52 mm ID x 355.60 mm, SAE 100R1

9.52 mm ID x 355.60 mm, Left-Hand Drive Motor to Manifold, Serial Range: -JAF0037367

1шт.

10

H436667

HOSE ASSY.

HOSE, 356 mm/14 inch long, left-hand drive motor to manifold, Start Serial: JAF0037367

1шт.

11

D121814

FITTING

MANIFOLD adapter, left-hand drive motor hose to tandem pump, no longer available, order P/N H435873 manifold, Ref. 11A

1шт.

11a

H435873

TEE

MANIFOLD adapter, left-hand drive motor hose to tandem pump

1шт.

12

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

3/4-16 flare x 9/16-18 inch adjusting O-ring boss, 90°, Includes: Ref. 13

2шт.

15

D125524

HOSE ASSY.

HOSE, 660 mm/26 inch long, right-hand drive motor to manifold, Serial Range: -JAF0037367

1шт.

15

H436616

HOSE ASSY.

HOSE, 650 mm/25-1/2 inch long, right-hand drive motor to manifold, Start Serial: JAF0037367

1шт.

16

218-5488

TEE,37 Degree, 3/4"-16 x 1 1/16"-12, Fem Sw Run x 1 1/16"-12

1-1/16-12 flare branch x swivel x 3/4-16 inch flare

1шт.

17

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 18

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

19

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

hex, 5/8 NC x 2-1/4 inch, use with P/N H673511 motor

8шт.

19

428-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 8

hex, 5/8 NF x 2 inch, grade 8, use with P/N 141388A2 and 230462A1 motors

8шт.

20

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

21

425-1010

NUT,5/8"-11, G5

Use with P/N H673511 motor 5/8"-11, G5

8шт.

21

429-1110

NUT,5/8"-18, G8

Use with P/N 141388A2 and 230462A1 motors 5/8"-18, G8

8шт.

22

H435736

HOSE ASSY.,19.05mm ID x 1100mm L, SAE 100R12

HOSE, 1100 mm/43-5/16 inch long, used with Ref. 23 elbow, drive motors to tandem pump

4шт.

23

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1-1/16-12 inch flare x adjusting O-ring boss, used with Ref. 22 hose, 45°, Includes: Ref. 24

4шт.

24

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
