Запчасти Case 1835C (8-20) - LOADER CONTROL VALVE USED ON MODELS WITH SELF-LEVELING PRIOR TO P.I.N. JAF0118550 (08) - HYDRAULICS

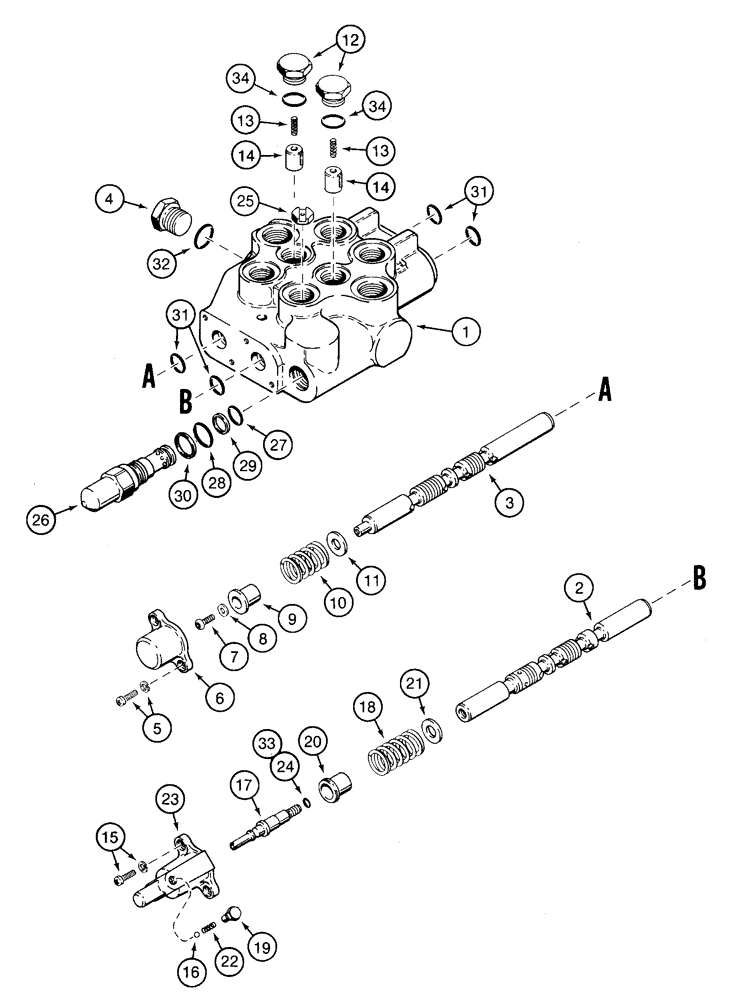

Схема запчастей Case 1835C - (8-20) - LOADER CONTROL VALVE USED ON MODELS WITH SELF-LEVELING PRIOR TO P.I.N. JAF0118550 (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

H674275

VALVE

ASSEMBLY, loader control, can be serviced with P/N 108222A1 valve assembly, see Figure 8-22, mounting hardware see Figure 8-37, Includes: Ref. 1 - 30

1шт.

1

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL loader lift

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL loader bucket

1шт.

4

132547A1

PLUG

hex, power beyond, Replaces: P/N H436435 plug

1шт.

H673571

KIT

centering spring, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

SCREW includes lock washer, end cap

2шт.

6

N9528

CAP

bucket spool end

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW spring seat, bucket spool

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER spring seat, bucket spool

1шт.

9

N9529

SEAT

spring, bucket spool

1шт.

10

N9539

TENSION SPRING

SPRING centering, bucket spool

1шт.

11

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

142999A1

KIT

load check, Replaces: P/N H673572 kit, Includes: Ref. 12 - 14

2шт.

12

NSS

NOT SOLD SEPARAT

PLUG load check

1шт.

13

NSS

NOT SOLD SEPARAT

SPRING load check

1шт.

14

NSS

NOT SOLD SEPARAT

POPPET load check

1шт.

H673573

KIT

detent float, Includes: Ref. 15 - 24

1шт.

15

NSS

NOT SOLD SEPARAT

SCREW, includes lock washer, detent float

2шт.

16

NSS

NOT SOLD SEPARAT

BALL detent cap

2шт.

17

NSS

NOT SOLD SEPARAT

SPOOL detent

1шт.

18

D86558

SPRING

return

1шт.

19

D86560

SCREW

PLUG detent

2шт.

20

D86559

SEAT

spring, lift spool

1шт.

21

D86557

WASHER

lift spool

1шт.

22

N9506

COIL SPRING

SPRING detent

2шт.

23

N9540

COVER

HOUSING detent

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING detent spool

1шт.

25

H436436

PLATE

orifice

1шт.

26

H673574

VALVE, PRESSURE RELI

VALVE ASSEMBLY main relief, Includes Ref. 27 - 37

1шт.

H674535

GASKET KIT

KIT seal, main relief valve, Includes: Ref. 27 - 37

1шт.

H673570

SEAL PACKAGE

Seal Kit, Incl 27 - 30

1шт.

27

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

Relief valve, inner -017, 90 Duro, .676" ID x .070" Thk

1шт.

28

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

Relief valve, outer -015, 90 Duro, .551" ID x .070" Thk

1шт.

29

H438329

GASKET

RING backup, relief valve, inner

1шт.

30

H438044

GASKET

RING backup, relief valve, outer

1шт.

35

H438328

SEAL,7.94mm ID x 11.11mm OD x 1.59mm Thk

Teflon, not shown

1шт.

36

H438228

NUT

relief valve, not shown

1шт.

37

H438229

ADJUSTMENT SCREW

relief valve, not shown

1шт.

H673569

KIT

seal, Includes: Ref. 32 - 34

1шт.

31

H438030

O-RING

valve body

4шт.

32

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Power beyond plug

1шт.

33

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Detent spool

2шт.

34

NSS

NOT SOLD SEPARAT

O-RING load check plug

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.

H673570

SEAL PACKAGE

KIT seal, external, main relief valve, Includes: Ref. 27 - 30

1шт.

27

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

1шт.

28

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

29

H438329

GASKET

RING backup

1шт.

30

H438044

GASKET

RING backup

1шт.
