Запчасти Case 1835C (8-14) - LOADER CONTROL VALVE, PRIOR TO P.I.N. JAF0037367 (08) - HYDRAULICS

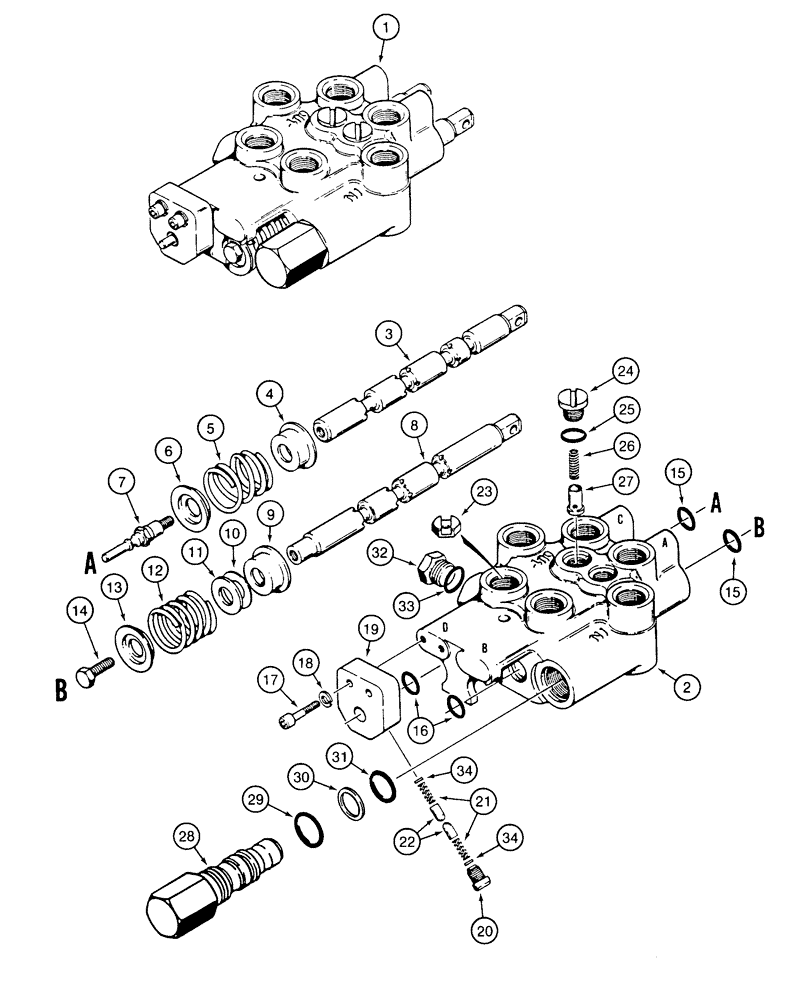

Схема запчастей Case 1835C - (8-14) - LOADER CONTROL VALVE, PRIOR TO P.I.N. JAF0037367 (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

D130068

VALVE

ASSEMBLY, loader control, two spool, no longer available, order P/N H674734 valve on Figure 8-16, Includes: Ref. 2 - 27

1шт.

2

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL loader lift

1шт.

4

H138271

WASHER

RETAINER spring

1шт.

5

F59118

SPRING

centering, spool

1шт.

6

F59116

WASHER

SEAT spring

1шт.

7

H139071

SCREW,1/4" - 20

STUD spool end, special

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL loader bucket

1шт.

9

H52902

CAP

RETAINER spring

1шт.

10

F8235

WASHER

flat, special, 1/16 inch/2 mm thick

1шт.

11

H746164

WASHER

special, 4 mm/5/32 inch thick

1шт.

12

F59118

SPRING

centering, spool

1шт.

13

F59116

WASHER

SEAT spring

1шт.

14

H428292

SCREW,1/4" - 20 x 0.972"

BOLT hex, special

1шт.

15

F37887

O-RING

valve body, spool eye end

2шт.

16

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

Valve body, detent and relief end -114, 70 Duro, .612" ID x .103" Thk

2шт.

17

61-32516

HEX SOC SCREW,1/4"-20 x 1"

BOLT hex socket, 1/4 NC x 1 inch

2шт.

18

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

19

H125831

BLOCK

detent

1шт.

20

H424200

PLUG

detent

1шт.

21

H105049

SPRING

detent

2шт.

22

H104992

PAWL

DETENT spool

2шт.

23

D73659

FITTING

RESTRICTOR valve port

1шт.

24

H47506

PLUG

ASSEMBLY, load check valve

2шт.

25

238-7112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

1шт.

26

FH730374

SPRING

load check valve

2шт.

27

FH730366

PLUNGER

POPPET load check valve

2шт.

N9485

VALVE

ASSEMBLY, relief, control valve, Includes: Ref. 28 - 31

1шт.

28

NSS

NOT SOLD SEPARAT

VALVE relief, control valve

1шт.

29

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

large -116, 90 Duro, .737" ID x .103" Thk

1шт.

30

N9711

BACK-UP RING,0.688" ID x 0.807" OD x 0.059"

backup, small

1шт.

31

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

-017, 70 Duro, .676" ID x .070" Thk, Small

1шт.

32

H94219

PLUG

ASSEMBLY hex, used on models without auxiliary hydraulics, Includes: Ref. 33

1шт.

33

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

Plug -116, 70 Duro, .737" ID x .103" Thk

1шт.

34

H141788

DISC

detent

1шт.

Выбрано товаров: 35
