Запчасти Case 1835C (8-12) - LOADER BUCKET HYDRAULIC CIRCUIT USED ON MODELS WITHOUT SELF-LEVELING P.I.N. JAF0037367 AND AFTER (08) - HYDRAULICS

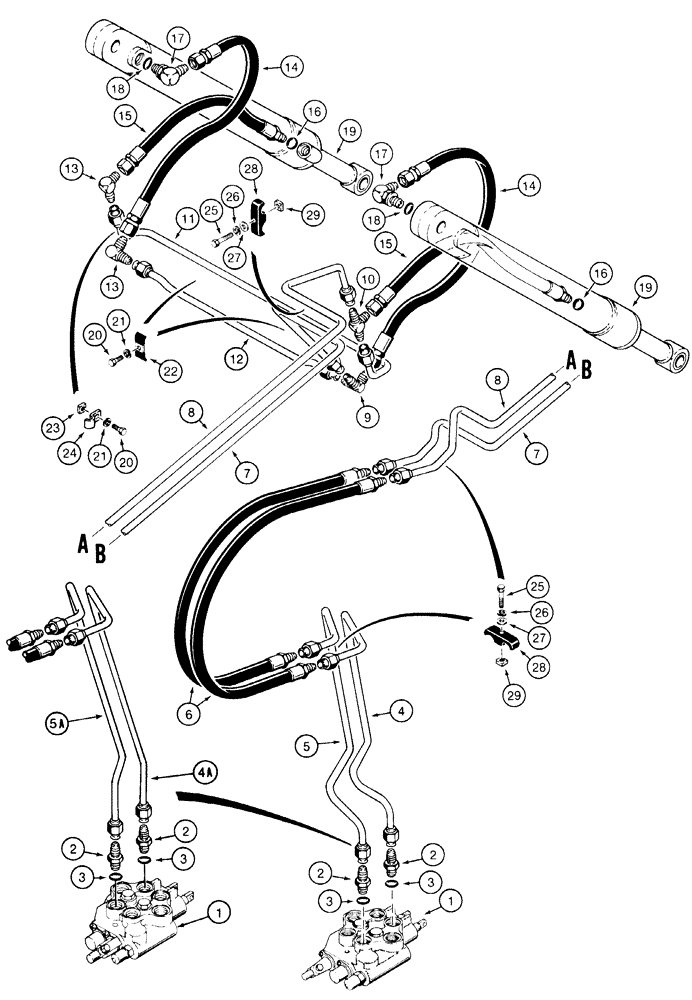

Схема запчастей Case 1835C - (8-12) - LOADER BUCKET HYDRAULIC CIRCUIT USED ON MODELS WITHOUT SELF-LEVELING P.I.N. JAF0037367 AND AFTER (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

H674734

VALVE

ASSEMBLY, loader control, see Figure 8-16, Serial Range: -JAF0118550

1шт.

1

108222A1

VALVE

ASSEMBLY, loader control, see Figure 8-22, Start Serial: JAF0118550

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

H673267

TUBE ASSY.,12.7 mm OD x 407, 396 mm L

TUBE, at control valve, port "A", front, use with P/N H674734 valve

1шт.

4a

129366A1

TUBE

at control valve, port "A", front, use with P/N 108222A1 valve

1шт.

5

H673268

TUBE ASSY.,12.7 mm OD x 341, 480 mm L

TUBE, at control valve, port "B", rear, use with P/N H674734 valve

1шт.

5a

129368A1

TUBE

at control valve, port "B", rear, use with P/N 108222A1 valve

1шт.

6

D124674

HOSE,9.53mm ID x 950mm L, SAE 100R2

950 mm/37-13/32 inch long

2шт.

7

H673482

TUBE ASSY.,12.7 mm OD

TUBE intermediate, to closed end of bucket tilt cylinder

1шт.

8

H673483

TUBE ASSY.,12.7 mm OD x 341, 480 mm L

TUBE intermediate, to rod end of bucket tilt cylinder

1шт.

9

D124661

ELBOW

MANIFOLD hose and crossover tube, to closed end of bucket tilt cylinders

1шт.

10

218-594

TEE,3/4"-16, 37 Degree

3/4-16 inch flare branch x flare x flare

1шт.

11

D139303

TUBE ASSY.

TUBE crossover, to rod end of bucket tilt cylinders

1шт.

12

D139301

TUBE ASSY.

TUBE crossover, to rod end of bucket tilt cylinder

1шт.

13

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

2шт.

14

D54382

HOSE ASSY.,9.53mm ID x 381mm L, SAE 100R2

HOSE, 381 mm/15 inch long, to closed end of bucket tilt cylinder

2шт.

15

D137692

HOSE ASSY.,9.53mm ID x 430mm L

HOSE, 430 mm/16-15/16 inch long, to rod end of bucket tilt cylinder, Includes: Ref. 16

2шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

17

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

3/4-16 inch flare x adjusting O-ring boss, 90°, Includes: Ref. 18

2шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

19

G103407

CYLINDER

ASSEMBLY, 64/2-1/2 ID x 403 mm/15-7/8 inch stroke, see Fig 8-76, no longer available, order P/N 118110A1 cylinder

2шт.

19

118110A1R

REMAN-HYD CYLINDER

1835C CASE UNI LOADER SKID STEER LOADER, WITHOUT SELF-LEVELING P.I.N. JAF0037367 AND AFTER, ASSEMBLY, Reman for New PN G103407

2шт.

19

118110A1C

CORE-HYD CYLINDER

Return Number

2шт.

19

118110A1

CYLINDER,Double Acting, 31.8mm Rod, 402.6mm Stroke

ASSEMBLY, 65/2-1/2 ID x 403 mm/15-7/8 inch stroke, see Figure 8-78

2шт.

19

118110A1R

REMAN-HYD CYLINDER

1835C CASE UNI LOADER SKID STEER LOADER, P.I.N. JAF0037367 AND AFTER, ASSEMBLY

2шт.

19

118110A1C

CORE-HYD CYLINDER

Return Number

2шт.

20

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

3шт.

21

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

22

R17319

CLAMP

crossover tubes

2шт.

23

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

square, 5/16 inch NC

1шт.

24

D140709

CLAMP

crossover tube, to rod end of tilt cylinder

1шт.

25

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

3шт.

26

492-11038

LOCK WASHER,3/8"

3шт.

27

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

3шт.

28

D120679

CLAMP,Tube, 1/2"

plastic, tube

3шт.

29

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

3шт.
