Запчасти Case 1835C (8-08) - LOADER BUCKET HYDRAULIC CIRCUIT, PRIOR TO P.I.N. JAF0037367 (08) - HYDRAULICS

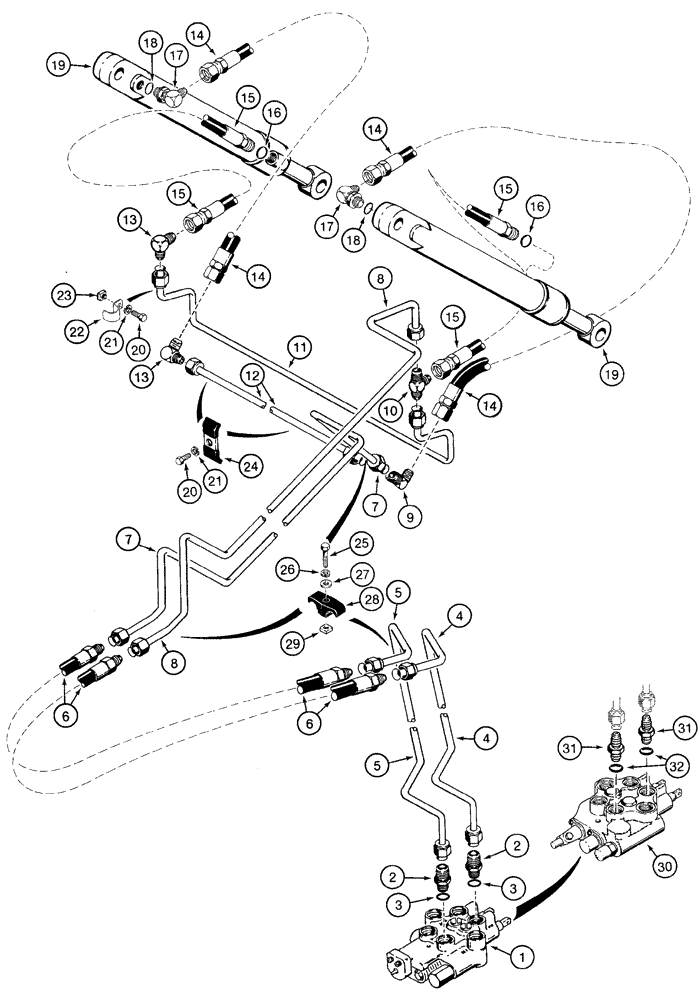

Схема запчастей Case 1835C - (8-08) - LOADER BUCKET HYDRAULIC CIRCUIT, PRIOR TO P.I.N. JAF0037367 (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

D130068

VALVE

ASSEMBLY, loader control, see Figure 8-14, no longer available, order P/N H674734 valve, Ref. 30, see Figure 8-16, Serial Range: -JAF0037367

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, Ref 3 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

D137683

TUBE ASSY.

TUBE, at control valve, port "A"

1шт.

5

D137681

TUBE, at control valve, port "B"

1шт.

6

D124674

HOSE,9.53mm ID x 950mm L, SAE 100R2

950 mm/37-13/32 inch long, at loader arm

2шт.

7

D139297

TUBE ASSY.

TUBE intermediate, to closed end of bucket tilt cylinders

1шт.

8

D139299

TUBE ASSY.

TUBE intermediate, to rod end of bucket tilt cylinders

1шт.

9

D124661

ELBOW

MANIFOLD hose, and crossover tube to closed end of bucket tilt cylinders

1шт.

10

218-594

TEE,3/4"-16, 37 Degree

3/4-16 inch flare branch x flare x flare

1шт.

11

D139303

TUBE ASSY.

TUBE crossover, to rod end of bucket tilt cylinders

1шт.

12

D139301

TUBE ASSY.

TUBE crossover, to rod end of bucket tilt cylinder

1шт.

13

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

2шт.

14

D54382

HOSE ASSY.,9.53mm ID x 381mm L, SAE 100R2

HOSE, 381 mm/15 inch long, to closed end of bucket tilt cylinders

2шт.

15

D137692

HOSE ASSY.,9.53mm ID x 430mm L

HOSE, 430 mm/16-15/16 inch long, to rod end of bucket tilt cylinders, Includes: Ref. 16

2шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

17

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

3/4-16 inch flare x adjusting O-ring boss, Includes: Ref. 18

2шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

19

118110A1

CYLINDER,Double Acting, 31.8mm Rod, 402.6mm Stroke

ASSEMBLY, 65/2-1/2 ID x 403 mm/15-7/8 inch stroke, bucket tilt, see Figure 8-78, Replaces: P/N G103407 cylinder assembly

2шт.

19

118110A1R

REMAN-HYD CYLINDER

1835C CASE UNI LOADER SKID STEER LOADER, PRIOR TO P.I.N. JAF0037367, ASSEMBLY

2шт.

19

118110A1C

CORE-HYD CYLINDER

Return Number

2шт.

20

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

3шт.

21

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

22

49778

CLAMP

crossover tube to rod end of bucket tilt cylinders

1шт.

23

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

square, 5/16 inch NC

1шт.

24

R17319

CLAMP

crossover tubes

2шт.

25

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

3шт.

26

492-11038

LOCK WASHER,3/8"

3шт.

27

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

3шт.

28

D120679

CLAMP,Tube, 1/2"

plastic, tube

3шт.

29

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

3шт.

30

H674734

VALVE

ASSEMBLY, loader control, see Figure 8-16, Serial Range: -JAF0037367

1шт.

31

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADARefeRefef. 32

2шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
