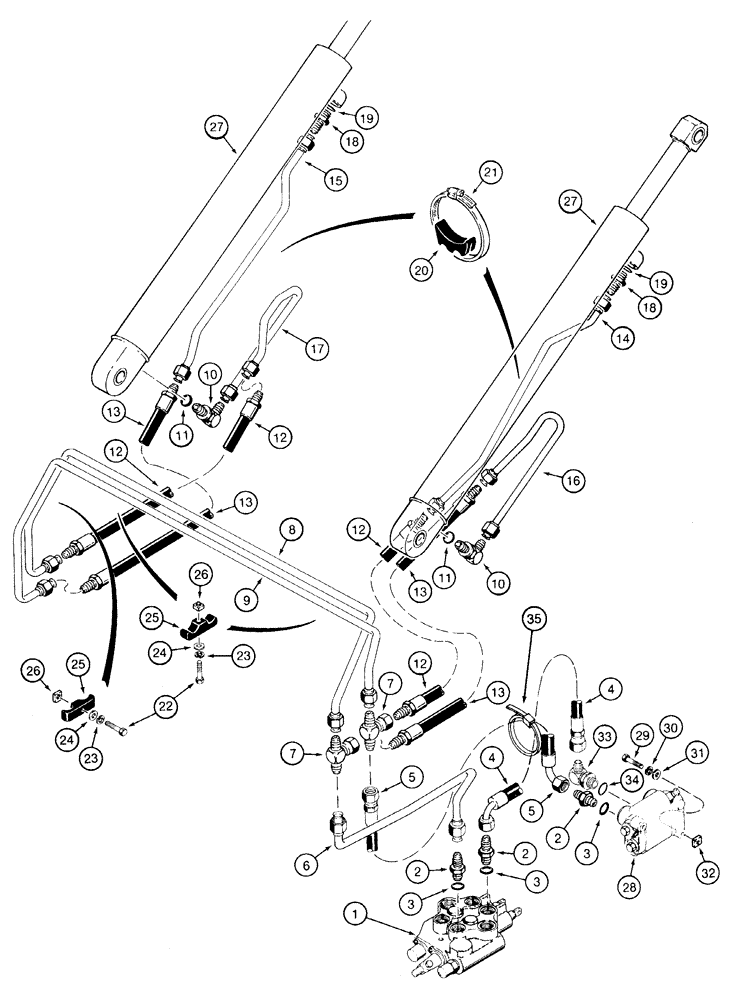

Запчасти Case 1835C (8-06) - LOADER LIFT HYDRAULIC CIRCUIT WITH SELF-LEVELING P.I.N. JAF003767 THROUGH P.I.N. JAF0130837 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY, loader control, see Figure 8-20 and 8-22

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 3

3шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

H437668

HOSE

690 mm/27-5/32 inch long, loader control valve to self-leveling valve

1шт.

5

H437669

HOSE

780 mm/30-11/16 inch long

1шт.

6

H673924

PIPE ASSY.,0.5" OD

TUBE, at control valve, port "D", rear

1шт.

7

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

3/4-16 inch swivel branch x flare x flare

2шт.

8

H673695

TUBE,12.7 mm OD

crossover, to closed end of lift cylinders

1шт.

9

H673696

TUBE,0.5" OD

crossover, to rod end of lift cylinders

1шт.

10

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

3/4-16 inch flare x adjusting O-ring boss, 90°, Includes: Ref. 11

2шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

H436410

HYDRAULIC HOSE,9.53mm ID x 400mm L

- To closed end of LH lift cylinder and rod end of RH lift cylinder 9.52 mm ID x 400.00 mm

2шт.

13

H436409

HYDRAULIC HOSE,9.53mm ID x 475mm L

- To rod end of LH lift cylinder and to closed end of RH lift cylinder 9.52 mm ID x 475.00 mm

2шт.

14

D125480

TUBE ASSY.

TUBE, to rod end of right-hand lift cylinder

1шт.

15

H673439

TUBE ASSY.,0.5" OD

TUBE, to rod end of left-hand lift cylinder

1шт.

16

D125488

TUBE ASSY.

TUBE, to closed end of right-hand lift cylinder

1шт.

17

H673438

TUBE ASSY.,0.5" OD

TUBE, to closed end of left-hand lift cylinder

1шт.

18

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 19

2шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

20

R24703

SUPPORT

rubber, tubes to lift cylinder

2шт.

21

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP adjusting, 3-1/16 - 4 inch diameter, tube support

2шт.

22

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

3шт.

23

492-11038

LOCK WASHER,3/8"

3шт.

24

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

3шт.

25

D120679

CLAMP,Tube, 1/2"

plastic, tube

3шт.

26

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

3шт.

27

G110666

CYLINDER

ASSEMBLY, 64/2-1/2 ID x 679 mm/26-3/4 inch stroke, see Figure 8-72, Serial Range: JAF0037367-JAF0130838

2шт.

27

117824A1

CYLINDER,Double Acting, 38.1mm Rod, 679.4mm Stroke

ASSEMBLY, 64/2-1/2 ID x 679 mm/26-3/4 inch stroke, see Figure 8-74, Start Serial: JAF0130838

2шт.

28

H673705

VALVE

ASSEMBLY, self-leveling, see Figure 8-24

1шт.

29

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

2шт.

30

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

31

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

32

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

square, 5/16 inch NC

2шт.

33

H439269

ELBOW

special, 90°, Includes: Ref. 34

1шт.

34

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

35

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.
