Запчасти Case 1835C (8-04) - LOADER LIFT HYDRAULIC CIRCUIT USED ON MODELS WITHOUT SELF-LEVELING (08) - HYDRAULICS

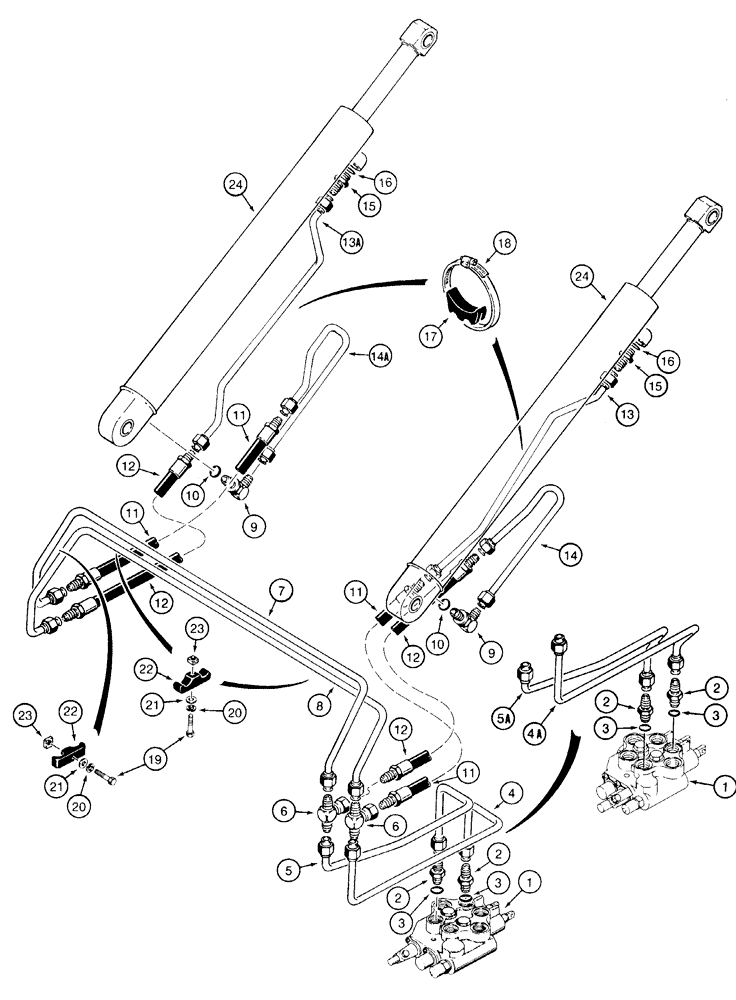

Схема запчастей Case 1835C - (8-04) - LOADER LIFT HYDRAULIC CIRCUIT USED ON MODELS WITHOUT SELF-LEVELING (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY, loader control, see Figure 8-16 and 8-22

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

H673507

TUBE,0.5" OD

at control valve, port "C", front, use with control valves P/N's H673218, H674307, or H674734 see Figure 8-16

1шт.

4a

129370A1

TUBE

at control valve, port "C", front, use with control valve P/N 108222A1

1шт.

5

H673509

TUBE,0.5" OD

at control valve, port "D", rear, use with control valves P/N's H673218, H674307, or H674734 see Figure 8-16

1шт.

5a

H673924

PIPE ASSY.,0.5" OD

TUBE, at control valve, port "D", rear, use with control valve P/N 108222A1

1шт.

6

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

3/4-16 inch swivel branch x flare x flare

2шт.

7

H673695

TUBE,12.7 mm OD

crossover, to closed end of lift cylinders

1шт.

8

H673696

TUBE,0.5" OD

crossover, to rod end of lift cylinders

1шт.

9

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

3/4-16 inch flare x adjusting O-ring boss, 90°, Includes: Ref. 10

2шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

11

H436410

HYDRAULIC HOSE,9.53mm ID x 400mm L

- To rod end of RH and closed end of LH lift cylinder 9.52 mm ID x 400.00 mm

2шт.

12

H436409

HYDRAULIC HOSE,9.53mm ID x 475mm L

- To closed end of RH and rod end of LH lift cylinder 9.52 mm ID x 475.00 mm

2шт.

13

D125480

TUBE ASSY.

TUBE, to rod end of right-hand lift cylinder

1шт.

13a

H673439

TUBE ASSY.,0.5" OD

TUBE, to rod end of left-hand lift cylinder

1шт.

14

D125488

TUBE ASSY.

TUBE, to closed end of right-hand lift cylinder

1шт.

14a

H673438

TUBE ASSY.,0.5" OD

TUBE, to closed end of left-hand lift cylinder

1шт.

15

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 16

2шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

17

R24703

SUPPORT

rubber, tubes to lift cylinder

2шт.

18

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP adjusting, 3-1/16-4 inch diameter

2шт.

19

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

3шт.

20

492-11038

LOCK WASHER,3/8"

3шт.

21

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

3шт.

22

D120679

CLAMP,Tube, 1/2"

plastic, tube

3шт.

23

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

3шт.

24

117824A1

CYLINDER,Double Acting, 38.1mm Rod, 679.4mm Stroke

ASSEMBLY, 64/2-1/2 ID x 679 mm/26-3/4 inch stroke, loader lift, see Figure 8-74, Replaces: P/N G110666 cylinder assembly

2шт.

Выбрано товаров: 28
