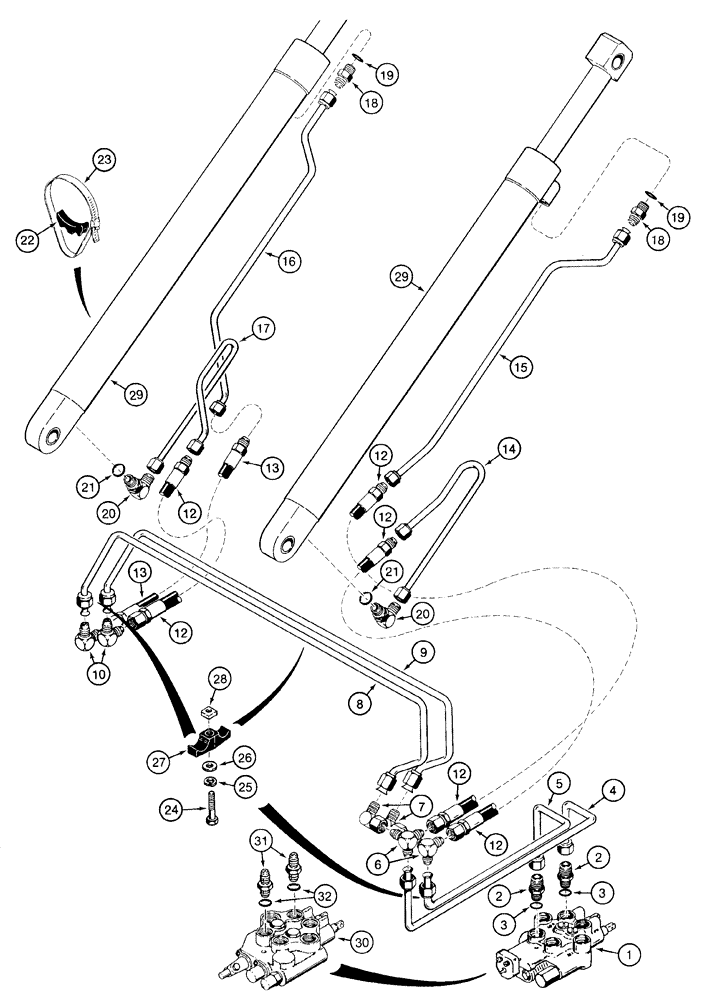

Запчасти Case 1835C (8-02) - L0ADER LIFT HYDRAULIC CIRCUIT USED PRIOR TO P.I.N. JAF0037367 (08) - HYDRAULICS

1

D130068

VALVE

ASSEMBLY, loader control, see Figure 8-14, no longer available, order P/N H674734, see parts list Figure 8-16, Serial Range: -JAF0037367

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, Ref 3 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

D134232

TUBE ASSY.

TUBE, at control valve, port "C"

1шт.

5

D134230

TUBE ASSY.

TUBE, at control valve, port "D"

1шт.

6

D124661

ELBOW

MANIFOLD hose, right-hand hoses and crossover tubes to left-hand lift cylinder

2шт.

7

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

3/4-16 inch flare x swivel, 90°

2шт.

8

D134218

TUBE ASSY.

TUBE crossover, to rod end of lift cylinders

1шт.

9

D134216

TUBE ASSY.

TUBE crossover, to closed end of lift cylinders

1шт.

10

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

2шт.

12

D125867

HOSE

451 mm/17-3/4 inch long, to rod and closed ends of right-hand lift cylinder and to the closed end of left-hand lift cylinder

3шт.

13

D134910

HOSE ASSY.

HOSE, 524 mm/20-5/8 inch long, to rod end of left-hand lift cylinder

1шт.

14

D125488

TUBE ASSY.

TUBE, to closed end of right-hand lift cylinder

1шт.

15

D125480

TUBE ASSY.

TUBE, to rod end of right-hand lift cylinder

1шт.

16

D125482

TUBE ASSY.

TUBE, to rod end of left-hand lift cylinder

1шт.

17

D125490

TUBE ASSY.

TUBE, to closed end of left-hand lift cylinder

1шт.

18

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 19

2шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

20

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

3/4-16 inch flare x adjusting O-ring boss,90°, Includes: Ref. 21

2шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

22

R24703

SUPPORT

rubber, tubes to lift cylinder

2шт.

23

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP adjusting, 2-13/16-3-3/4 inch diameter

2шт.

24

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

3шт.

25

492-11038

LOCK WASHER,3/8"

3шт.

26

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

3шт.

27

D120679

CLAMP,Tube, 1/2"

plastic, tube

3шт.

28

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

3шт.

29

117824A1

CYLINDER,Double Acting, 38.1mm Rod, 679.4mm Stroke

ASSEMBLY, 64/2-1/2 ID x 679 mm/26-3/4 inch stroke, loader lift, see parts list Figure 8-74, Replaces: P/N G110666 cylinder assembly

2шт.

30

H674734

VALVE

ASSEMBLY, loader control, see Figure 8-16, Serial Range: -JAF0037367

1шт.

31

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADARefeRefef. 32

2шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
