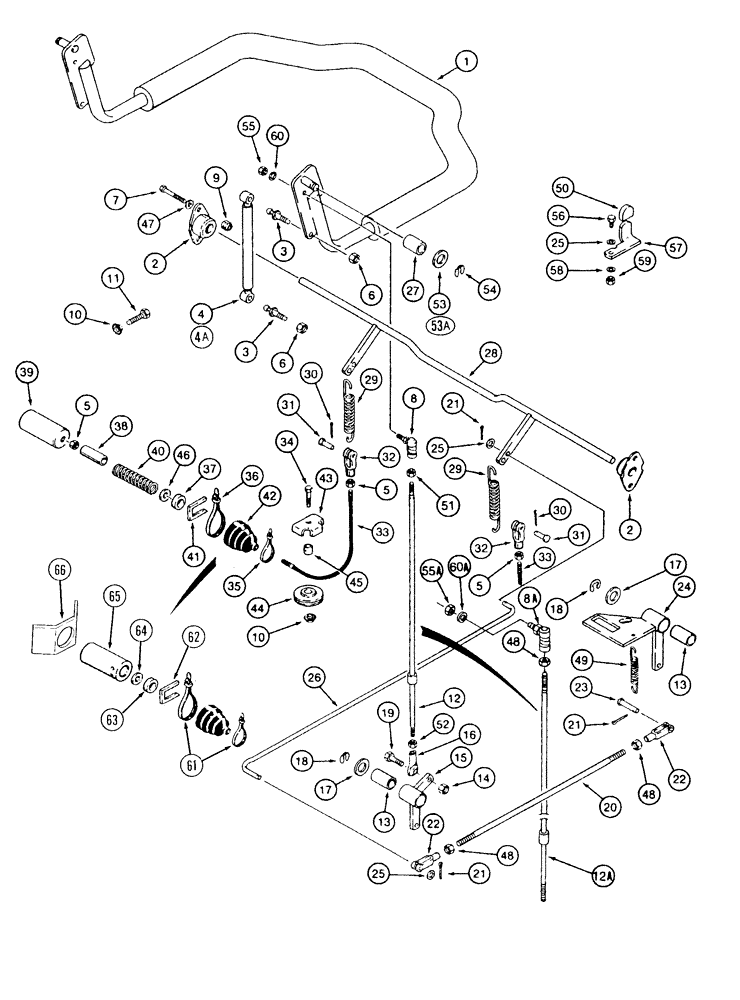

Запчасти Case 1835C (7-16) - PARKING LATCH AND SEAT BAR USED ON MODELS WITH SINGLE SEAT BAR (07) - BRAKES

1

128561A1

BAR ASSY.

BAR restraint, used on brown models, with Ref. 8

1шт.

1

128561A2

BAR ASSY.

BAR restraint, used on brown models, with Ref. 8A

1шт.

1

179833A1

BAR ASSY.

BAR seat, used on grey models, with Ref. 8A

1шт.

2

R29593

FLANGED BEARING,1.125" OD x 0.562"

BEARING flange, pivot shaft

2шт.

3

1340345C1

BALL STUD

STUD ball

2шт.

4

128461A2

GAS STRUT

CYLINDER seat bar, Includes: Ref. 4A

1шт.

4a

243699A1

CONNECTOR, ELEC

CONNECTOR cylinder end

1шт.

5

425-144

JAM NUT,Jam, 1/4"-20, G5

hex, jam, 1/4 inch NC

4шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

2шт.

7

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

hex, 1/4 NC x 3/4 inch

4шт.

8

H169920

BALL JOINT

JOINT ball, 1/4 inch NF, used with Ref. 12

1шт.

8a

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

JOINT ball, female, 5/16 inch NF, used with Ref. 12A

1шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

10

231-5146

FLANGE NUT,3/8"-16

4шт.

11

113-2296

BOLT,Hex, 3/8" - 16 x 2", Gr 5, Full Thd

2шт.

12

140424A1

THREADED ROD

ROD, seat bar to control pivot, used with Ref. 8

1шт.

12a

140424A2

ROD

seat bar to control pivot, used with Ref. 8A

1шт.

13

119616A1

BUSHING

bronze

2шт.

14

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

15

132431A1

PITMAN

BELLCRANK cross shaft

1шт.

16

A32398

BALL JOINT

JOINT ball, female, 3/8 inch NF

1шт.

17

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER special, hardened

4шт.

18

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

RING retaining, loader lock

2шт.

19

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch

1шт.

20

132444A1

STEM

ROD control pivot

1шт.

21

432-610

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

3шт.

22

213-125

ADJUSTABLE CLEVIS,5/16" - 32

CLEVIS - adjustable, 5/16 inch NF

2шт.

23

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

1шт.

24

132437A1

PITMAN

PLATE lock

1шт.

25

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

26

136217A1

ROD

brake actuating

1шт.

27

136209A1

BUSHING,12.77mm ID x 19.12mm OD x 25.53mm L

pivot

2шт.

28

132440A1

LEVER

SHAFT parking brake

1шт.

29

D127347

SPRING

cable connecting

2шт.

30

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

RETAINER clevis pin, special

2шт.

31

D23693

AXLE PIN

PIN clevis, 1/4 x 1 inch long

2шт.

32

H169300

CLEVIS

adjustable, 1/4 inch NC

2шт.

33

H438180

CABLE

at pulleys, lower

2шт.

34

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

2шт.

35

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

2шт.

36

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

2шт.

37

D70742

SPACER

SLEEVE spring

2шт.

38

H435266

SPACER

tubular

2шт.

39

D64228

PIN,25.45mm OD x 53.34mm L

parking brake latch

2шт.

40

D91040

SPRING

parking brake latch

2шт.

41

H438614

CLIP

retaining

2шт.

42

D70018

BOOT

rubber, seal

2шт.

43

D124466

RETAINER

cable pulley

2шт.

44

D124465

PULLEY,54mm OD

cable

2шт.

45

D95743

SPACER

cable pulley, Replaces: P/N D95559 spacer

2шт.

46

495-81108

WASHER,.281" x 1" x .109"

flat, 9/32 x 1 x 1/8 inch

2шт.

47

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

48

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16" - 24 NF

3шт.

49

D124939

SPRING

lock, control lever

1шт.

50

140377A1

HANDLE

GRIP vinyl

1шт.

51

425-154

JAM NUT,Jam, 1/4"-28, G5

hex, jam, 1/4 inch NF

1шт.

52

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

53

95-81207

WASHER,0.53" ID x 0.81" OD x 0.07" Thk

flat, 17/32 x 13/16 x 1/16 inch, if used

2шт.

53a

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

flat, 17/32 x 1 x 1/16 inch, Replaces: P/N 195-2051, if used

2шт.

54

D143415

SNAP RING,0.50” ID, Klipring

RING retaining

2шт.

55

425-114

NUT,1/4"-28, G5

If used 1/4"-28, G5

1шт.

55a

425-115

NUT,5/16"-24, G5

hex, 5/16 inch NF, if used

1шт.

56

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, 5/16 NC x 1 inch

1шт.

57

140013A1

LATCH

seat bar

1шт.

58

140381A1

WASHER

special

1шт.

59

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

60

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , If used 1/4"

1шт.

60a

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , if used 5/16"

1шт.

109017A1

SET

KIT service, parking brake tube, includes instruction sheet, Includes: Ref. 61 - 66

2шт.

61

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

2шт.

62

H438614

CLIP

retaining

1шт.

63

D70742

SPACER

SLEEVE spring

1шт.

64

495-81108

WASHER,.281" x 1" x .109"

flat, 9/32 x 1 x 1/8 inch

1шт.

65

108918A1

TUBE,25.91 mm ID, 44.4 mm OD

brake

1шт.

66

D136906

BRACKET

support

1шт.
