Запчасти Case 1835C (7-10) - PARKING LATCH AND SEAT BARS USED ON MODELS WITH DUAL SEAT BARS AND ONE PULLEY PER SIDE (07) - BRAKES

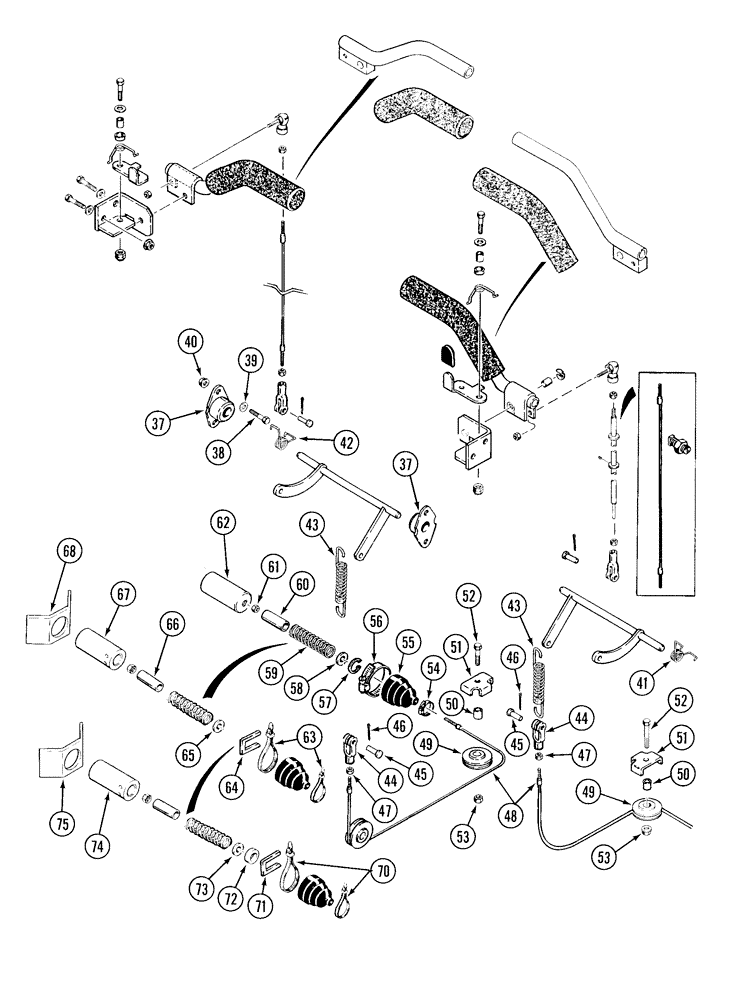

Схема запчастей Case 1835C - (7-10) - PARKING LATCH AND SEAT BARS USED ON MODELS WITH DUAL SEAT BARS AND ONE PULLEY PER SIDE (07) - BRAKES

Артикул

Название

Примечание

Количество

37

R29593

FLANGED BEARING,1.125" OD x 0.562"

BEARING flange, pivot shaft

4шт.

38

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

hex, 1/4 NC x 3/4 inch

8шт.

39

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

8шт.

40

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

8шт.

41

H435621

SPRING

latch pivot, right-hand, if used, not required

1шт.

42

H435620

SPRING

latch pivot, left-hand, if used, not required

1шт.

43

D127347

SPRING

cable connecting

2шт.

44

H169300

CLEVIS

adjustable, 1/4 inch NC, spring to lower cable

2шт.

45

D23693

AXLE PIN

PIN clevis, 1/4 x 1 inch long, Serial Range: yoke-spring

2шт.

46

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

RETAINER clevis pin, special

2шт.

47

425-144

JAM NUT,Jam, 1/4"-20, G5

hex, jam, 1/4 inch NC

2шт.

48

H438180

CABLE

at pulleys, lower

2шт.

49

D124465

PULLEY,54mm OD

cable

2шт.

50

D95743

SPACER

cable pulley, Replaces: P/N D95559 spacer

2шт.

51

D124466

RETAINER

cable pulley

2шт.

52

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

2шт.

53

231-5146

FLANGE NUT,3/8"-16

2шт.

54

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjusting, Cable end to boot #4, 0.25/0.62 Type M Worm

2шт.

55

D70018

BOOT

rubber, seal

2шт.

56

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, , Adjustable, Boot at latch pin, If used #24, 1.06/2.00 Type F Worm

2шт.

57

100-21100

SNAP RING,1.00", Int, #100

Ring, Snap, 1.00", Int, #100, Serial Range: -JAF0037825

2шт.

58

495-81108

WASHER,.281" x 1" x .109"

flat, 9/32 x 1 x 1/8 inch

2шт.

59

D91040

SPRING

at latch pin

2шт.

60

H435266

SPACER

tubular, latch pin

2шт.

61

425-144

JAM NUT,Jam, 1/4"-20, G5

hex, jam, 1/4 inch NC

2шт.

62

D64228

PIN,25.45mm OD x 53.34mm L

latch

2шт.

H675011

SET

KIT service, parking brake tube, includes instruction sheet, Serial Range: -JAF0037911

2шт.

63

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

2шт.

64

H438614

CLIP

retaining, Start Serial: JAF0037825

1шт.

65

495-81108

WASHER,.281" x 1" x .109"

flat, 9/32 x 1 x 1/8 inch

1шт.

66

T28521

SPACER

clip, latch pin, Replaces: P/N D78234 spacer, Start Serial: JAF0037825\

2шт.

67

NSS

NOT SOLD SEPARAT

TUBE brake, order P/N H675011 kit

1шт.

68

D136906

BRACKET

support

1шт.

69

NSS

NOT SOLD SEPARAT

PLATE reinforcing, not shown, order P/N H675011 kit

1шт.

109017A1

SET

KIT service, parking brake tube, includes instruction sheet, Start Serial: JAF0037911

2шт.

70

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

2шт.

71

H438614

CLIP

retaining

1шт.

72

D70742

SPACER

SLEEVE spring

1шт.

73

495-81108

WASHER,.281" x 1" x .109"

flat, 9/32 x 1 x 1/8 inch

1шт.

74

108918A1

TUBE,25.91 mm ID, 44.4 mm OD

brake

1шт.

75

D136906

BRACKET

support

1шт.

120923A1

SET

KIT service, parking brake rod, includes instruction sheet, see parts list Figure 6-12

1шт.

Выбрано товаров: 42
