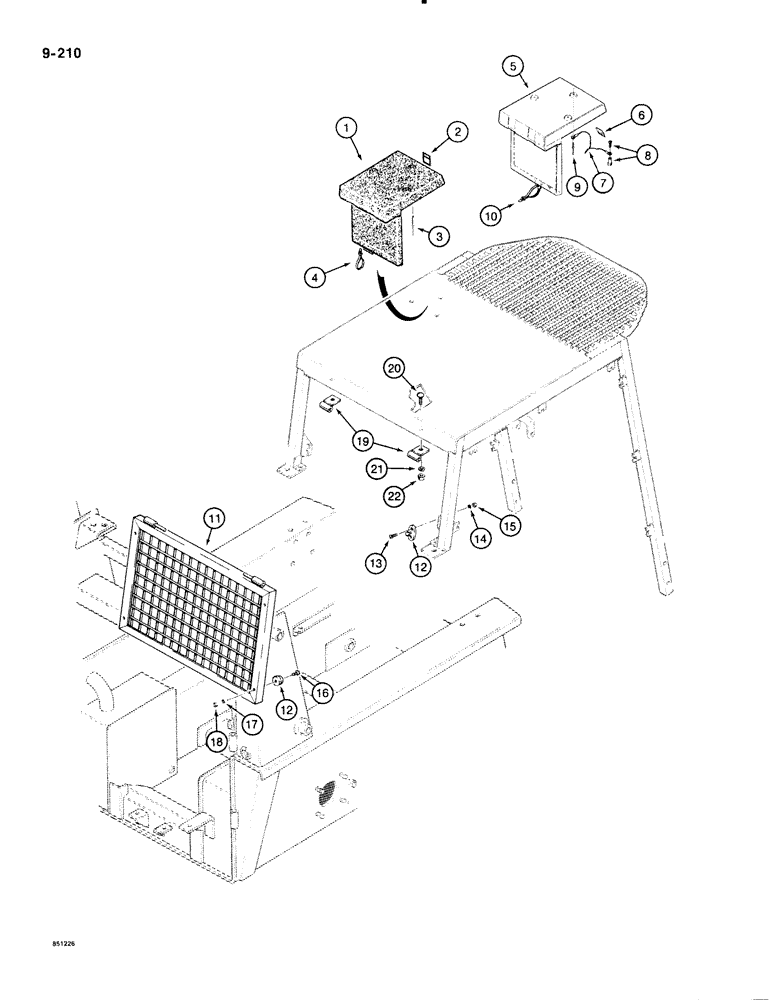

Запчасти Case 1835B (9-210) - OPERATORS MANUAL BOX AND REAR GUARD (09) - CHASSIS/ATTACHMENTS

1

R38893

CASE

BOX operators manual, if used, Includes: Ref. 2

1шт.

2

N7120

LATCH

operators manual box, if used

1шт.

3

151-522

RIVET,Pop, 3/16" x .575"

POP RIVET operators manual box

3шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

1шт.

5

R46464

CASE

BOX operators manual, if used, Includes: Ref. 6

1шт.

6

N7189

BEARING

LATCH used with R46464 operators manual box, if used

1шт.

7

R46465

CABLE,36mm L

CORD manual retaining, used with R46464 manual box

1шт.

8

R46463

SCREW,0.18" x 0.75"

special, manual retaining, used with R46464 manual box

1шт.

9

151-522

RIVET,Pop, 3/16" x .575"

POP RIVET operators manual box

3шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

1шт.

11

D91407

GUARD

SCREEN rear, guard

1шт.

12

F93104

HOLDER

guard

2шт.

13

171-212

SCREW,Sl Flat Hd, #10 - 24 x 5/8"

MACHINE SCREW flat head, No. 10 - 24 NC x 5/8", plated

4шт.

14

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

15

129-17

NUT,Hex, #10 - 24

NUT hex, No. 10 - 24 NC, plated

4шт.

16

173-207

X

MACHINE SCREW round head, 1/4" - 20 NC x 5/8", plated

2шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

18

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

19

F93322

HINGE

screen, rear, guard

2шт.

20

111-520

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G2

1/2" - 13 NC x 1-1/4, plated

2шт.

21

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

22

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.
