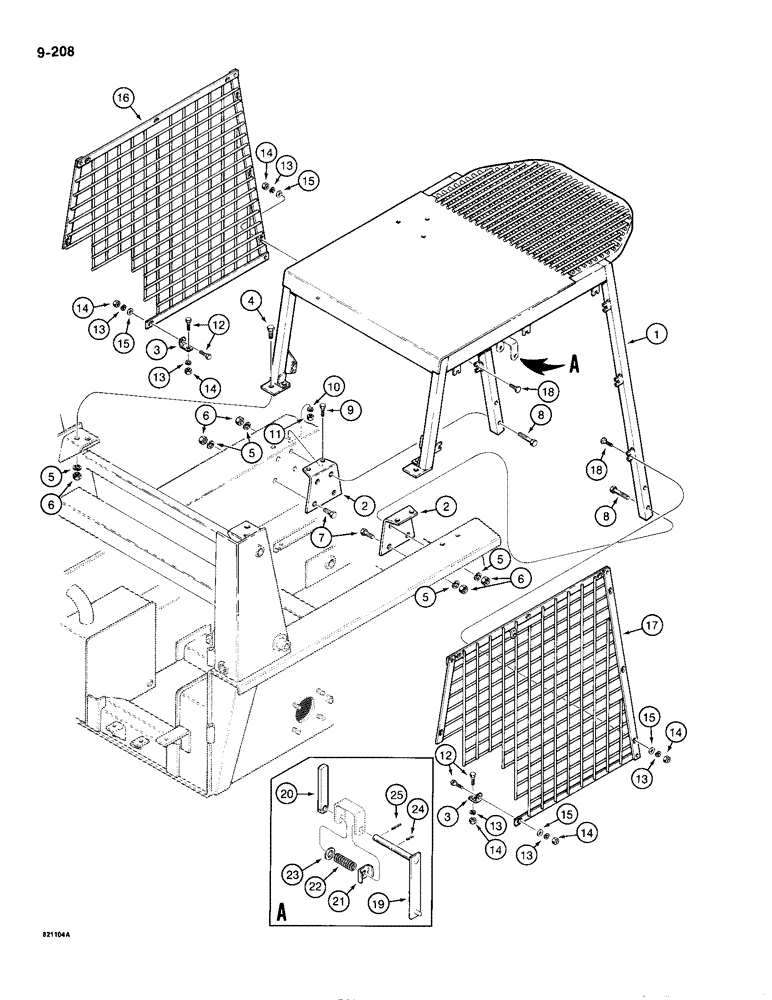

Запчасти Case 1835B (9-208) - ROPS CANOPY AND SIDE SCREENS (09) - CHASSIS/ATTACHMENTS

1

D100831

ROPE

FRAME ASSEMBLY ROPS canopy, Includes: Ref. 2-25

1шт.

2

D94414

BRACKET

SUPPORT ROPS, fender

2шт.

3

F42810

BRACKET

side screen, lower

2шт.

4

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

6

129-105

NUT,Hex, 1/2" - 13, Gr 5

12шт.

7

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

8

113-426

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

4шт.

9

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

12

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

17шт.

14

9635082

NUT,5/16" - 18, Gr 5

17шт.

15

195-521

WASHER,5/16", SAE

flat, 5/16", plated

15шт.

16

D90013

SCREEN

side, left hand

1шт.

17

D90012

SCREEN

side, right hand

1шт.

18

111-202

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

BOLT hex head, 5/16" - 18 NC x 1", plated

13шт.

19

D80018

ARM

support strut

1шт.

20

D89708

LEVER

support strut

1шт.

21

D80803

BRACKET

support strut

1шт.

22

D79941

SPRING

support strut

1шт.

23

195-2028

WASHER,.391" x 5/8" x .065"

flat, 3/8"

1шт.

24

138-317

LOCK PIN,1/8" x 5/8", Slotted

PIN, 1/8" x 5/8", Slotted

1шт.

25

138-305

LOCK PIN,1/8" x 1", Slotted, Stainless

Pin, 1/8" x 1, Slotted, Stainless

1шт.
