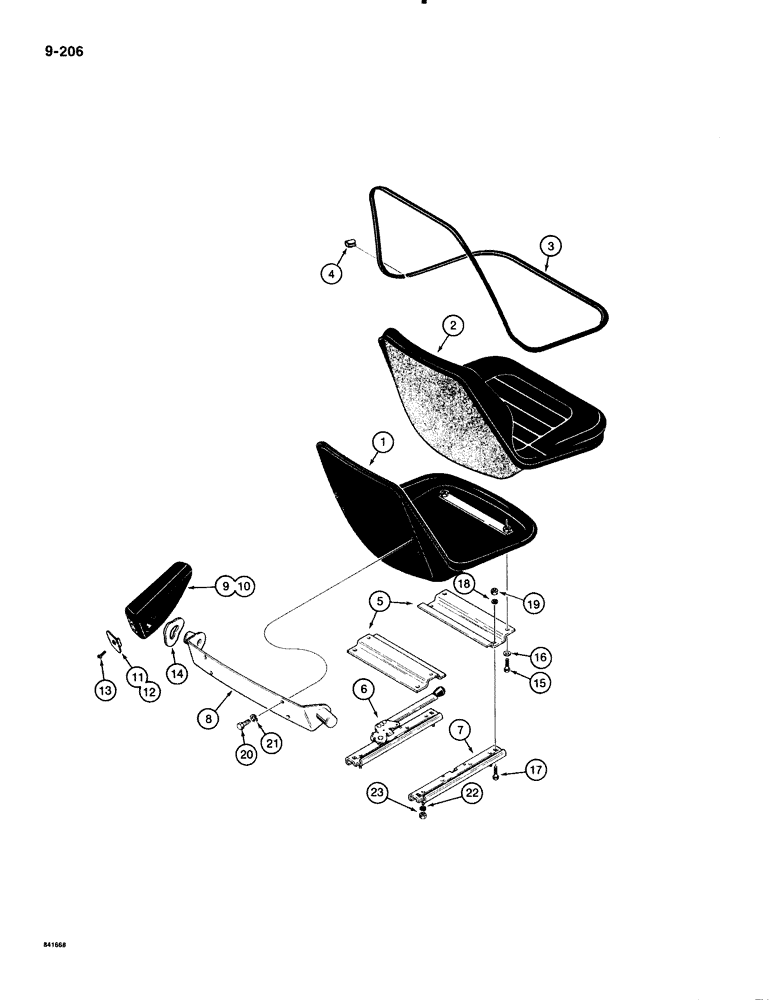

Запчасти Case 1835B (9-206) - DELUXE OPERATORS SEAT (09) - CHASSIS/ATTACHMENTS

D82233

SEAT

ASSEMBLY black, deluxe, with armrests, no longer available, order D124517 brown seat assembly for service, if used

1шт.

D124517

SEAT ASSY.

SEAT ASSEMBLY brown, deluxe, with armrests, if used, Includes: Ref. 1-21

1шт.

1

N6672

SEAT

SHELL seat

1шт.

2

N6673

CUSHION ASSY.

CUSHION seat, black, if used

1шт.

2

N9031

CUSHION

seat, brown, if used

1шт.

3

N9034

SEAT

RETAINER seat cushion to shell, extruded plastic strip

1шт.

4

N6674

CLIP

seat

1шт.

5

N6675

BRACKET

slide mounting

2шт.

6

S114284

SLIDE

seat adjuster, with handle

1шт.

7

N6676

RAIL

SLIDE seat, non-adjusting

1шт.

8

N6677

BRACKET

armrest

1шт.

9

A45488

ARMREST

left hand, black, if used

1шт.

9

N9032

ARM

REST left hand, brown, if used

1шт.

10

A45489

ARMREST

right hand, black, if used

1шт.

10

N9033

KIT

ARMREST right hand, brown, if used

1шт.

11

A45583

PLATE

cover, left hand

1шт.

12

A45584

COVER

PLATE cover, right hand

1шт.

13

61-3256

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW, , Armrest Hex Soc Hd, 1/4"-20 x 3/8"

2шт.

14

A47352

WASHER

spring

2шт.

15

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

16

195-103

WASHER,5/16"

flat, , plated 5/16"

4шт.

17

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

19

9635082

NUT,5/16" - 18, Gr 5

4шт.

20

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

See Fig. 9-204 for the standard operators seat.

1шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

22

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

23

9635082

NUT,5/16" - 18, Gr 5

4шт.
