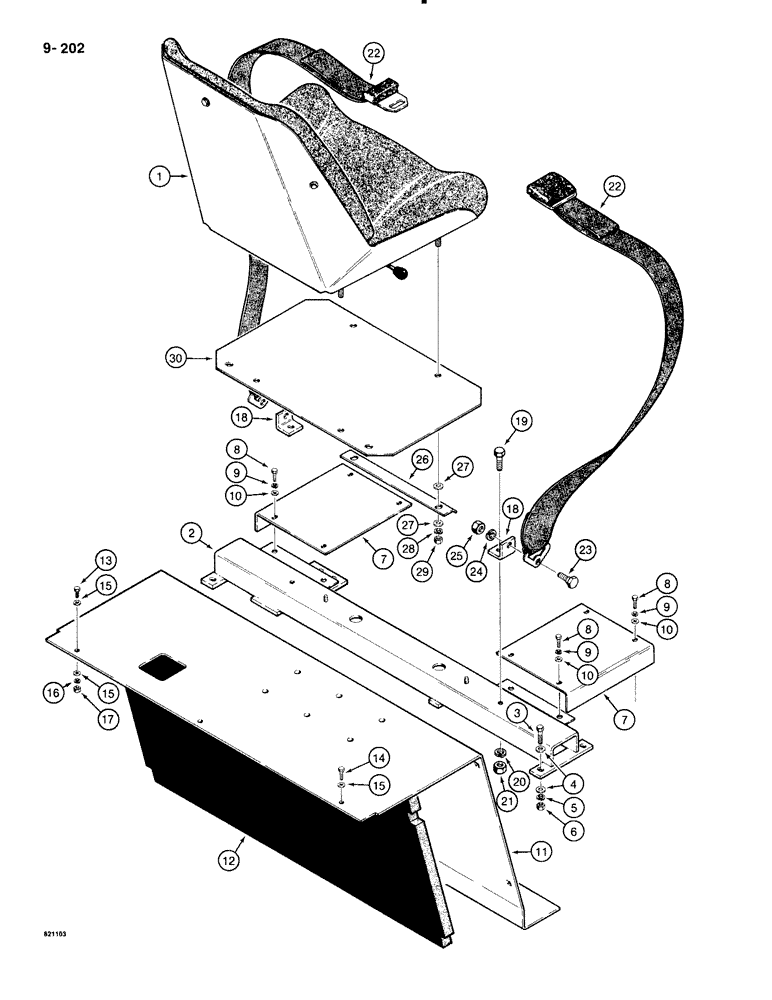

Запчасти Case 1835B (9-202) - SEAT, SEAT BELT, AND HEAT SHIELD (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

SEAT ASSEMBLY operators, standard, parts list Fig. 9-204

1шт.

1

REF

INSTRUCTION

SEAT ASSEMBLY operators, deluxe, parts list Fig. 9-206, not shown

1шт.

2

D94302

SUPPORT

seat

1шт.

3

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

4

195-525

WASHER,3/8", SAE

flat, 3/8", plated

8шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

7

D63873

PANEL

cover

2шт.

8

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

10

195-521

WASHER,5/16", SAE

flat, 5/16", plated

8шт.

11

D123097

SHIELD

HEAT SHIELD Includes decals and pad Ref. 12, see Fig. 9-214 or 9-216 for decals

1шт.

12

D94009

PAD

insulation, heat shield

1шт.

13

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

14

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

15

195-521

WASHER,5/16", SAE

flat, 5/16", plated

6шт.

16

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

17

9635082

NUT,5/16" - 18, Gr 5

3шт.

18

D54655

BRACKET

seat belt mounting

2шт.

19

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

2шт.

20

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

21

129-104

NUT,7/16"-14, G5

2шт.

22

D133870

SAFETY BELT

SEAT BELT- 2", 51 mm wide, if used

1шт.

22

D85816

SAFETY BELT

SEAT BELT - 3", 76 mm wide, if used

1шт.

23

F42236

STEP BOLT

SHOULDER BOLT special, seat belt mounting

2шт.

24

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

25

425-117

NUT,7/16"-20, G5

hex, 7/16" - 20 NF, plated

2шт.

26

D72913

CLIP

STRIP seat mounting

1шт.

27

195-521

WASHER,5/16", SAE

flat, 5/16", plated

4шт.

28

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

29

9635082

NUT,5/16" - 18, Gr 5

4шт.

30

D59768

PLATE

seat

1шт.
