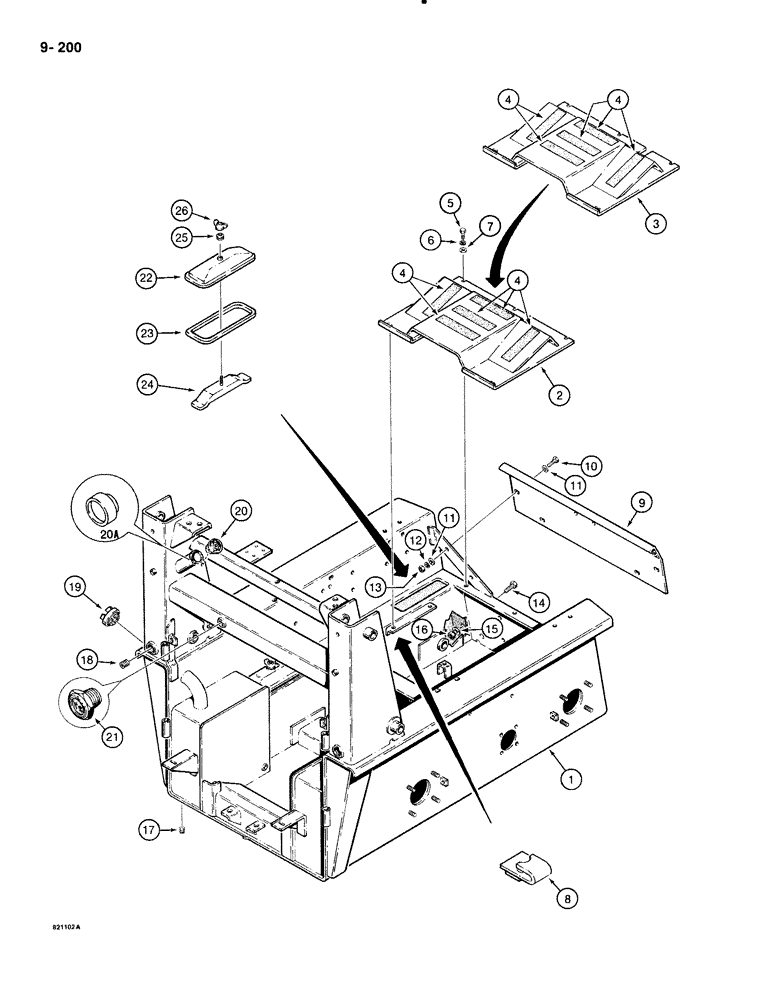

Запчасти Case 1835B (9-200) - CHASSIS (09) - CHASSIS/ATTACHMENTS

1

D122762

X

CHASSIS 1835B Uni-Loader, before PIN 9866541, for service order (1) D125636 chassis and (1) D124064 engine mount, see Fig. 2-24

1шт.

1

D125636

FRAME

CHASSIS 1835B Uni-Loader, used on PIN 9866541 and after

1шт.

2

D124390

PLATE

floor, models without auxiliary hydraulics

1шт.

3

D124395

PLATE

floor, models with auxiliary hydraulics

1шт.

4

D55216

PAD,2" x 9"

PAD nonskid, floor plates

5шт.

5

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

5шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

5шт.

7

195-21

WASHER,5/16"

- flat, , plated 5/16"

5шт.

8

131-636

SPRING NUT,J, Ret, 5/16"-18

J-type, 5/16" - 18 NC

2шт.

9

D75157

GUARD

foot

1шт.

10

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

11

195-525

WASHER,3/8", SAE

flat, 3/8", plated

8шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

14

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

15

T42588

WASHER

special, sealing, 1/2"

4шт.

16

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

17

221-844

PLUG,Hex Soc, 1/2"-14

square socket head, 1/2" NPT

5шт.

18

221-1847

PLUG

square socket head, 1-1/4" NPT

2шт.

19

D93757

CAP

fuel, gas and diesel

1шт.

20

D93981

FILLER CAP

CAP pipe, hydraulic oil

1шт.

20a

N8796

PLUG

BREATHER hydraulic oil fill tube

1шт.

21

D63875

PLUG

GAUGE sight

1шт.

22

D126346

COVER

chain access

1шт.

Part of kit, P/N D128543

1шт.

23

D90172

GASKET

chain access cover, flat, order D128543 kit, see below

1шт.

23

D125621

GASKET

chain access cover, double lip, not shown

1шт.

Part of kit, P/N D128543

1шт.

24

D86160

COVER

RETAINER cover

1шт.

25

D70868

WASHER,9.53mm ID x 19.05mm OD x 3.05mm Thk

special, sealing, 3/8"

1шт.

26

129-410

WING NUT,3/8"-16

3/8" - 16 NC, plated

1шт.

D128543

SET

KIT chain access cover and gasket, Includes: Ref. 22, 23

1шт.
