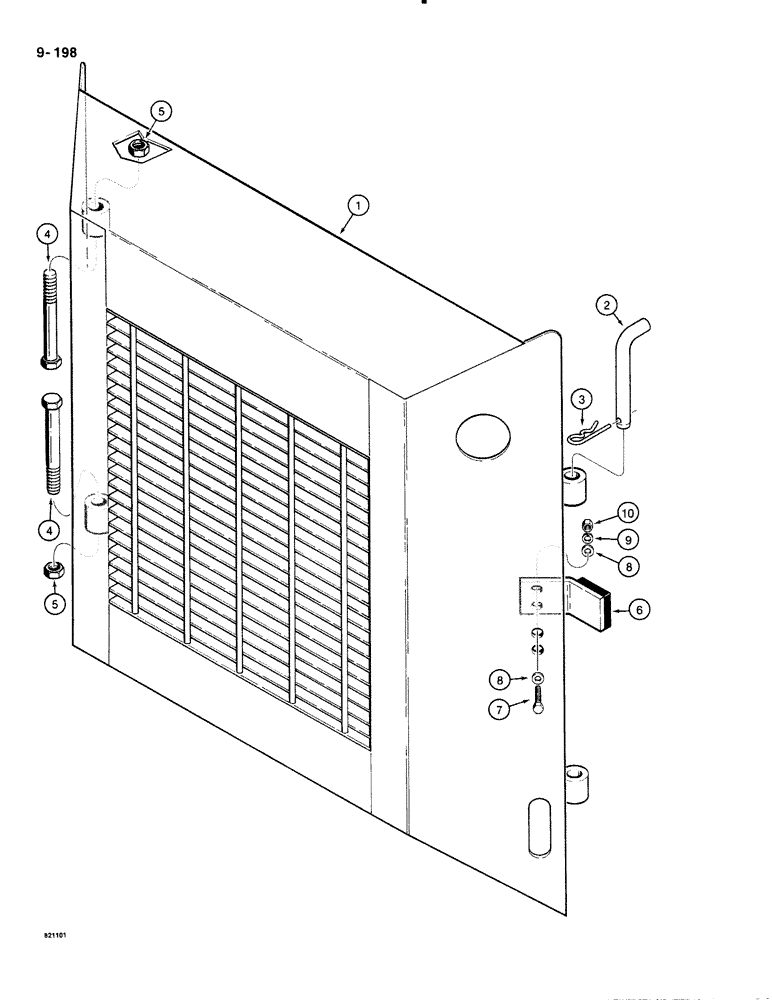

Запчасти Case 1835B (9-198) - REAR DOOR (09) - CHASSIS/ATTACHMENTS

1

D87361

DOOR

rear

1шт.

2

D89679

HINGE

PIN hinge

2-4шт.

3

136-164

COTTER PIN,Int, 5/16" x .120"

HAIR PIN pin retaining

2-4шт.

4

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

If used Hex, 5/8"-11 x 5 1/2", G5

2шт.

5

131-1105

LOCK NUT,5/8"-11, GB

NUT, LOCK, , If used 5/8"-11, GB

2шт.

6

D92232

BRACKET

door, used on models with noise control option

1шт.

7

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

Used with D92232 bracket Hex, 5/16"-18 x 1 1/4", G5

2шт.

8

195-521

WASHER,5/16", SAE

flat, 5/16", plated, used with D92232 bracket

4шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Used with D92232 bracket 5/16"

2шт.

10

9635082

NUT,5/16" - 18, Gr 5

Used with D92232 bracket 5/16"-18, G5

2шт.
