(9-192) - BUCKETS, 6" (152 MM) CUTTING EDGE, DIRT BUCKET, UTL BUCKET, BUCKET TEETH, LOADER ATTACH BAR MOUNTING

Запчасти Case 1835B (9-192) - BUCKETS, 6" (152 MM) CUTTING EDGE, DIRT BUCKET, UTL BUCKET, BUCKET TEETH, LOADER ATTACH BAR MOUNTING (09) - CHASSIS/ATTACHMENTS

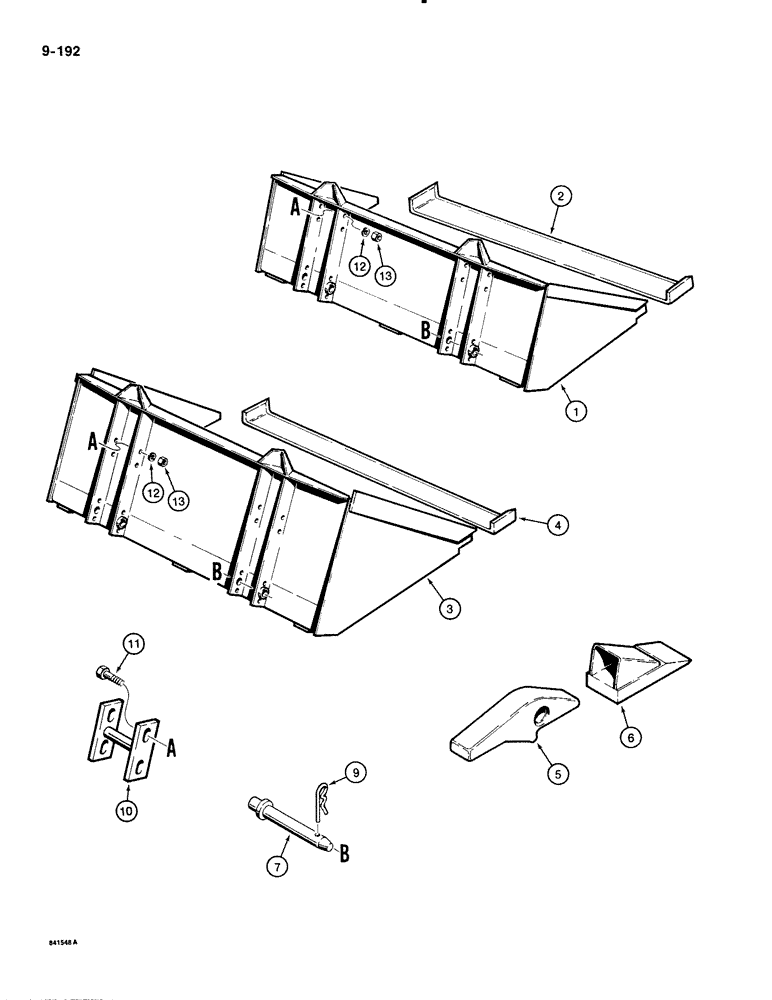

Схема запчастей Case 1835B - (9-192) - BUCKETS, 6" (152 MM) CUTTING EDGE, DIRT BUCKET, UTL BUCKET, BUCKET TEETH, LOADER ATTACH BAR MOUNTING (09) - CHASSIS/ATTACHMENTS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

D101466

BUCKET dirt, 60", 1524 mm wide, machinery item, see Fig. 2 for ordering, uses 6", 152 mm cutting edge, Includes: Ref. 1-2 , dirt bucket

1шт.

See Fig. 9-190 for buckets equipped with a 3", 76 mm cutting edge.

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET dirt, 60", 1524 mm wide, dirt bucket

1шт.

2

D125853

EDGE

CUTTING EDGE bucket, 6", 152 mm, dirt bucket

1шт.

See Fig. 9-190 for buckets equipped with a 3", 76 mm cutting edge.

1шт.

D101562

BUCKET utility, 60", 1524 mm wide, machinery item, see Fig. 2 for ordering, uses 6", 152 mm cutting edge, Includes: Ref. 3-4, utility bucket

1шт.

See Fig. 9-190 for buckets equipped with a 3", 76 mm cutting edge.

1шт.

3

NSS

NOT SOLD SEPARAT

BUCKET utility, 60", 1524 mm wide,utility bucket

1шт.

4

D125853

EDGE

CUTTING EDGE bucket, 6", 152 mm, utility bucket

1шт.

See Fig. 9-190 for buckets equipped with a 3", 76 mm cutting edge.

1шт.

D127919

TOOTH

ASSEMBLY bucket, used only on dirt buckets with a 6", 152 mm cutting edge, Includes: Ref. 5-6, bucket teeth

8шт.

See Fig. 9-190 for buckets equipped with a 3", 76 mm cutting edge.

1шт.

5

D127918

SHANK, BUCKET TOOTH

SHANK tooth, bucket teeth

1шт.

6

T41166

TOOTH

POINT tooth, bucket teeth

1шт.

7

D132172

PIN

loader attachment bar to bucket, mounting

2шт.

See Fig. 9-190 for buckets equipped with a 3", 76 mm cutting edge.

1шт.

8

RESERVED

1шт.

9

136-162

HAIR PIN COTTER,Int, 1/2" x .250"

HAIR PIN loader attachment bar pin retaining, Loader attachment bar mounting

2шт.

10

D61308

PIN

BRACKET upper, loader attacment bar mounting

2шт.

11

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Loader attachment bar mounting Hex, 1/2"-13 x 1 1/4", G5, Full Thd

8шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Loader attachment bar mounting 1/2"

8шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

Loader attachment bar mounting 1/2"-13, G5

8шт.
