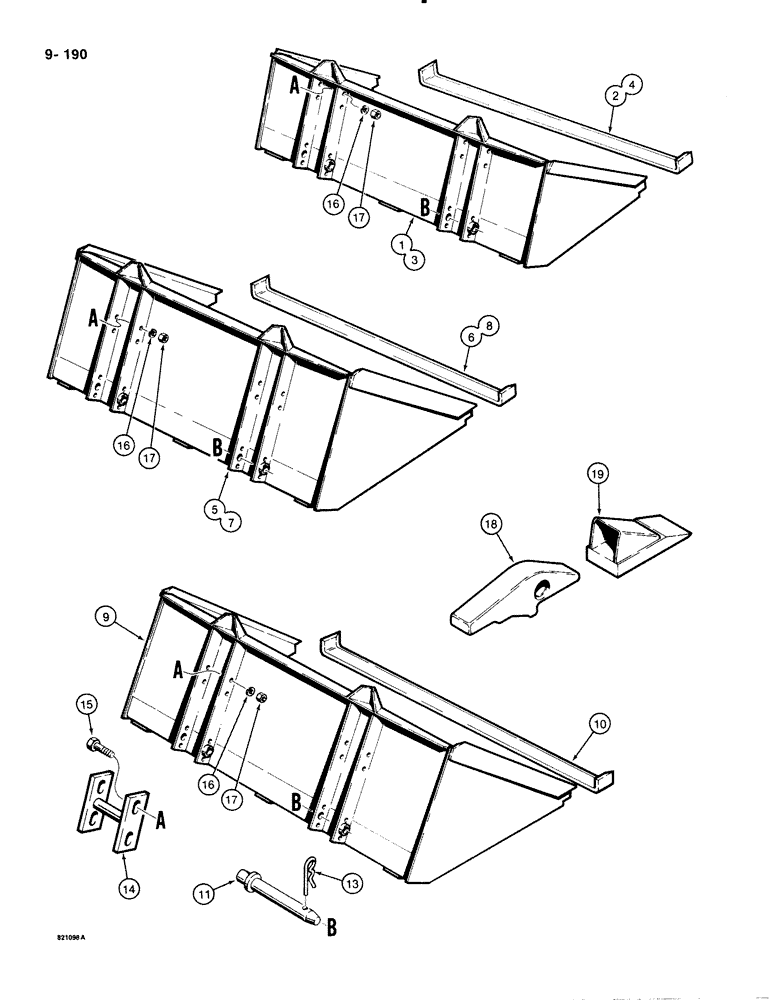

Запчасти Case 1835B (9-190) - BUCKETS, 3" (76 MM) CUTTNG EDG, DIRT BUCK, UTL BUCK, LT MATL BUCK, LOADR ATTCH BAR MTING, BUCK TEETH (09) - CHASSIS/ATTACHMENTS

1

D17282

BUCKET dirt, 54", 1372 mm wide, machinery item, see Fig. 2 for ordering, Includes: Ref. 2, dirt buckets

1шт.

2

D61271

EDGE, CUTTING

CUTTING EDGE bucket, dirt buckets

1шт.

3

D17283

BUCKET dirt, 60", 1524 mm wide, machinery item, see Fig. 2 for ordering, uses 3" cutting edge, Includes: Ref. 4, dirt buckets

1шт.

See Figure 9-192 for buckets equipped with a 6", 152 mm cutting edge.

1шт.

4

D61289

EDGE, CUTTING

CUTTING EDGE bucket, 3", 76 mm, 59" ID, dirt buckets

1шт.

See Figure 9-192 for buckets equipped with a 6",152 mm cutting edge.

1шт.

5

D17285

X

BUCKET utility, 54", 1372 mm wide, machinery item, see Fig. 2 for ordering, Includes: Ref. 6, utility buckets

1шт.

6

D61271

EDGE, CUTTING

CUTTING EDGE bucket, utility buckets

1шт.

7

D17286

BUCKET utility, 60", 1524 mm wide, machinery item, see Fig. 2 for ordering, uses 3", 76 mm cutting edge, Includes: Ref. 8, utility buckets

1шт.

See Figure 9-192 for buckets equipped with a 6",152 mm cutting edge.

1шт.

8

D61289

EDGE, CUTTING

CUTTING EDGE bucket, 3", ID 59", utility buckets

1шт.

See Figure 9-192 for buckets equipped with a 6", 152 mm cutting edge.

1шт.

9

D17284

X

BUCKET light material, 66", 1676 mm wide, machinery item see Fig. 2 for ordering, Includes: Ref. 10, light material bucket

1шт.

10

D61597

EDGE, CUTTING

CUTTING EDGE bucket, light material bucket

1шт.

11

D132172

PIN

loader attachment bar to bucket, loader attachment bar mounting

2шт.

12

RESERVED

1шт.

13

136-162

HAIR PIN COTTER,Int, 1/2" x .250"

HAIR PIN loader attachment bar pin retaining,loader attachment bar mounting

2шт.

14

D61308

PIN

BRACKET upper, Loader attachment bar mounting

2шт.

15

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Loader attachment bar mounting Hex, 1/2"-13 x 1 1/4", G5, Full Thd

8шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Loader attachment bar mounting 1/2"

8шт.

17

129-105

NUT,Hex, 1/2" - 13, Gr 5

Loader attachment bar mounting 1/2"-13, G5

8шт.

T40472

TOOTH

ASSEMBLY bucket, use only on dirt buckets with a 3", 76 mm cutting edge, Includes: Ref. 18-19, bucket teeth

8шт.

See Figure 9-192 for buckets equipped with a 6", 152 mm cutting edge.

1шт.

18

T41165

TOOTH

SHANK tooth, bucket teeth

1шт.

19

T41166

TOOTH

POINT tooth, bucket teeth

1шт.
