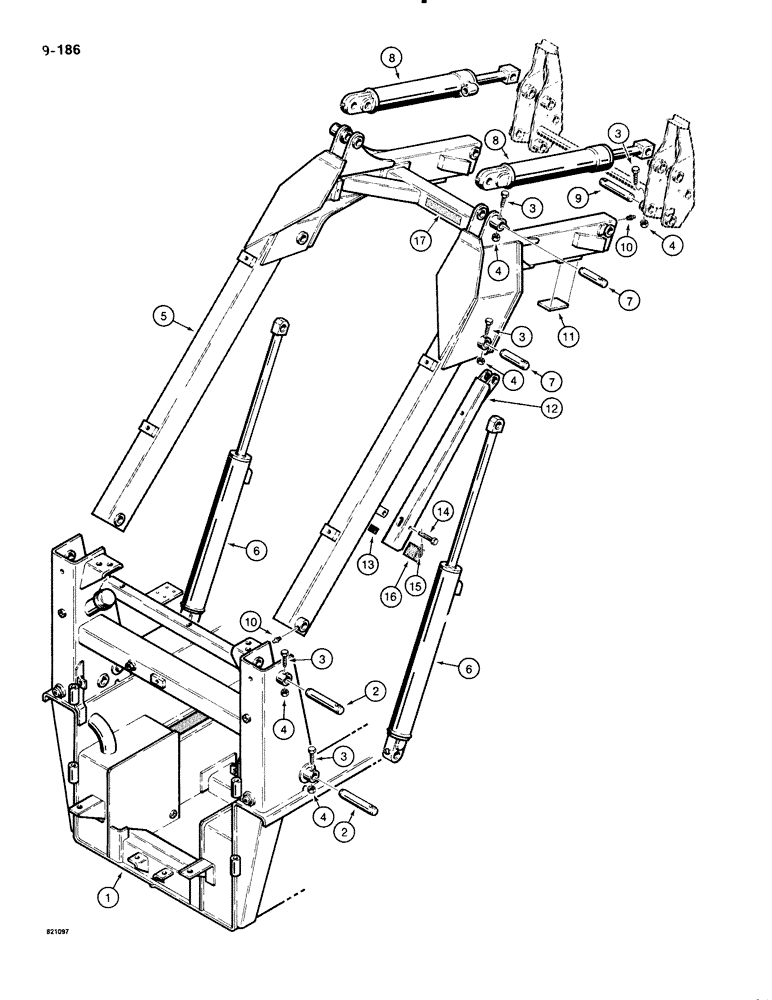

Запчасти Case 1835B (9-186) - LOADER LIFT FRAME (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CHASSIS 1835B Uni-Loader, see Fig. 200

1шт.

2

D57865

LARGE PIN

PIN upright, lift arm and closed end cylinder mounting

4шт.

3

26-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

hex head, 3/8" - 16 NC x 2-1/4", grade 8

12шт.

4

131-666

LOCK NUT,3/8"-16, GB

NUT hex, self locking, 3/8" - 16 NC, plated

12шт.

5

D90318

FRAME

loader lift

1шт.

6

G106818

CYLINDER

lift, parts list Fig. 8-178

2шт.

7

D57864

PIN

lift and bucket cylinders mounting

4шт.

8

G103407

CYLINDER

bucket, parts list Fig. 8-180

2шт.

8

118110A1R

REMAN-HYD CYLINDER

1835B CASE UNI LOADER SKID STEER LOADER (NORTH AMERICA), Reman for New PN G103407

2шт.

8

118110A1C

CORE-HYD CYLINDER

Return Number

2шт.

9

D55925

PIN,25.4mm OD x 165.1mm L

bucket cylinder mounting

4шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING straight, 1/8" NPT

4шт.

11

NSS

NOT SOLD SEPARAT

SPACER lift arm stop

1шт.

12

D123820

STAY

STRUT lift arm support

1шт.

Ref #12A - D124937 Strut S/N 17168327 and above 03/21/96

1шт.

Ref #12 - To S/N 171683326 03/21/96

1шт.

13

D123821

PAD

lift arm

1шт.

14

S10782

CLEVIS

PIN strut lock

1шт.

15

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

1шт.

16

D89804

STRIP

rubber, strut

2шт.

17

D55216

PAD,2" x 9"

PAD non-skid

1шт.
