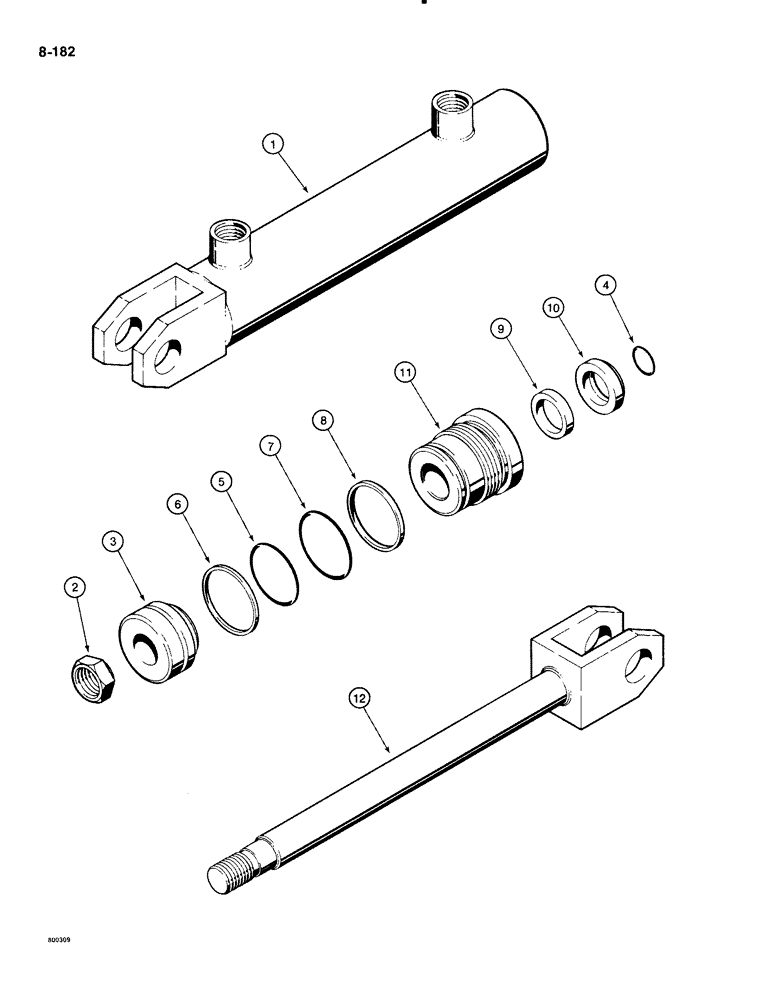

Запчасти Case 1835B (8-182) - D61075 GRAPPLE CYLINDER (08) - HYDRAULICS

D61075

CYLINDER

grapple, 2" ID x 8", 50 mm ID x 203 mm stroke, Includes Ref. 1-12

2шт.

1

D61010

TUBE

cylinder

1шт.

2

25-1512

JAM NUT,Jam, 3/4"-10, G5

hex, 3/4" - 16 NF

1шт.

3

D60996

PISTON

tube

1шт.

4

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

piston, inner

1шт.

vPart of seal kit P/N D61006

1шт.

5

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

piston, outer

1шт.

Part of seal kit P/N D61006

1шт.

6

D60995

RING

BACKUP RING O-ring

1шт.

Part of seal kit P/N D61006

1шт.

7

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

gland

1шт.

Part of seal kit P/N D61006

1шт.

8

A35884

WASHER

BACKUP RING gland O-ring

1шт.

Part of seal kit P/N D61006

1шт.

9

D60999

WIPER SEAL

WIPER U-cup, inner gland

1шт.

Part of seal kit P/N D61006

1шт.

10

D60997

WIPER SEAL

WIPER rod, outer gland

1шт.

Part of seal kit P/N D61006

1шт.

11

D61002

GLAND

cylinder

1шт.

12

D61011

ROD

cylinder, 1", 25 mm O.D.

1шт.

D61006

GASKET KIT

KIT - seal, Includes: Ref. 4, 5, 6, 7, 8, 9 and 10

1шт.
