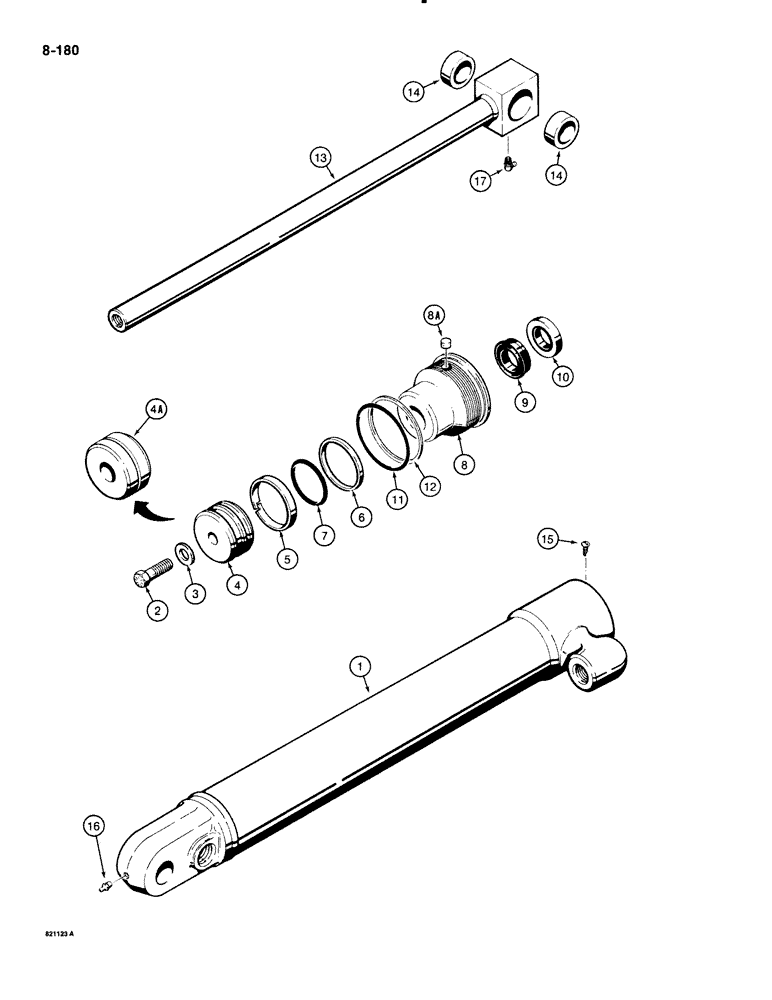

Запчасти Case 1835B (8-180) - G103407 LOADER BUCKET CYLINDER (08) - HYDRAULICS

G103407

CYLINDER

ASSEMBLY bucket, 2-1/2", 63 mm ID x 15-27/32", 402 mm ID stroke, Includes: Ref. 1-17

2шт.

118110A1R

REMAN-HYD CYLINDER

1835B CASE UNI LOADER SKID STEER LOADER (NORTH AMERICA), ASSEMBLY, Reman for New PN G103407

2шт.

118110A1C

CORE-HYD CYLINDER

Return Number

2шт.

1

G103465

TUBE,63.5 mm DIA x 572.26 mm L

cylinder

1шт.

2

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

3

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

special

1шт.

4

G33138

PISTON,62.94mm Bore, 31.85mm Rod, 25.4mm W

cylinder, double groove, no longer available, order G104098 piston for service

1шт.

4a

G104098

PISTON

cylinder, single groove, service replacement for G33138 piston

1шт.

5

G100714

RING

wear, piston, used with G33138 piston

1шт.

Part of seal kit P/N G109476

1шт.

6

G33140

RING,59.68mm ID x 64.26mm OD x 3.94mm Thk

SEAL piston, outer

1шт.

Part of seal kit P/N G109476

1шт.

7

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

piston, if used

1шт.

Part of seal kit P/N G109476

1шт.

G103568

GLAND

ASSEMBLY cylinder, Includes: Ref. 8-12

1шт.

8

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

8a

G102569

PLUG

nylon, thread locking, gland, if used

1шт.

9

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

U-CUP SEAL piston rod, wide

1шт.

Part of seal kit P/N G109476

1шт.

9

G100775

SEAL

U-CUP SEAL - piston rod, service option - severe heat or cold

1шт.

10

D95141

WIPER SEAL

WIPER piston rod, outer

1шт.

Part of seal kit P/N G109476

1шт.

11

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

gland

1шт.

Part of seal kit P/N G109476

1шт.

12

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

BACKUP RING gland O-ring

1шт.

Part of seal kit P/N G109476

1шт.

13

G103408

PISTON ROD

ROD piston, 1-1/4", 32 mm diameter, Includes: Ref. 14

1шт.

14

G35361

BUSHING,25.7mm ID x 31.82mm OD x 15.7mm L

rod

2шт.

15

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW self tapping, No. 8 - 32 NC x 3/8", if used

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING straight, 1/8" NPT

1шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

G109476

GASKET KIT

KIT seal, Includes: Ref. 5, 6, 7, 9, 10, 11, 12, and Includes G109092 narrow seal not used on this cylinder

1шт.
